20S EVO

Motorcycle Bluetooth

Communication System

HD Speakers

User's Guide

www.sena.com

Need help?

Do you have a question about the 20S-EVO-11 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sena 20S-EVO-11

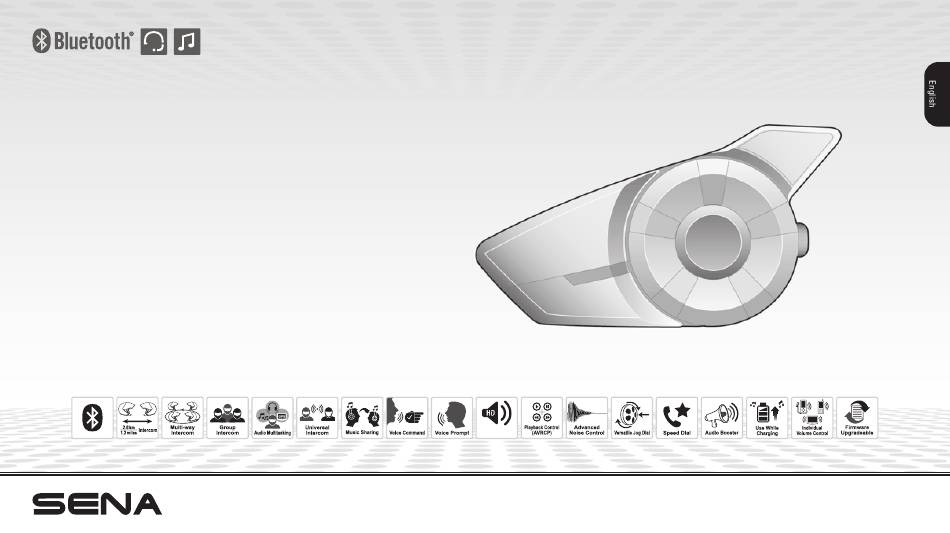

Page 1 20S EVO Motorcycle Bluetooth ® Communication System HD Speakers User’s Guide www.sena.com...
Page 2 ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. iPhone, iPod touch are the registered trademark of Apple Inc. Zumo™ is a trademark of Garmin Ltd. or its subsidiaries. TomTom™ is the trademark or registered trademark...
Page 3 13 INTERCOM PAIRING .................... 29 4.6 Software ..........................14 13.1 Pairing with Other 20S EVO Headsets for Intercom Conversation ........29 13.2 Pairing with Other Sena Headset Models for Intercom Conversation .........31 PAIRING THE 20S EVO WITH BLUETOOTH DEVICES ........15 5.1 Mobile Phone Pairing ......................15 14 TWO-WAY &...
Page 4 20S EVO 17 UNIVERSAL INTERCOM ..................36 17.1 Universal Intercom Pairing ....................36 17.2 Two-way Universal Intercom ....................37 17.3 Three-way Universal Intercom ....................38 17.4 Four-way Universal Intercom ....................39 18 REMOTE CONTROL ..................... 41 19 FUNCTION PRIORITY ................... 41 20 20S EVO CONFIGURATION SETTING ..............42 20.1 Assigning Speed Dial ......................43 20.2 Enabling/Disabling Audio Multitasking .................43 20.3 Setting Intercom-audio Overlay Sensitivity ................44...
Page 5 • Firmware upgradeable Please read this user’s guide carefully before using the headset. Also check www.sena.com for the latest version of the User’s Guide and * in open terrain additional information related to Sena Bluetooth products.
Page 6 20S EVO 2 PACKAGE CONTENTS Headset Main Unit Phone Button • Answer and end a mobile phone call • Speed dial Status LED • Call transfer between mobile phone and headset • Enter into mobile phone pairing mode • Enter into Bluetooth stereo device pairing mode •...
Page 7 20S EVO Universal Helmet Clamp • Wired Boom Microphone Speaker Port Microphone Port • Wired Microphone • USB Power & Data Cable Quick Release Button Earbud Port • 2.5 to 3.5mm Stereo Audio Cable Static Boom Microphone MP3 Port • Non-Bluetooth audio device •...
Page 8 20S EVO • Rubber Pads 3 INSTALLING THE 20S EVO ON YOUR HELMET • Hook and Loop Fasteners for Speakers Helmet Installation To securely install the 20S EVO on the helmet, please follow this • Hook and Loop Fastener for Boom Microphone procedure.
Page 9 20S EVO 2. Depending on the size and shape of your helmet, you may need 4. Place the helmet speakers along with the hook and loop fasteners, to change the thickness of the rubber pad between the clamp centered to your ear, in the ear pockets of the helmet. plates.
Page 10 Even though the glued surface mounting adapter is provided for 1. Remove the speaker unit from the speaker port. convenience, Sena does not assume any responsibility for use of it. Users 2. Remove the back plate of the clamp unit completely.
Page 11 20S EVO 3. Two extra microphones are provided, a wired boom microphone and a wired microphone. Connect the one you need according to your helmet type. 4. Lock the microphone to the clamp by turning the lock clockwise. 5. Reattach the back plate to cover the microphone and the speaker port.
Page 12 It takes about 2.5 hours to be completely charged. Note: Any 3rd party USB charger can be used with Sena products if the charger is approved by either the FCC, CE, or IC.
Page 13 20S EVO Note: CAUTION The battery performance may be r educed over time with usage. 2. Battery life may vary depending on conditions, environmental factors, Please make sure to take off your 20S EVO-installed helmet while charging. functions of the product in use, and devices used with it. The headset automatically turns off during charging.
Page 14 Sena Motorcycles App MP3 music. So you can always maintain the preferred optimum volume By simply pairing your phone with your headset, you can use the Sena level for each audio source. Motorcycles App for quicker and easier set up and management.
Page 15 MP3 players, or motorcycle specific Bluetooth GPS navigation, PIN. and with other Sena Bluetooth headsets. This pairing operation is 4. The mobile phone confirms that pairing has completed and the only required once for each Bluetooth device. The headset remains 20S EVO is ready to use.
Page 16 20S EVO saying “Your headset is paired”. passcode is required, enter “0000”. 6. If you want to pair the Sena SR10, Bluetooth adapter, please refer 5. The mobile phone confirms that pairing has completed and the to the section 5.5, “Pairing with the Sena SR10, Bluetooth Two- 20S EVO is ready to use.
Page 17 20S EVO Bluetooth Stereo Device Pairing Bluetooth GPS Navigation Pairing 1. If the Bluetooth stereo device is integrated with the mobile phone 5.4.1 GPS Pairing such as smartphones, you don’t need to pair the 20S EVO with it 1. Turn on the headset and press the Jog Dial for 6 seconds until the separately.
Page 18 20S EVO 5.4.2 GPS Pairing as Mobile Phone The pairing diagram for GPS pairing is shown in the figure below. If a GPS is not only used for turn-by-turn voice instructions but also is your preferred Bluetooth stereo music source, you can pair the GPS to the 20S EVO by following the simple procedures in “5.1 Mobile Phone Pairing”.
Page 19 You can listen to music, answer a mobile call, have an intercom conversation and use a two-way radio via the SR10 for group The Sena SR10 is a Bluetooth two-way radio adapter for group communication as shown in the figure below. A GPS system which has...
Page 20 Phone Pairing 20S EVO 20S EVO. To clear the pairing list on 20S EVO, please do a factory Sena SR10 reset or follow the pairing list clearing procedure described in this Parallel Connection of SR10 and Mobile Phone manual. To clear the pairing list on the mobile phone, please refer to by Bluetooth Second Mobile Phone Pairing the mobile phone manual.
Page 21 20S EVO A2DP Stereo Music Only 7 MOBILE PHONE CALL MAKING AND 1. Turn on the headset and press the Phone Button for 5 seconds ANSWERING until the LED flashes red and blue alternately and you hear multiple beeps. 2. Within 2 seconds, tap the Jog Dial again, then the LED turns to red flashing and the beeps turn to double mid-toned beeps.
Page 22 20S EVO Speed Dialing – For some older mobile phones which do not automatically transfer calls to the headset, press the Phone Button after You can quickly make a phone call by using the voice speed dial entering phone numbers on the mobile phone keypad. menu.
Page 23 2. Speed dial needs to be setup through the headset (refer to section 20.1, hang up the phone call, the intercom will automatically be “Assigning Speed Dial.”), Sena Motorcycles App, or Device Manager first. recovered. b. To reject the phone call and stay on the intercom conversation, Answer Tap Phone Button or Tap the Jog Dial or Say “Hello”...
Page 24 20S EVO By Bluetooth Wireless Stereo 8 STEREO MUSIC The Bluetooth audio device must be paired with the 20S EVO by following the “Bluetooth Stereo Device Pairing” procedures described in the section 5.3. The 20S EVO supports the Audio/Video Remote You can listen to stereo music in two ways: with the enclosed stereo Control Profile (AVRCP), so if your Bluetooth audio device also audio cable or by Bluetooth wireless stereo.
Page 25 20S EVO Music Sharing 2. To play or pause music, press and hold the Jog Dial for 1 second until you hear a double beep. You can start sharing music with an intercom friend using Bluetooth stereo music during a two-way intercom conversation. 1.
Page 26 As described in section 5.5, you can use a two-way radio and the 20S “Bluetooth GPS Navigation Pairing”, you can hear the voice instruction EVO Bluetooth intercom simultaneously by using the Sena SR10, a of the GPS while having an intercom conversation. The GPS voice Bluetooth Two-way Radio Adapter, along with the 20S EVO.
Page 27 Two-way Radio Two-way Radio Wired Wired Connection Connection Second Mobile 20S EVO Phone Pairing Sena SR10 Intercom Intercom Intercom Pairing Ambient Mode Button Note: Intercom Friend The ambient mode has higher priority than mobile phone, so you cannot Intercom and Two-way Radio make or answer phone call, listen to music, or have an intercom conversation if the Ambient Mode is activated.
Page 28 1. There are two ways to enter the voice command mode. The simplest Play/Pause music “Music” or “Stereo” way is to tap once on the Ambient Mode Button. Or you can say, “Hello Sena” during standby mode. Check battery “Check battery” 2. Speak a voice command from the table below: “Speed dial...
Page 29 3. If the 20S EVO is in stand-by mode for longer than one minute then the microphone will automatically be disabled and the Voice Command feature cannot be activated by saying "Hello Sena". The Voice Command feature will need to be activated by tapping the Ambient Mode Button...
Page 30 20S EVO 3. Simply tap the Jog Dial of any one of the two headsets A or B (It 4. You can pair with up to nine other headsets. To pair with more doesn’t matter that you choose A or B.) and wait until the LEDs of headsets such as A and C, A and D, and more, simply follow the both headsets turn to blue and intercom connection is automatically same procedure as above.
Page 31 Also, SMH10. The SMH5 has a limited capability of having two-way intercom with use the voice command, “Intercom [one~nine]” to end each each other or with other Sena headsets such as the SMH10 and the SMH5. intercom.
Page 32 20S EVO 2. Start an intercom conversation with one of the two friends in 1st intercom friend 2nd intercom friend 3rd ~ 9th intercom friend your intercom group. For example, you (A) may start an intercom Start Triple tap → Rotate to conversation with the intercom friend (B).
Page 33 20S EVO 4. Now you (A) and two 20S EVO intercom friends (B & C) are having Jog Dial Operation Result a three-way intercom. Press for 2” Disconnect (B) & (C) Single tap Disconnect (B) Double tap Disconnect (C) 14.2.3 Start Multi-way Intercom You can have multi-way intercom with up to seven other 20S EVO First Friend Second Friend...
Page 34 20S EVO Rest of the connection of the chain will be preserved. Likewise, double tap will disconnect the intercom connection between you (A) and (C), while preserving rest of the connections. First Friend Second Friend Please note that each participant’s intercom friends are the ones adjacent to each other.
Page 35 20S EVO Jog Dial Operation Result 15 THREE-WAY CONFERENCE PHONE CALL Press and hold for 1” Disconnect all participants WITH INTERCOM PARTICIPANT Single tap Disconnect participants chained to (B) Double tap Disconnect participants chained to (C) You can have a three-way conference phone call by adding an intercom friend to the mobile phone conversation.
Page 36 Sena Bluetooth headset, the previous pairing list will be removed. Eight-way Intercom. Please refer to section 20.9, “Enabling/Disabling Eight- 1. Turn on the 20S EVO and a non-Sena Bluetooth headset that you way Intercom.” for more details. want to pair with.
Page 37 Bluetooth headsets using the same intercom connection method as into Universal Intercom Pairing mode and the blue LED will flash you would between other Sena headsets. You may single tap the Jog rapidly and you will hear multiple beeps. Please refer to section Dial to begin an intercom conversation with the first intercom friend, 20.15, “Universal Intercom Pairing.”...
Page 38 You may make a three-way Universal Intercom connection with two 20S EVOs and one non-Sena Bluetooth headset. 1. You (A) need to be paired with a non-Sena Bluetooth headset (B) and another 20S EVO headset (C) for the three-way intercom.
Page 39 You may have a couple of other four-way Universal Intercom configurations, 1) your headset (A), a non-Sena Bluetooth headset (B), another 20S EVO (C), and a non-Sena Bluetooth headset (D), 2) your headset (A), a non-Sena Bluetooth headset (B), and two other 20S EVO headsets (C and D).
Page 40 (B). The procedure is the same as case 1 described in section 17.4.1. 4. Now two 20S EVO headsets (A & C) and two non-Sena Bluetooth headsets (B & D) are connected with the four-way Universal Intercom. You may disconnect a four-way Universal Intercom using the same way as you do in a normal four-way intercom.
Page 41 20S EVO 18 REMOTE CONTROL 19 FUNCTION PRIORITY You can remotely control the 20S EVO via Bluetooth using the Remote The 20S EVO operates in the following order of priority: Control (sold separately). This eliminates the need to take off your (highest) Ambient mode hand for button operations.
Page 42 20S EVO The voice prompt for each menu item is as below: 20 20S EVO CONFIGURATION SETTING (1) Speed dial (9) Eight-way intercom (2) Audio multitasking (10) Voice prompt (3) Intercom-audio overlay (11) Sidetone You can set the configuration of the 20S EVO by the voice menu sensitivity (12) Noise control instruction as below.
Page 43 2. You can also assign phone numbers for speed dialing by using the Execute Tap the Phone Button Device Manager software or the Sena Motorcycles App. Please visit the Sena Bluetooth website at www.sena.com for more information. 1. To assign a phone number as a speed dial, rotate the Jog Dial until you hear a voice prompt saying “Speed dial”.
Page 44 20S EVO 20.3 Setting Intercom-audio Overlay Sensitivity 20.4 Enabling/Disabling Navigation App Support Voice Prompt “Intercom-audio overlay sensitivity” Voice Prompt “Navigation app support” Factory Default Factory Default Disable Level Adjustment Rotate the Jog Dial (1~10) Enable Tap the Phone Button Apply Tap the Phone Button Disable Tap the Jog Dial...
Page 45 Device Manager, or the Smart Volume Control automatically changes the level of the speaker Sena Motorcycles App. If this mode is disabled, you have to tap the volume based on the level of the environmental noise. When it is Jog Dial or the Phone Button to answer an incoming call.
Page 46 20S EVO 20.8 Enabling/Disabling HD Intercom 20.9 Enabling/Disabling Eight-way Intercom Voice Prompt “HD intercom” Voice Prompt “Eight-way intercom” Factory Default Enable Factory Default Disable Enable Tap the Phone Button Enable Tap the Phone Button Disable Tap the Jog Dial Disable Tap the Jog Dial HD Intercom enhances the two-way intercom audio from normal quality Disabling the Eight-way Intercom optimizes the intercom performance...
Page 47 20S EVO 20.10 Enabling/Disabling Voice Prompts 20.11 Enabling/Disabling Sidetone Voice Prompt “Voice prompt” Voice Prompt “Sidetone” Factory Default Enable Factory Default Disable Enable Tap the Phone Button Enable Tap the Phone Button Disable Tap the Jog Dial Disable Tap the Jog Dial Sidetone is the sound of your own voice as picked up by your headset’s You can disable voice prompts, but the following voice prompts are microphone and reproduced in your own ear, by your own speaker.
Page 48 20S EVO 20.12 Enabling/Disabling Advanced Noise Control™ 20.13 Delete All Bluetooth Pairing Information Voice Prompt “Noise control” Voice Prompt “Delete all pairings” Factory Default Enable Factory Default Enable Tap the Phone Button Execute Tap the Phone Button Disable Tap the Jog Dial To delete all Bluetooth pairing information of the 20S EVO, rotate the Jog Dial until you hear a voice prompt saying “Delete all pairings”, When Advanced Noise Control is enabled, the background noise is...
Page 49 20S EVO 20.15 Universal Intercom Pairing Rotate Jog Dial Tap Phone Button Tap Jog Dial Voice Prompt “Universal intercom pairing” Speed Dial Execute Factory Default Audio Multitasking Enable Disable Intercom-audio Overlay Execute Tap the Phone Button Execute Sensitivity To enter into Universal Intercom Pairing mode, rotate the Jog Dial until Navigation App Support Enable Disable...
Page 50 20S EVO 21 RESET TO FACTORY DEFAULT SETTINGS 22 FAULT RESET 1. To restore the 20S EVO to factory default settings, press and hold When the 20S EVO is not working properly or is in faulty status for the Phone Button for 12 seconds until the LED shows solid red any reason, you may reset by pushing the pin-hole reset button at the and you hear double beeps.
Page 51 20S EVO 23 FIRMWARE UPGRADE 24 OPERATION QUICK REFERENCE The 20S EVO supports firmware upgrade function. Please visit Sena Voice Type Function Button Command Beep Command Bluetooth web site at www.sena.com to check the latest software Press the Phone Ascending downloads.
Page 52 20S EVO Voice Voice Type Function Button Command Beep Type Function Button Command Beep Command Command Press the Phone Blue & red Press the Jog Dial “Pairing Mid-toned Mobile phone High-toned Red flashing Button for 5 alternatively Intercom for 6 seconds single beep intercom”...
Page 53 1.4.1 www.sena.com...
