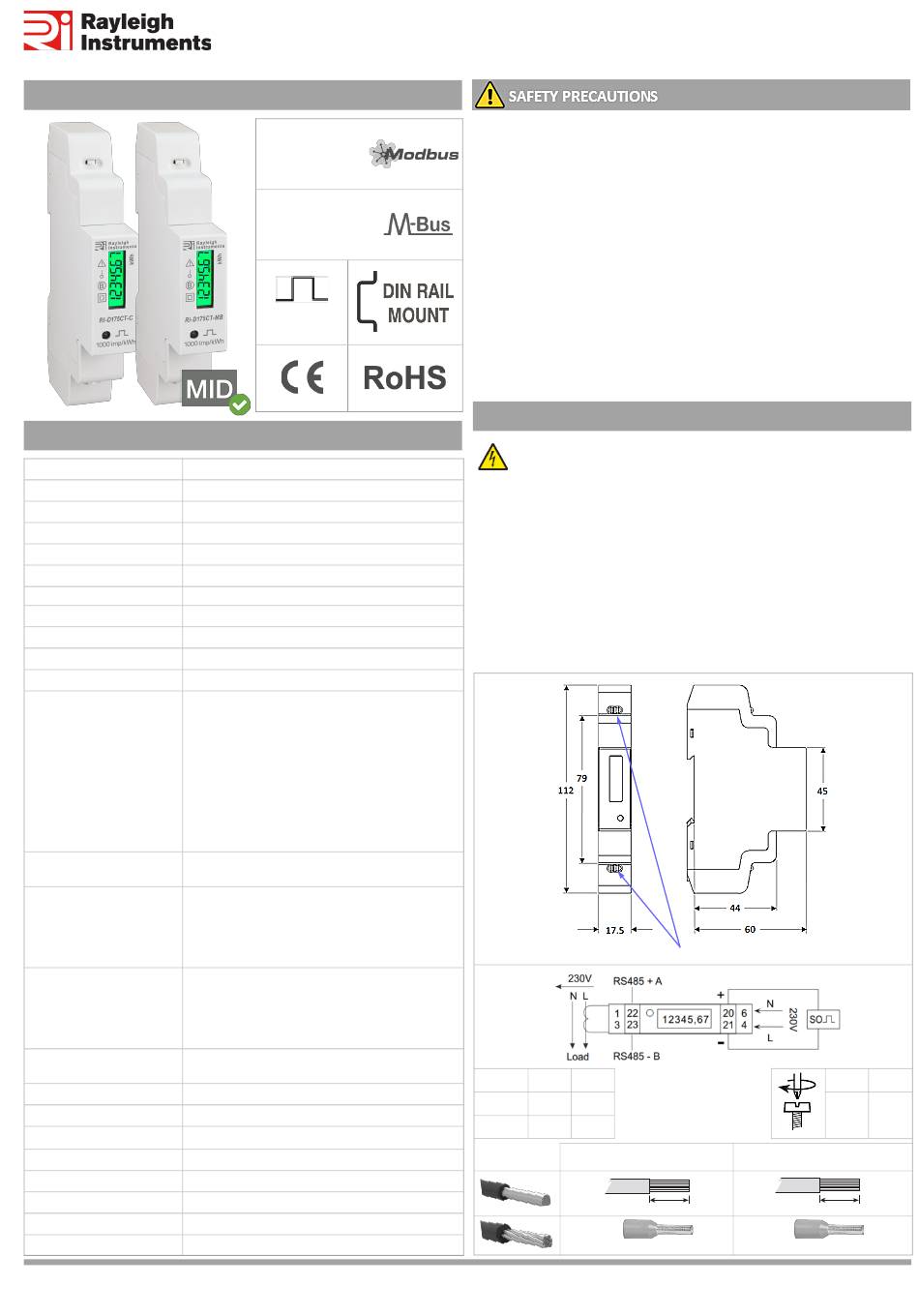

OVERVIEW
SPECIFICATIONS
Wiring input
1Ø, CT Connected
Input voltage (Un)
230V
Operating voltage range
195...253V
Current rating (Imin-Iref)
0.02...5A / Max current (Imax) 6A
Frequency range
50Hz (operating range 45...55Hz)
Short time overcurrent
30 x Imax. for 10mS (IEC/EN62053-21 and -23)
Impulse voltage withstand
6kV 1.2µS
AC voltage withstand
4kV for 1 minute
Auxiliary
230VAC
Power consumption
≤2W / 10VA
Energy maximum display
999999.9 (default) or 99999.99 programmable
Displayed parameters and
accuracy
Active energy:
Voltage:
Current:
Active power:
Power factor:
Frequency:
Communication
RS485: Modbus RTU or MBus EN13757-3
Address Register at www.rayleigh.com
Modbus RTU
Address:
(RI-D175-C only)
Data bits / Parity:
Baudrate:
Bus loading:
Max distance:
MBus EN13757-3
Address:
(RI-D175-MB only)
Baudrate:
Bus loading:
Max distance:
Pulse output
1 x fixed 2000 imp/kWh / 5 - 27V DC (external
supply) / 10mA max / pulse duration 80mS
Operating temperature
-25°C ... +55°C
Storage temperature
-30°C ... +70°C
Relative humidity
0... 95%, non-condensing
Net weight
120g
Housing material
Self-extinguishing ABS
Insulation voltage rating
300V (L - N)
Installation category
III
Protection degree
IP20 (terminals), IP51 (front of housing)
RI-D175CT-C
RI-D175CT-MB
Pulse
Class 1 (IEC/EN62053-21
0.5% of full scale
0.5% of full scale
0.5%
1% of unity
0.1% of full scale (L-N >20V)
1... 255
8 bit / None, Odd, Even
1200, 2400, 4800, 9600
64 meters max
1000m
1... 255
2400, 4800, 9600
64 meters max (dependant
on converter and baudrate)
1000m (64 meters)
Safety related notification, symbols and instructions that appear in this
operating manual or on the equipment must be strictly followed to
ensure the safety of personnel as well as the instrument.
•
If the equipment is not used in a manner specified by the
manufacturer it may impair the protection provided by the
equipment
•
Do not use the equipment if there is any mechanical damage
•
Do not exceed the stated maximum ratings of the device
•
No repairs, maintenance or adjustments are possible
•
Read complete instruction prior to installation or operation of the
unit
•
The equipment in its installed state must not come into close
proximity to any heating sources, oils, steam, caustic vapours or other
unwanted process by-products
•
Do not use in hazardous or classified location where explosion or
other dangers can be triggered by the device
INSTALLATION
Risk of electric shock! To avoid personal and material damage, the
installation process must be performed by qualified and trained
personnel only.
•
To prevent the risk of electrocution, always isolate and lock-off the
power supply to the equipment prior to undertaking any work
•
Always confirm absence of electricity prior to starting work using
appropriate voltage detection equipment
•
Wiring shall be done strictly according to the terminal layout
•
Confirm that all connections are correct before energizing the
equipment
•
Routing of connecting cables should be away from any internal EMI
sources
•
Copper cable should be used
All dimensions in mm
Security Hasp: Must be sealed to comply with MID
RS485
22
23
Modbus
A
B
MBus
MBus1
MBus2
L/N: 7 AWG / 10.5mm
+
Ø 3.5mm max
RI-D175CT
2
Output: 14 AWG / 2.5mm
max
8mm
6mm
+
Ø 1.5mm
OP050 V01
L/N
Output
0.4 Nm
0.2 Nm
Max
Max
2
max
1
