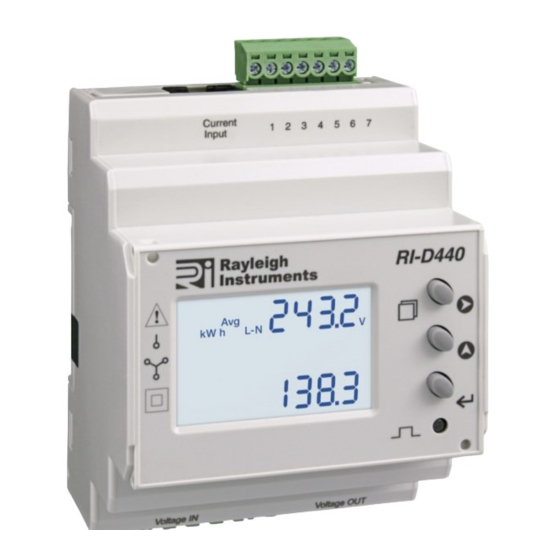

Rayleigh Instruments RI-D440 Instruction Manual

Specifica ons
Wiring Input
Rated Input Voltage
Frequency
CT Primary
CT Secondary
VT Primary
VT Secondary
Auxiliary / Voltage Rated Burden
Display Update Rate
Opera ng / Storage Temperature
Humidity
Protec on Degree (IEC/EN60529)
Communica on
MECHANICAL INSTALLATION
PRODUCT SAFETY
Safety related no fica on, symbols and instruc ons that appear in this
opera ng manual or on the equipment must be strictly followed to
ensure the safety of personnel as well as the instrument. If the
equipment is not used in a manner specified by the manufacturer it may
impair the protec on provided by the equipment
Do not use the equipment if there are mechanical damage
·
Do not exceed the stated maximum ra ngs of the device
·
No repairs, maintenance or adjustments are possible
·
· Read the complete instruc on manual prior to installa on or
opera ng the unit
The equipment in its installed state must not come into close
·
proximity to any hea ng sources, oils, steam, caus c vapours or
other unwanted process by-products
Do not use in hazardous or classified loca on where explosion or
·
other dangers can be triggered by the device
EO&E: Document subject to change
Pulse SO
RI-D440-G-C
RI-D440-G-MB
3Ø 4 wire
1Ø 2 wire - P1, P2, P3
3x 60...300V AC (L-N), 104..520V AC (L-L)
45...65Hz
5...10,000A configurable
0.01...1(1.2)A (Meter Input: 330mV)
100V...10kV AC (L-L) configurable
100...500V AC (L-L) configurable
Supplied from V1 only / < 8VA
1 sec all parameters
-10...55°C / -20...75°C
0...85% non-condensing
IP54 (front of Housing), IP20 (terminals)
Modbus RTU over RS485
MBus (EN13757)
DISMOUNT
RI-D440
1x 3Ø
1x 1Ø
RTU
Voltage V L-N and V L-L
Current
Frequency for L-N > 20V, L-L > 35V
Ac ve, Reac ve and Apparent Power
Power Factor
Ac ve Energy
Reac ve Energy
Wh Resolu on and Default Pulse Weight
CT Ra o x VT Ra o <15
Wh / VAh / VArh 0.01k
INT 0.001k
Example
If CT Primary = 200A (CT ra o = 200/1 = 200) & VT = 350/350V (VT Ra o = 1)
Wh resolu on = 1kWh (200 x 1 = <1500) | Pulse O/P default = 1kWh/pulse
DIN rail mounted, this device must be installed within a
suitable IP rated enclosure. Indoor use only.
Installa on category: III (300V L-N)
Protec on Class: II
Pollu on degree: II
Al tude: up to 2000 m
All terminal covers must be fi ed a er wiring
INSTALLATION PRECAUTIONS
Risk of electric shock!
Only to be installed by a competent person
To prevent the risk of electrocu on, always isolate and lock-off the
·
power supply to the equipment prior to undertaking any work
Always confirm absence of electricity prior to star ng work using
·
appropriate voltage detec on equipment
Wiring shall be done strictly according to the terminal layout
·
Confirm that all connec ons are correct before energizing the
·
equipment
Rou ng of cables shall be way from any internal EMI source
·
Copper cable should be used
·
All wiring to be in accordance with applicable local standards
·
Instruc on Manual
X 1
Accuracy
±0.5% of full scale
±0.5% of full scale
±0.1% of full scale
1%
±0.01 of Unity
Class 1 (IEC/EN62053-21)
Class 2 (IEC/EN62053-23)
<150 <1500 <15k
0.1k 1k 0.01M
0.01k 0.1k 1k
RI-D440-IM-V02
<150k
0.1M
0.01M
1
