Eldat STATUS RTS16 Quick Start Manual

RTS16 Radio Window Contact Sensor STATUS
GB
Model
transmitter
RTS16E5001-01
RTS16E5001-02
Technical Details
Frequency: 868.3 MHz
Radiated power: 0.07 mW
Modulation: FSK
Coding: Easywave A/B
Power supply: 1x 3-V-battery, CR2032
Current
Consumption: 1.6 µA
Operating
temperature: -20 °C to +60 °C
Range: free-field: approx. 150 m
buildings: approx. 30 m
Dimensions: Transmitter: 65x12x28 mm
Magnet: 18x18x13 mm
Weight: Transmitter: 20.6 g
Magnet: 2.2 g
Scope of Delivery
Radio Window Contact Sensor RTS16,
battery CR2032, angle incl. magnet,
attachment set, operating instruction
Intended Use
Only use the Radio Window Contact Sensor
RTS16 to switch Easywave receivers.
The manufacturer shall not be liable for any
damage caused by improper or non-intended
use.
Safety Advice
Before using the Radio Window
Contact, carefully read through the
operating instructions!
Also note the operating instructions of the
receiver(s)!
Have faulty Radio Window Contact
checked by the manufacturer!
Do not make any unauthorized alterations
or modifications to the Radio Window
Contact!
Keep the batteries out of the reach of
children!
Function
The Radio Window Contact
can be used for monitoring the status of
windows, doors and gates. Any change of the
status is transmitted via radio telegram and
moreover, is signalized by a two-coloured LED.
There are two different versions, related to the
functionality:
ON/OFF (RTS16E5001-01): When the contact
is opened, an ON signal (Easywave code A) is
transmitted. When closing the contact an OFF
signal (Easywave code B) is transmitted.
OFF/ON (RTS16E5001-02): When the contact
is opened, an OFF signal (Easywave code B) is
transmitted. When closing the contact an ON
signal (Easywave code A) is transmitted.
The status signal is identical for both versions
of the RTS16. In case that the status of the
LED
monitored object does not change for longer
periods, a status signal is transmitted 1x every
24 hours, containing the respective status
magnet
message (ON or OFF). Moreover, the signal is
repeated after 10 seconds for reasons of
transmission reliability.
ON/OFF Status
The RTS16 contains an internal battery control
OFF/ON Status
function. As soon as the battery capacity is
weak, a signal "Battery Low" is transmitted in
addition to the status signal. Those "Battery
low" signal can be utilized by specific
Easywave receivers. For more information
please refer to the manual of the corresponding
receiver device.
Start-Up

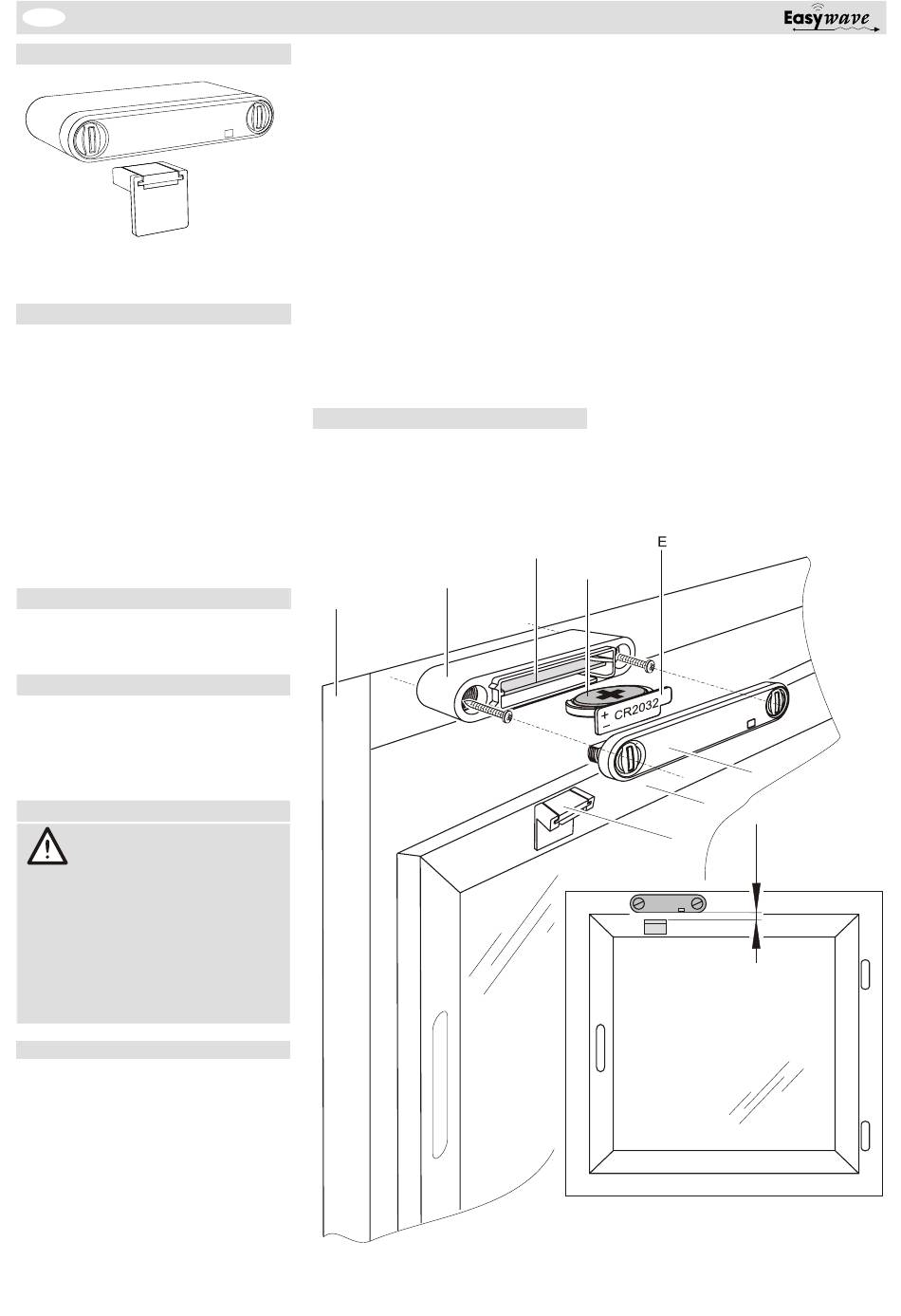

1. Unscrew the transmitter upper part.
2. Insert the enclosed battery into the
battery holder. The positive pole must
show upward. Slide the battery holder
between battery clip and circuit board into
the transmitter.
A
RTS16 STATUS
3.
4. Fasten the transmitter with the enclosed
5. Stick the magnet opposite the contact
C
D
B
A
window frame
B
transmitter
C circuit board
D battery CR2032
Memorize the transmission code in the
receivers. Prepare the receiver for the
programming (see operating instruction of
the receiver). Touch with the magnet at
the contact area of the transmitter
(broken framework on the transmitter
bottom side). The transmission procedure
is released and the transmission code is
transferred to the receiver.
screws or stick pads to the assembly site
(e.g. door or window frame). Screw the
transmitter upper part on again.
Caution: Make sure there is no inter-
ference with the wireless connection. Do
not mount the device in a distribution box,
in metal casings, in direct proximity to
large metal objects, on the floor or close
to it.
area marked on the transmitter bottom
side on the door and/or casement. The
distance between magnet and transmitter
may be max. 5 mm.
F
G
Distance between
transmitter
H
and magnet:
max. 5 mm.
E
battery holder
F
upper part transmitter
G casement
H magnet
