Eldat Easywave RTS40 Quick Start Manual

Motion Detector RTS40
EN

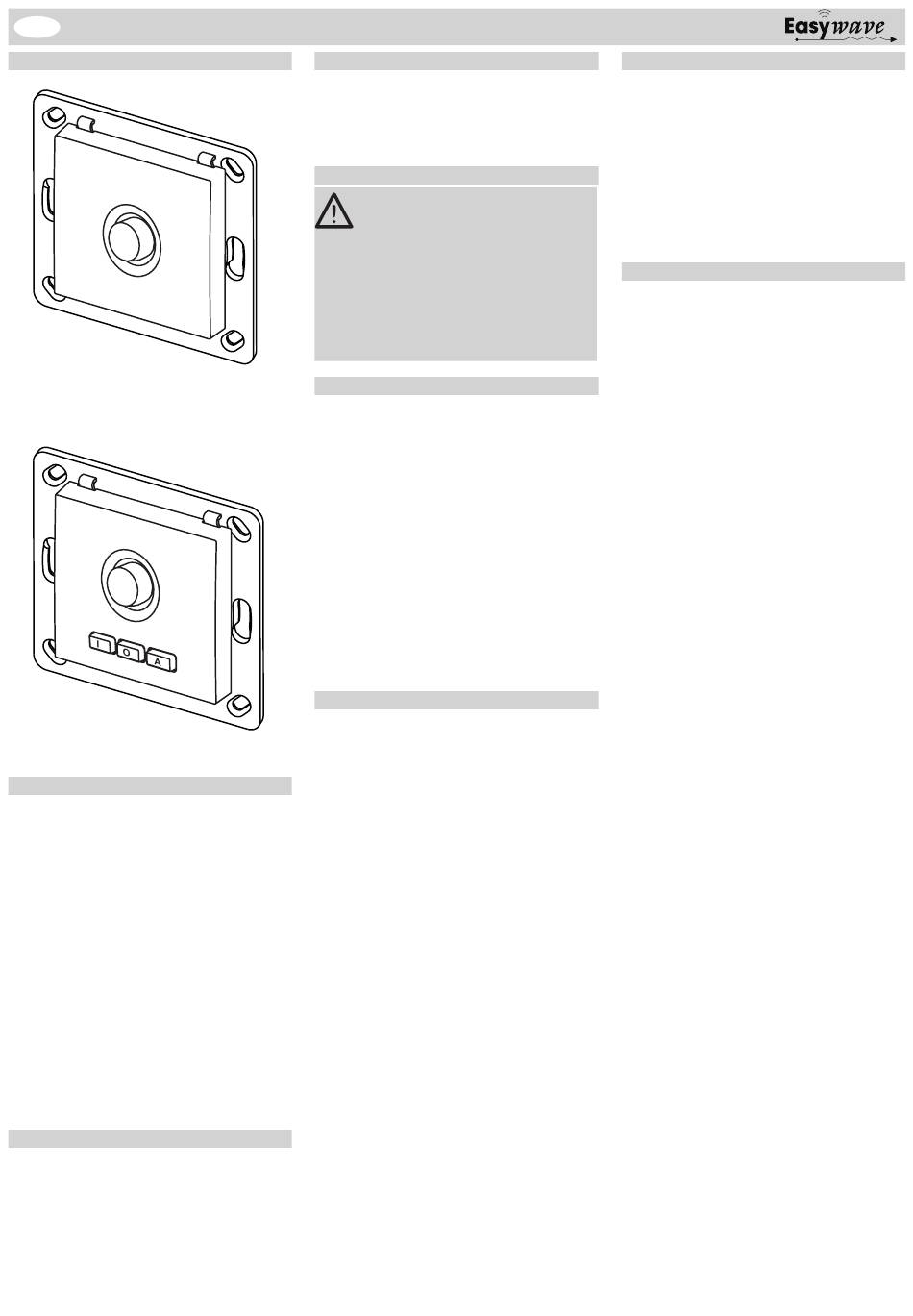

Models
RTS40E5001B01 AUTOMATIC
RTS40E5001B02
ON/OFF/AUTO
Technical Details
Frequency: 868.30 MHz
Radiated power: 0.89 mW
Modulation: FSK
Coding: Easywave A/B
EasywavePlus
POTA
Power supply: 1x 3V battery, CR2032
Temperature: -20 °C to +60 °C
Range: free-field: approx
buildings: approx
Brightness range: 1 lx to 150 lx
After-run time: 5 s to 131 min
Inspection density: approx. 16 m²
Dimensions (w/l/h):
cover: 55 / 55 / 12 mm
plate: 71 / 71 / 1.5 mm
Weight: 30 g
Scope of Delivery
Transmission module, batteries CR2032, cover,
mounting plate, adhesive pad, operating instruc-
tions
Intended Use
Only use the device as a motion detector and only
for operating Easywave radio receivers.
The manufacturer shall not be liable for any
damage caused by improper or non-intended
use.
Safety Advice
Before using the Radio Wall Switch,
carefully read through the operating in-
structions!
Also note the operating instructions for the
receiver(s)!
Do not make any unauthorised alterations or
modifications to the RadioWall Switch!
Have faulty Radio Wall Switches checked by
the manufacturer!
Keep the batteries out of the reach of children!
Function
The RTS40 is a battery-operated wireless moti-
on detector for indoor use. Movement is detected
and information sent via an Easywave message,
and the connected Easywave radio receivers
are operated in line with their selected operating
mode. Motion detection can optionally also be
brightness-dependent.
There are two device options available:
AUTOMATIC operation (RTS40E5001B01)
The motion detector automatically reacts as per
the programmed values.
ON/OFF/AUTO operation (RTS40E5001B02)
The function of the motion detector can be ope-
rated as permanently ON (button I), permanently
OFF (button O) or on automatic operation (A
button).
After-run time
The motion detector sends an ON data telegram
(A) when it detects a movement and an OFF data
telegram (B) after the adjustable after-run time
has elapsed. The after-run time can be set to a
period ranging from 5 seconds to 131 minutes.
For this purpose, set the number of seconds (in
steps of 5) via the "SEC x5" setting and the desi-
red number of minutes via the "MIN" setting. As
an option, the after-run time set in this way can
be multiplied by a factor of 1 to 11 via the time
multiplier "x".
The after-run time can be re-triggered. If another
movement is detected during the after-run time,
the after-run time starts again from the beginning.
In doing so, the light sensor is not evaluated.
150 m
.
30 m
.
Light sensor
The motion detector has a switchable light sensor.
As soon as the light sensor is activated, detected
movements only trigger a switching command if
the measured brightness is below the adjustable
brightness threshold.
The brightness threshold can be set in 12 steps,
ranging from 1lx to 150lx.
When re-triggering the after-run time, the light
sensor is generally not evaluated, as the switched
light source usually has an influence on the value
measured.
Trigger function
The trigger function is used to control automatic
staircase lighting systems or the TIMER function
of Easywave receivers.
To select the trigger function, set the multiplier x to
0 (see "Programming" on page 3). In this mode,
the motion detector sends a data telegram (A) to
the receiver every time motion is detected. To-
gether with the corresponding Easywave recei-
vers, this data telegram can be used to re-trigger
the TIMER function or e.g. an automatic staircase
lighting system.
In this mode, the set after-run time specifies the
minimum interval between two transmission pro-
cesses. If the after-run time is set to 2 minutes
and 30 seconds, e.g. the motion detector trans-
mits a signal a maximum of every 2.5 minutes as
long as motion is detected. If no motion is detec-
ted after the after-run time has elapsed, no data
telegram is transmitted. The transmission interval
can be a minimum of 5 seconds and a maximum
of 11:55 minutes.
The light sensor can be used normally in this
mode. To deactivate the trigger function, set the
multiplier to a value > 0 (1-11).
