Eldat RTS16 Quick Start Manual

RTS16 Radio Window Contact Sensor
GB
Model
transmitter
RTS16E5001B01
RTS16E5001B02

Technical Details

Frequency: 868.3 MHz
Radiated power: 0.07 mW
Modulation: FSK
Coding: Easywave A/B
Power supply: 1x 3-V-battery, CR2032
Current
Consumption: 1.6 µA
Operating
temperature: -20 °C to +60 °C
Range: free-field: approx. 150 m
buildings: approx. 30 m
Dimensions: Transmitter: 65x12x28 mm
Magnet: 18x18x13 mm
Weight: Transmitter: 20.6 g
Magnet: 2.2 g

Scope of Delivery

Radio Window Contact Sensor RTS16,
battery CR2032, angle incl. magnet,
attachment set, operating instruction
Intended Use
Only use the Radio Window Contact Sensor
RTS16 to switch Easywave receivers.
The manufacturer shall not be liable for any
damage caused by improper or non-intended
use.

Safety Advice

Before using the Radio Window
Contact, carefully read through the
operating instructions!
Also note the operating instructions of the
receiver(s)!
Have faulty Radio Window Contact
checked by the manufacturer!
Do not make any unauthorized alterations
or modifications to the Radio Window
Contact!
Keep the batteries out of the reach of
children!

Function

The Radio Wall Switch RTS16 STATUS can be
used for monitoring the status of windows,
doors and gates. Any change of the status is
transmitted via radio telegram and moreover, is
signalized by a two-coloured LED.
By opening or closing of a window the
Easywave code is transmitted and the connec-
ted Easywave receivers are switched in their
selected operating mode.
There are two different versions, related to the
functionality:
ON/OFF (RTS16E5001B01): When the
contact is opened, an ON signal (Easywave
code A) is transmitted. When closing the
contact an OFF signal (Easywave code B) is
transmitted.
OFF/ON (RTS16E5001B02): When the
LED contact is opened, an OFF signal (Easywave
code B) is transmitted. When closing the
contact an ON signal (Easywave code A) is
magnet transmitted.
The RTS16 contains an internal battery control
function. As soon as the battery capacity is
weak, a signal "Battery Low" is transmitted in
ON/OFF
addition to the status signal. Those "Battery
OFF/ON
low" signal can be utilized by specific
Easywave receivers. For more information
please refer to the manual of the correspon-
ding receiver device.

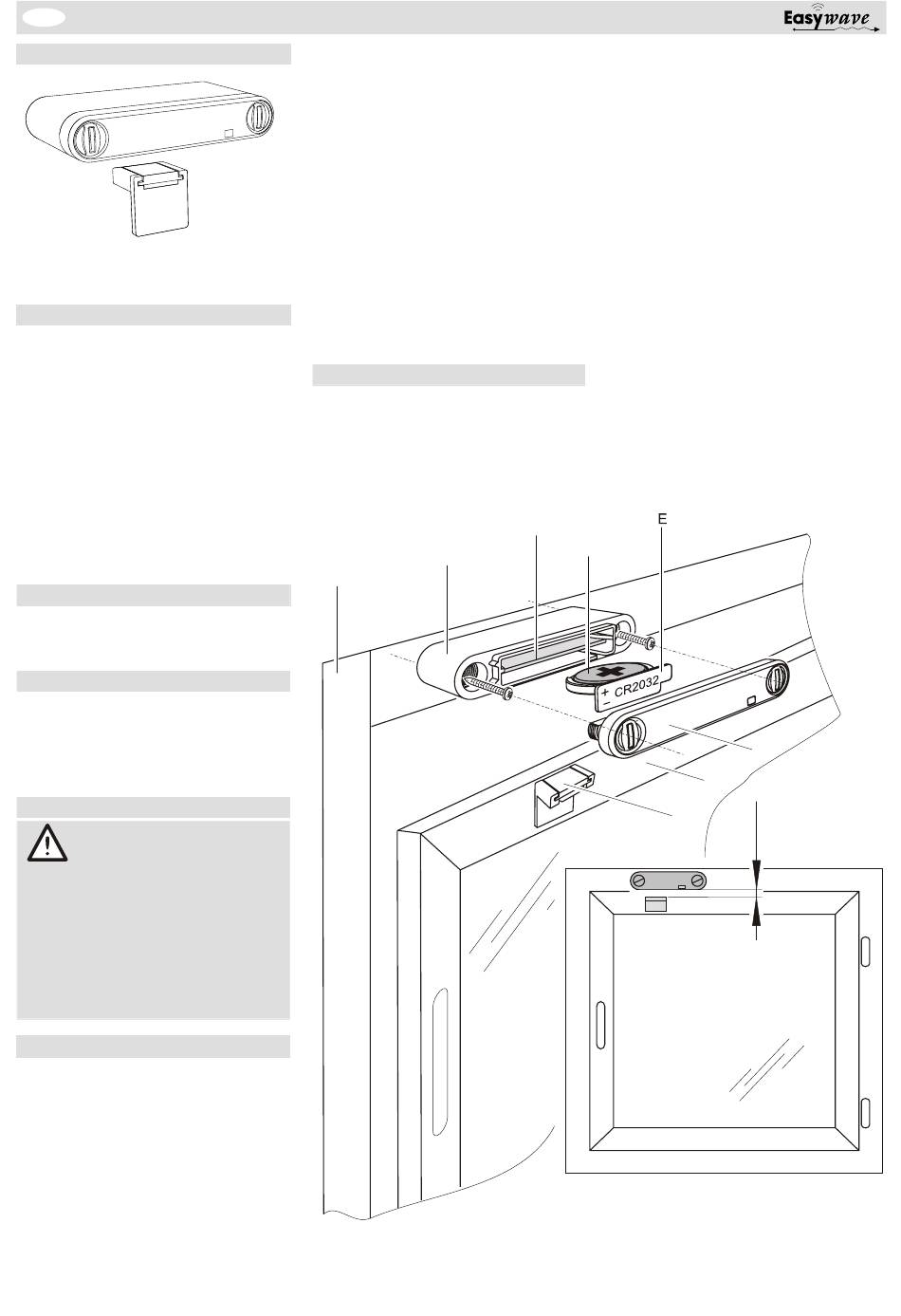

Start-Up

1. Unscrew the transmitter upper part.
2. Insert the enclosed battery into the battery
holder. The positive pole must show
upward. Slide the battery holder between
battery clip and circuit board into the
transmitter.
A
3.
4. Fasten the transmitter with the enclosed
5. Stick the magnet opposite the contact area
C
D
B
A window frame
B transmitter
C
circuit board
D battery CR2032
Memorize the transmission code in the
receivers. Prepare the receiver for the
programming (see operating instruction of
the receiver).
Touch with the magnet at the contact area
of the transmitter (broken framework on the
transmitter bottom side). The transmission
procedure is released and the transmission
code is transferred to the receiver.
screws or stick pads to the assembly site
(e.g. door or window frame). Screw the
transmitter upper part on again.
Caution: Make sure there is no inter-
ference with the wireless connection. Do
not mount the device in a distribution box, in
metal casings, in direct proximity to large
metal objects, on the floor or close to it.
marked on the transmitter bottom side on
the door and/or casement. The distance
between magnet and transmitter may be
max. 5 mm.
F
G
Distance between
transmitter
H
and magnet:
max. 5 mm.
E battery holder
F upper part transmitter
G
casement
H magnet
