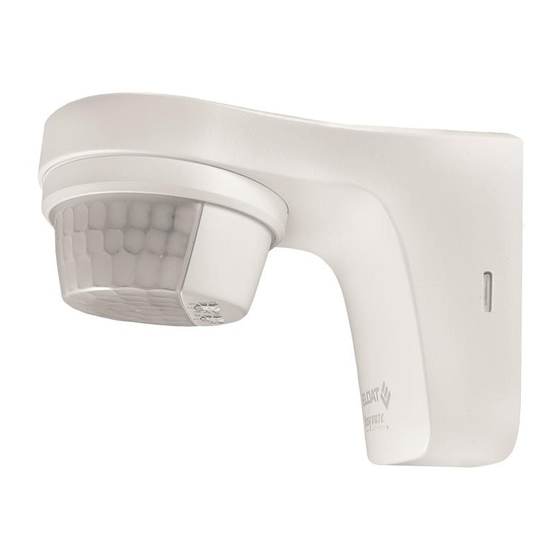

SM01 Motion detector
Model
Sensor
Potentiometer for set-
ting brightness (lux)
SM01E5001A01
Technical Details
Frequency:
868.0 MHz
Radiated power:
0.49 mW
Modulation:
FSK
Coding:
Easywave A/B
Radio range:
approx. 150 m in
free field conditions
Detection angle:
180°
Detection area:
crosswise: max. 12 m
frontal: max. 5 m
Installation height:
2 m to 4 m
Creep-under protection:
yes
Brightness setting range: 5 to 1000/∞ Lux
Switching period range:
1 s to 20 min
230 V AC, +10 % to15 % 50 Hz
Operating voltage:
Power consumption:
0.8 W (standby)
Permissible ambient
temperature:
max. -25 °C to +45 °C
Protection class:
II
Degree of protection:
IP55
Dimensions (l/w/h):
127/85/100 mm
Weight:
220 g
Contact load:
Switching capacity:
10 A (cosϕ = 1.0)
6 A (cosϕ = 0.6)
3 AX (cosϕ = 0.3)
Min. switching capacity:
10 mA
Switching contact:
µ-contact 230 V AC
LED lamps >2 W <8 W
90 W
LED lamps >8 W
100 W
Incandescent and
halogen lamp load:
2,300 W
Low-voltage halogen
lamps:
2,300 VA
Fluorescent lamps
(low-loss series devices)
uncorrected:
400 VA
series corrected:
400 VA
parallel-corrected:
400 VA (42 μF)
Fluorescent lamps:
600 VA
(electronic series devices)
Compact fluorescent
tubes:
150 W
(electronic series devices)
Potentiometer for
setting time (min)
Scope of Delivery
Motion detector, base, drilling template, moun-
ting kit, operating manual
Intended Use
Only use the device as a motion detector for swit-
ching Easywave radio receivers or for switching
directly connected electrical loads.
The manufacturer shall not be liable for any da-
mage caused by improper or non-intended use!.
Safety Advice
Caution! Electrical installation may
only be carried out by a qualified
electrician; otherwise there is a risk
of electric shock or fire .
Also note the operating instructions of the
receiver(s)!
Do not make any modifications to the device!
Have faulty devices checked by the manufac-
turer .
Only intended for installation out of arm's reach .
Before using the motion detector, care-
fully read through the operating instruc-
tions !
Function
The SM01 is a wireless motion detector and wi-
red motion detector for automatic lighting control
based on movement and brightness. It is suitable
for wall mounting outdoors.
If a movement is detected while the measured
brightness is below the set threshold value, the
non-floating 230V relay output of the motion de-
tector switches ON for the set time.
In addition, a radio telegram (Easywave code A,
ON) is transmitted, which can be taught-in to Ea-
sywave receivers.
After the set time has elapsed, the relay output of
the motion detector switches OFF and Easywave
code B (OFF) is transmitted.
The device can be activated manually using a
break switch. After releasing the button (voltage
recovery), the device switches on (for at least 40
seconds, or for the time set on the device).
The motion detector has two potentiometers on
the underside of the sensor, which are used to ad-
just the time (minutes) and brightness (lux), etc.
The motion detector's detection range is 12 m x
5 m, with a detection angle of 180°.
START UP
Mounting instructions
-
The recommended mounting height is bet-
ween 2 metres and 4 metres.
-
The sensor reacts to changing heat radiati-
on. The motion detector should therefore not
be mounted near heat sources, air currents
or moving objects.
-
Do not direct motion detectors at objects
with highly reflective surfaces (e.g. mirrors,
windows, etc.).
-
Obstacles (e.g. walls, glass panes etc.) do
not radiate heat.
-
Make sure that the wireless connection bet-
ween motion detector and receiver is unim-
peded. Avoid installing in the near of large
metallic objects.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Easywave SM01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eldat Easywave SM01

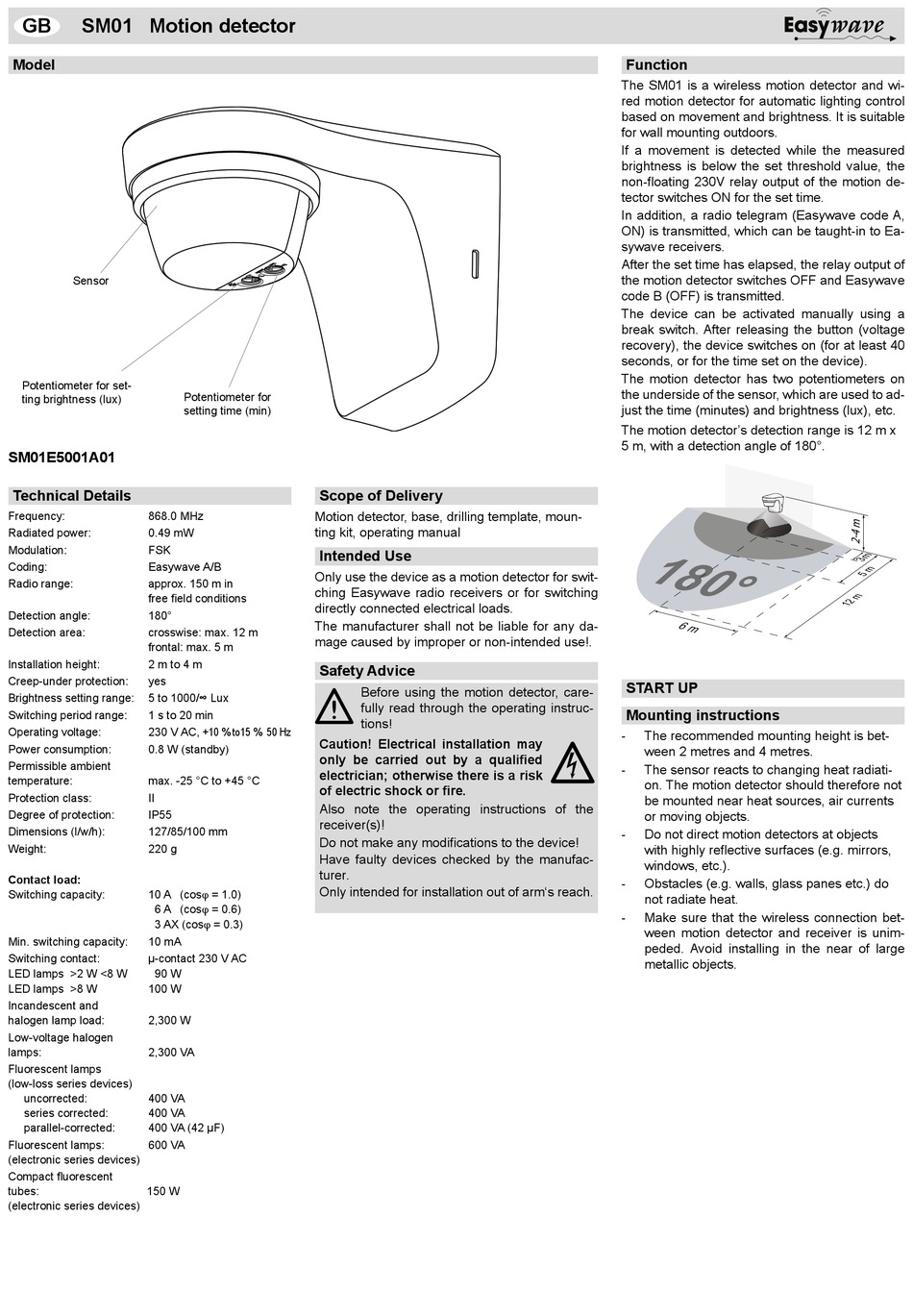

  • Page 1 SM01 Motion detector Model Function The SM01 is a wireless motion detector and wi- red motion detector for automatic lighting control based on movement and brightness. It is suitable for wall mounting outdoors. If a movement is detected while the measured brightness is below the set threshold value, the non-floating 230V relay output of the motion de- tector switches ON for the set time.
