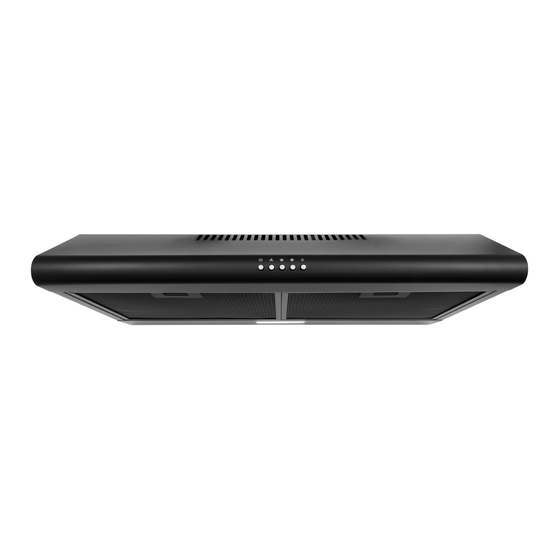

Under cabinet range hood
Hide thumbs Also See for COS-5MU30-BK:

Advertisement

Quick Links

UNDER CABINET
RANGE HOOD
5MU Series Under Cabinet
Range Hood
INSTALLATION INSTRUCTIONS
& USER MANUAL
IMPORTANT:
READ AND SAVE THESE INSTRUCTIONS.
FOR RESIDENTIAL USE ONLY.
INSTALLER:
PLEASE LEAVE THESE INSTRUCTIONS WITH THIS UNIT FOR
THE OWNER.
OWNER:
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE
REFERENCE.
Rev.24.08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COS-5MU30-BK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cosmo COS-5MU30-BK

  • Page 1 UNDER CABINET RANGE HOOD 5MU Series Under Cabinet Range Hood INSTALLATION INSTRUCTIONS & USER MANUAL IMPORTANT: READ AND SAVE THESE INSTRUCTIONS. FOR RESIDENTIAL USE ONLY. INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THIS UNIT FOR THE OWNER. OWNER: PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
  • Page 2 COSMO Appliances are designed according to the strictest safety and performance standard for the North American market. We follow the most advanced manufacturing philosophy.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..............4 ALUMINUM FILTERS ................... 5 PARTS DIAGRAM ....................6 INSTALLATION REQUIREMENTS ................ 7 PRE-INSTALLATION REQUIREMENTS ..............8 INSTALLATION INSTRUCTIONS ................9 CHARCOAL FILTERS INSTALLATION ..............11 OPERATING INSTRUCTIONS ................12 MAINTENANCE ....................13 TROUBLESHOOTING ..................
  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using this appliance. Save these instructions for future references Approved for residential appliances For residential use only IMPORTANT SAFETY INSTRUCTIONS CAUTION WARNING FOR GENERAL VENTILATING USE ONLY. DO NOT USE GROUNDING INSTRUCTIONS TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS OR VAPORS.
  • Page 5: Aluminum Filters

    ALUMINUM FILTERS About Your New Filters Aluminum Filters are recommen ed to be replaced every 6 months depending on usage. Cleaning my Aluminum Filters Your filters can be hand washed and cleaned to increase time between replacements. Aluminum Filters may not be placed in the dishwasher.
  • Page 6: Parts Diagram

    PARTS DIAGRAM MODEL: COS-5 Other accessories: 1. Main Body 4. Carbon Filter (Not Included. Available for purchase at www.cosmoappliances.com) 2. Motor Housing 5. Damper (1 pcs) 3. Aluminum Filter 6. Air Outlet Cap (2 pcs) 7. Screws 5mm x 49mm (4 pcs) 8.
  • Page 7: Installation Requirements

    INSTALLATION REQUIREMENTS 1. Please read the following instructions carefully. This Range Hood can be vented through the top or back. Remove the Air Outlet Cap according to the option chosen (Fig. 1). For ductless installation, install an Air Outlet Cap on both the rear and top vent holes. For optimal performance the Range Hood must be installed 24"...
  • Page 8: Pre-Installation Requirements

    PRE-INSTALLATION REQUIREMENTS • Please read the instructions carefully. Unpack the Range Hood and check that all functions are working before installing. • Ensure that the voltage (V) and the frequency (Hz) indicated on the sticker match the voltage and frequency at the installation site. •...
  • Page 9: Installation Instructions

    INSTALLATION INSTRUCTIONS CAUTION: HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES WHENEVER IT IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. Cabinet Installation Method For Ducted installation drill a 130mm diameter hole into the cabinet and four 3.5mm diameter holes as pictured below picture.
  • Page 10 INSTALLATION INSTRUCTIONS CAUTION: HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES WHENEVER IT IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. Wall Mount Installation Method 1. A. Find the 4 mounting holes in the back of the range hood.
  • Page 11: Charcoal Filters Installation

    CHARCOAL FILTERS INSTALLATION Skip this page if you are installing a Ducted Range Hood. Charcoal Filters are only included with Ductless Models. Twist to Lock in Place When installing, press firmly on Twist to the center of Unlock the filter. Carbon Filter 1.) Remove the aluminum filters.
  • Page 12: Operating Instructions

    OPERATING INSTRUCTIONS Power Indicator Light – Illuminates when the motor is running Light Button. Press on this button to turn on the lights, and press again to turn them off. Motor Off Switch: Press this button to stop the motor while it is running on any given speed.
  • Page 13: Maintenance

    MAINTENANCE CAUTION: NEVER PUT YOUR HAND INSIDE OF THE UNIT WHILE ITS OPERATING THE BEST PERFORMANCE CLEAN YOUR RANGE HOOD REGULARLY CLEANING 1. Use only mild soap or cleaning solutions to clean the hoods' outer surface. Dry surfaces using a soft cloth. 2.
  • Page 14: Troubleshooting

    TROUBLESHOOTING CAUTION: ALWAYS DISCONNECT UNIT FROM POWER BEFORE SERVICING PROBLEM SOLUTION TOOLS My range hood is A. Check inside the range hood Phillips Screwdriver noisy. for any loose debris and remove. My range hood has A. The range hood and cooktop Phillips Screwdriver poor performance.
  • Page 15: Warranty & Service

    LIMITED WARRANTY WARRANTY AND SERVICE TO RECEIVE WARRANTY SERVICE, YOUR PRODUCT MUST BE REGISTERED. TO REGISTER AND REVIEW FULL WARRANTY DETAILS, VISIT: WWW.COSMOAPPLIANCES.COM/WARRANTY SCAN TO REGISTER CUSTOMER SUPPORT TO CHAT WITH US LIVE FOR ASSISTANCE, VISIT: WWW.COSMOAPPLIANCES.COM/CHAT SCAN TO CHAT...
  • Page 16 IMPORTANT Do Not Return This Product To The Store If you have a problem with this product, please contact COSMO Customer Support at +1 (888) 784-3108 DATED PROOF OF PURCHASE, MODEL #, AND SERIAL # REQUIRED FOR WARRANTY SERVICE. IMPORTANT Ne pas Réexpédier ce Produit au Magasin...
  • Page 17 APPLIANCES Cosmo is constantly making efforts to improve the quality and performance of our products, so we may make changes to our appliances without updating this manual. Electronic version of this manual is available at: www.cosmoappliances.com...
