5.2 Unit with CROUZET drive motor :

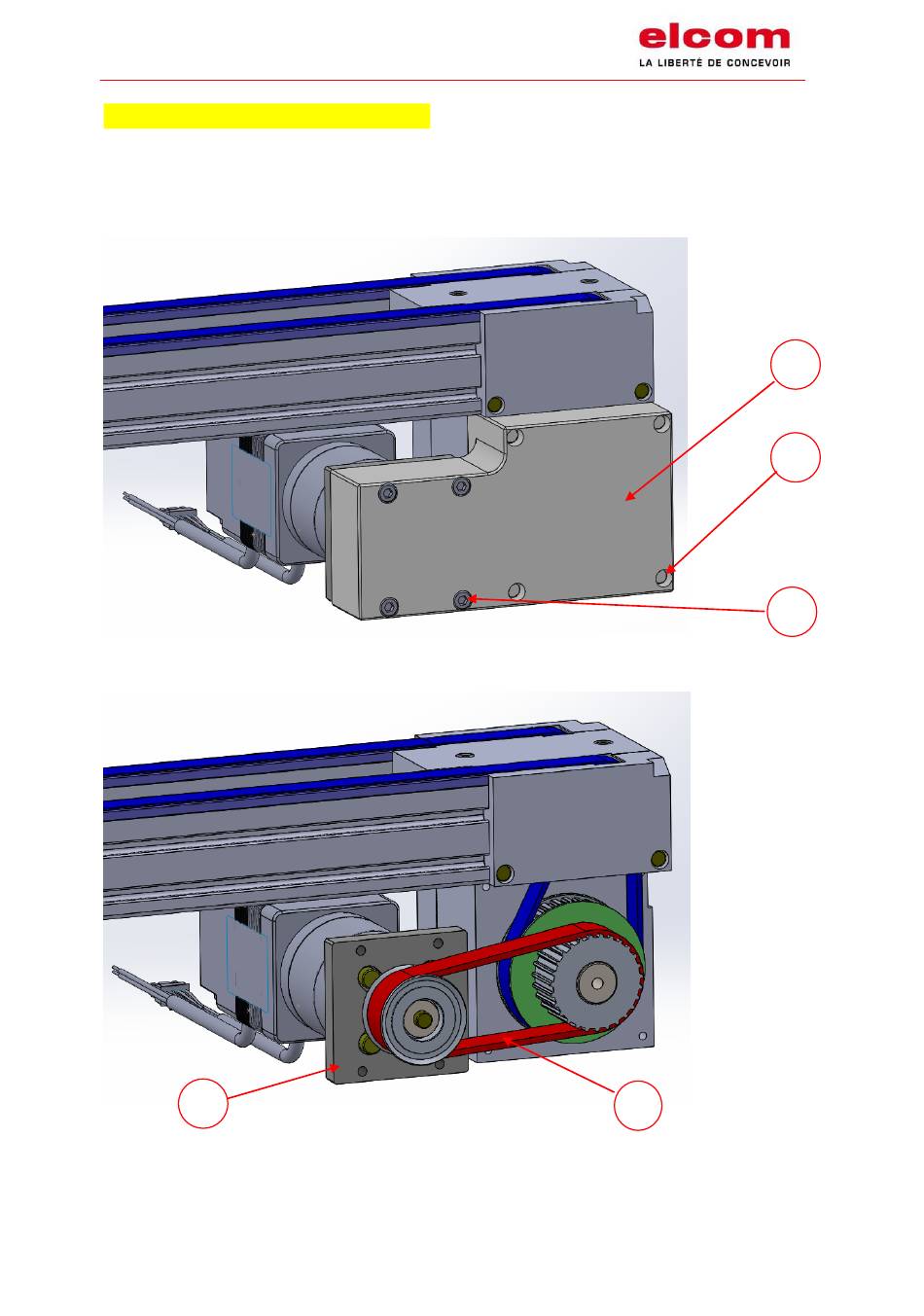

Take off the drive motor support Rep 8, fixed by 4 screws CHC M5 Rep 9 (see picture below) and the
hood Rep 13, fixed by 4 screws CHC M4 Rep 14.
Tool needed, Hex keys
Take off belt Rep 7
8
I02-242 User & maintenance manual
of
TLM1000 ITS 24 V
7
Version 02
(translation of the original manual)
13
14
9
Page 16 of 37
