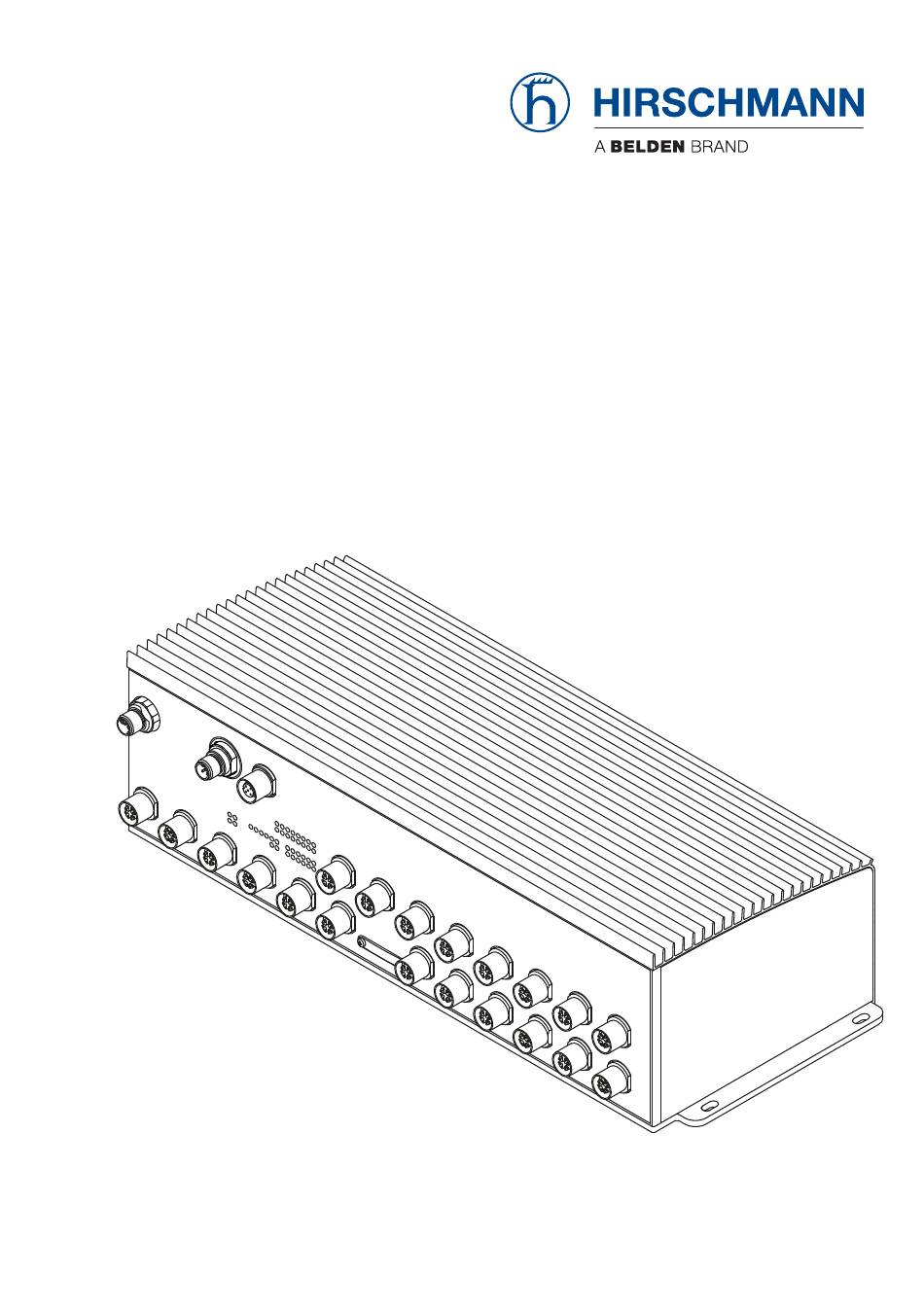

- Page 1 User Manual Installation Industrial Ethernet Bobcat Xtreme Performance BXP Family Technical Support Installation BXP Family https://hirschmann-support.belden.com Release 03 - 08/2024...
- Page 2 The naming of copyrighted trademarks in this manual, even when not specially indicated, should not be taken to mean that these names may be considered as free in the sense of the trademark and tradename protection law and hence that they may be freely used by anyone. ©...
-
Page 3: About This Manual
About this manual The “Installation” user manual contains a device description, safety instructions, a description of the display, and the other information that you need to install the device. Documentation mentioned in the “Installation” user manual that is not supplied with your device as a printout can be found as PDF files for downloading on the Internet at: https://www.doc.hirschmann.com... -
Page 4: Important Information
Important information Read these instructions carefully, and familiarize yourself with the device before trying to install, operate, or maintain it. The following notes may appear throughout this documentation or on the device. These notes warn of potential hazards or call attention to information that clarifies or simplifies a procedure. Installation BXP Family Release 03 - 08/2024... -
Page 5: Warning Symbols
Warning symbols This is a general warning symbol. This symbol alerts you to potential personal injury hazards. Observe all safety notes that follow this symbol to avoid possible injury or death. If this symbol is displayed in addition to a safety instruction of the type “Danger” or “Warning”, it means that there is a danger of electric shock and failure to observe the instructions will inevitably result in in... - Page 6 NOTICE NOTICE provides information about procedures that do not involve the risk of injury. Installation BXP Family Release 03 - 08/2024...
-
Page 7: Table Of Contents
Contents A bout this manual....................3 I mportant information................... 4 W arning symbols....................5 1. S afety instructions..................10 1.1. Q ualification requirements for personnel..........11 1.2. I ntended use..................11 1.3. I nstallation site requirements............... 12 1.4. - Page 8 3.4.2. S D card interface...............27 3.5. E thernet ports..................27 3.5.1. T wisted pair port 10/100/1000 Mbit/s.........28 3.5.2. T wisted pair port 1/2.5/10 Gbit/s..........29 3.5.3. S upport of PoE+/++..............30 3.6. D isplay elements..................33 3.6.1. D evice status................33 3.6.2.
- Page 9 9.2.1. S upply voltage 110 V DC............56 9.3. P ower consumption/power output............57 9.4. S ignal contact..................57 9.5. D igital input..................58 9.6. D imension drawings................59 9.6.1. D imension drawings..............59 9.7. C limatic conditions during operation............60 9.8.
-
Page 10: Safety Instructions
1 - Safety instructions 1. Safety instructions WARNING UNCONTROLLED MACHINE ACTIONS Failure to follow these instructions can result in death, serious injury, or equipment damage. To avoid uncontrolled machine actions caused by data loss, configure all the data transmission devices individually. Before you start any machine which is controlled via data transmission, be sure to complete the configuration of all data transmission devices. -
Page 11: Qualification Requirements For Personnel
1.1 - Qualification requirements 1 - Safety instructions for personnel 1.1. Qualification requirements for personnel Only allow qualified personnel to work on the device. Qualified personnel have the following characteristics: • Qualified personnel are properly trained. Training as well as practical knowledge and experience make up their qualifications. -
Page 12: Installation Site Requirements
1.3 - Installation site 1 - Safety instructions requirements 1.3. Installation site requirements • Exclusively install this device in a restricted access location, to which maintenance staff have exclusive access. Install the device in such a way that it is protected against mechanical forces in the area of the power supply. -
Page 13: Electrical Connections
1 - Safety instructions 1.6 - Electrical connections • Relieve the connection points of cables and lines from mechanical stress. • Design strain reliefs in such a way that they help prevent any mechanical damage to cables, wires or conductors caused by external influences or their own weight. -
Page 14: General Requirements For Connecting The Supply Voltage
1 - Safety instructions 1.6 - Electrical connections • The electrical wires are voltage-free. • The device is grounded via the designated ground connection(s). • The cross-section of the ground conductor is the same size or larger than the cross-section of the power supply cables. •... -
Page 15: Requirements For Connecting The Signal Contact
1 - Safety instructions 1.6 - Electrical connections • Verify that the power supply feeding the device has double or reinforced insulation. • The supply voltage corresponds to the voltage specified on the type plate of the device. • The power supply cable is suitable for the required voltage, current, and physical load. -
Page 16: Recycling Note
1 - Safety instructions 1.7 - Recycling note 1.7. Recycling note The symbol of a crossed-out wheeled bin shown on the device indicates that the device MUST NOT be disposed of with household waste at the end of its service life. After its service life, the used device must be disposed of properly as electronic waste in accordance with the locally applicable disposal regulations. -
Page 17: Approvals
2 - Approvals 2. Approvals 2.1. CE marking The labeled devices comply with the regulations contained in the following European directive(s): • 2011/65/EU and 2015/863/EU (RoHS) Directive of the European Parliament and of the Council on the restriction of the use of certain hazardous substances in electrical and electronic equipment. -
Page 18: Fcc Note
Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Bobcat Xtreme Performance BXP Family U.S. Contact Information Belden Inc. – St. Louis 1 N Brentwood Blvd. 15th Floor St. Louis, Missouri 63105, United States Phone: 314.854.8000 This device complies with Part 15 of the FCC Rules. Operation is subject... -
Page 19: Description
3 - Description 3. Description The next-generation Industrial Ethernet Switch Bobcat Xtreme Performance (BXP) with up to 28 ports (6 × 10 Gbit/s and 22 × 1 Gbit/s) and various configurations is characterized by a robust metal casing with M12 connectors. Designed for industrial environments and transportation market conditions, BXP devices support the following key features: •... -
Page 20: Device Name And Product Code
3.1 - Device name and product 3 - Description code There are convenient options for managing the device. Manage your devices via: • Web browser • SSH • Telnet • Network management software (for example Industrial HiVision) The Network Management Software Industrial HiVision provides you with options for smooth configuration and monitoring. - Page 21 3.1 - Device name and product 3 - Description code Table 1. Device name and product code (continued) Character Item Characteristic Description istic value 7 ... Number: 14 × (10)/100/1000 Mbit/s ports (10)/100/1000 Mbit/s ports 22 × (10)/100/1000 Mbit/s ports 9 ... Number: 0 × 100/1000/2500 Mbit/s ports 100/1000/2500 Mbit/s ports 11 ...
- Page 22 3.1 - Device name and product 3 - Description code Table 1. Device name and product code (continued) Character Item Characteristic Description istic value 21 ... Supply voltage Rated 110 V DC Rated voltage range 77 V DC / 138 V DC Connection type 5-pin, “K”-coded M12 connector Casing IP40 Metal Certificates and declarations...
-
Page 23: Device Views
3 - Description 3.2 - Device views 3.2. Device views 3.2.1. Front view Figure 1. Front view of a device variant with 20 ports (non- PoE) Power Digital IN 13 14 15 16 17 18 19 20 1 2 3 4 5 6 7 8 9 10 11 12 Status Power... - Page 24 3 - Description 3.2 - Device views Table 2. Description of device elements: Front view of a device variant with 20 ports (non-PoE) Supply voltage connection 5-pin, “K”-coded M12 socket Digital input / Signal contact 5-pin, “A”-coded M12 socket (male) V.24 interface 5-pin, “A”-coded M12 socket (female) LED display elements for port status BXP60/62...
- Page 25 3 - Description 3.2 - Device views Figure 2. Front view of a PoE device variant with 28 ports Table 3. Description of device elements: Front view of a PoE device variant with 28 ports Supply voltage connection 5-pin, “K”-coded M12 socket Digital input / Signal contact 5-pin, “A”-coded M12 socket (male) V.24 interface...
-
Page 26: Power Supply
3 - Description 3.3 - Power supply Table 3. Description of device elements: Front view of a PoE device variant with 28 ports (continued) Connection for protective ground LED display elements for device status 3.3. Power supply The following options for power supply are available: 3.3.1. -
Page 27: Sd Card Interface
3 - Description 3.5 - Ethernet ports VT100 terminal settings Speed 9600 Baud Data 8 bit Stopbit 1 bit Handshake Parity none The V.24 interface is electrically insulated from the supply voltage. Table 4. Pin assignment: V.24 interface 5-pin, “A”-coded M12 socket (female) Function 3.4.2. -
Page 28: Twisted Pair Port 10/100/1000 Mbit/S
3 - Description 3.5 - Ethernet ports 3.5.1. Twisted pair port 10/100/1000 Mbit/s This port is an 8-pin, “X”-coded M12 socket. For information about the position on the device see chapter Device views on page The 10/100/1000 Mbit/s twisted pair port allows you to connect network components according to the IEEE 802.3 10BASE-T/100BASE- TX/1000BASE-T standard. -
Page 29: Twisted Pair Port 1/2.5/10 Gbit/S
3 - Description 3.5 - Ethernet ports Table 5. Pin assignment (continued) 8-pin M12 socket, “X”-coded 10/100 Mbit/s 1000 Mbit/s BI_DD+ 3.5.2. Twisted pair port 1/2.5/10 Gbit/s This port is an 8-pin, “X”-coded M12 socket. For information about the position on the device see chapter Device views on page The 1/2.5/10 Gbit/s twisted pair port allows you to connect network... -
Page 30: Support Of Poe
3 - Description 3.5 - Ethernet ports Table 6. Pin assignment 8-pin M12 socket, “X”-coded 1/2.5/10 Gbit/s BI_DB+ BI_DB- BI_DA+ BI_DA- BI_DC+ BI_DC- BI_DD- BI_DD+ 3.5.3. Support of PoE+/++ The device variants featuring hardware type characteristic value 2 support Power over Ethernet (PoE+/++). With the presence of the PoE power supply, a separate power supply for the connected device is unnecessary. - Page 31 3 - Description 3.5 - Ethernet ports Technical standard Description IEEE 802.3at PoE+ max. Powered Device (PD) Class 4 (30 W) IEEE 802.3bt PoE++ max. Powered Device (PD) Class 5, 6, 7, 8 (40 W, 51 W, 62 W, 71 W) 3.5.3.1. 10/100/1000 Mbit/s PoE+/++ port The 10/100/1000 Mbit/s PoE port allows you to connect network components as a powered device (PD) according to standards IEEE 802.3 10BASE-T/100BASE-TX/1000BASE-T, IEEE 802.3af/at and IEEE 802.3bt.
- Page 32 3 - Description 3.5 - Ethernet ports Table 8. Pin assignment: GE port 8-pin M12 socket, “X”-cod Function PoE+ PoE++ BI_DB+ Negative V Negative V BI_DB− Negative V Negative V BI_DA+ Positive V Positive V BI_DA− Positive V Positive V BI_DC+ –...
-
Page 33: Display Elements
3 - Description 3.6 - Display elements 3.6. Display elements After the supply voltage is set up, the Software starts and initializes the device. Afterwards, the device performs a self-test. During this process, various LEDs light up. 3.6.1. Device status Device status display elements provide information on the operational status of the device. - Page 34 3 - Description 3.6 - Display elements Figure 4. Device status: Location of the device status display elements on the device (device variants with 28 ports and PoE) Table 9. Power LED: Color, activity and meaning Color Activity Meaning none none Supply voltage is too low or not available yellow...
-
Page 35: Port Status
3 - Description 3.6 - Display elements Table 11. ACA LED: Color, activity and meaning Color Activity Meaning none none ACA storage medium not connected none none Device is starting and/or is not ready for operation yellow lights up ACA is not ready for operation green lights up ACA storage medium connected... -
Page 36: Poe Status
3 - Description 3.6 - Display elements Figure 6. Port status: Location of the port status display elements on the device (device variants with 28 ports and PoE) Table 13. Port status LED: Color, activity and meaning Color Activity Meaning none none Device detects an invalid or missing link... -
Page 37: Input/Output Interfaces
3 - Description 3.7 - Input/output interfaces Note: O nly PoE device variants have PoE display elements. Figure 7. PoE status: Location of the PoE status display elements on the device (device variants with 28 ports and PoE) Table 14. PoE status LED: Color, activity and meaning Color Activity Meaning... -
Page 38: Digital Input
3 - Description 3.7 - Input/output interfaces 3.7.1. Digital input For information about the position on the device see chapter Device views on page Table 15. Pin assignment Digital input / Signal contact Function 5-pin, “A”-coded M12 socket (male) Input + NO (Normally open contact) NC (Normally closed contact) Input -... - Page 39 3 - Description 3.7 - Input/output interfaces The signal contact is a potential-free changeover contact. If the device is not connected to a power supply, the changeover contact (5) is connected to the normally closed contact (3). The signal contact allows you to control external devices or monitor device functions.
-
Page 40: Installation
4 - Installation 4. Installation The devices have been developed for practical application in a harsh industrial environment. On delivery, the device is ready for operation. Perform the following steps to install and configure the device: • Checking the package contents on page 40 •... - Page 41 4 - Installation 4.2 - Mounting the device WARNING BURN HAZARD Failure to follow these instructions can result in injury or equipment damage. The surfaces of the device casing may become hot. Avoid touching the device while it is operating. If ambient temperatures are ≥45 °C (≥113 °F), exclusively install the device in “restricted access locations”...
-
Page 42: Mounting On A Flat Surface
4 - Installation 4.2 - Mounting the device NOTICE RISK OF POLLUTION AND REDUCED HEAT CONDUCTION Failure to follow these instructions can result in equipment damage. Pollution of the thermal pads on the back of the device may cause reduced thermal conductivity, thus limiting the performance of the device. - Page 43 4 - Installation 4.2 - Mounting the device • Exclusively use screws, clamps, or other appropriate means suitable for the installation, environment, and use case to ensure flawless operation of the device. Hirschmann recommends using 4 metal screws (M5). • Exclusively mount the device on a flat metal surface with the following specifications: ◦...
- Page 44 4 - Installation 4.2 - Mounting the device • Prepare the flat metal surface as outlined in Prerequisites on page • Remove the transport protection screws and port caps from the device (Figure 8: Mounting on a flat surface: Removing the transport protection screws and port caps on page 44).
- Page 45 4 - Installation 4.2 - Mounting the device Figure 9. Mounting on a flat surface: Removing the protective plastic film from the thermal pads on the bottom side of the device • Mount the device on the flat metal surface with 4 metal screws (M5) or other appropriate means (Figure 10: Mounting on a flat surface: Mounting the device on a flat metal surface on page...
- Page 46 4 - Installation 4.2 - Mounting the device Figure 10. Mounting on a flat surface: Mounting the device on a flat metal surface • Verifiy that the device is firmly mounted on the flat metal surface. • If the flat metal surface is not the final installation location: ◦...
-
Page 47: Grounding The Device
4 - Installation 4.3 - Grounding the device 4.3. Grounding the device CAUTION ELECTRIC SHOCK Failure to follow these instructions can result in minor injury, or equipment damage. Ground the device before connecting any other cables. Figure 11. Location of the ground connection on the device (left side of the device) Perform the following work steps: •... -
Page 48: Connecting The Supply Voltage
4.4 - Connecting the supply 4 - Installation voltage 4.4. Connecting the supply voltage Note: T he supply voltage is connected to the device casing through protective elements exclusively. WARNING ELECTRIC SHOCK Failure to follow this instruction can result in death, serious injury, or equipment damage. -
Page 49: Connecting Data Cables
4 - Installation 4.5 - Connecting data cables For the supply voltage to be connected, perform the following work steps: • Mount the power supply cable to the power supply connector of the device. You find the prescribed tightening torque in chapter: Supply voltage 110 V DC on page 56 •... - Page 50 4 - Installation 4.5 - Connecting data cables Perform the following work steps: • Connect the data cables. Note: F or operation according to EN 45545-2 HL3: Seal all unused connections and ports exclusively with metal protection screws and metal screw caps. The use of plastic protection screws is prohibited. Protection screws and screw caps made of metal are available as Accessories on page...
-
Page 51: Basic Settings
5 - Basic settings 5. Basic settings 5.1. Default settings • Ethernet ports: link status is not evaluated (signal contact) • IP address: The device looks for its IP address parameters using DHCP • Management password: Login: user, password: public (read only) Login admin, password: private (read/write) •... - Page 52 • Log on to the device again with your new password. Note: I f you lost your password, use the System Monitor to reset the password. For further information, see https://hirschmann-support.belden.com/en/kb/ required-password-change-new-procedure-for-first-time-login Installation BXP Family Release 03 - 08/2024...
-
Page 53: Monitoring The Temperature Of The Metal Plate
6 - Monitoring the temperature of the metal plate 6. Monitoring the temperature of the metal plate Operate the device below the specified maximum temperature of the metal plate exclusively. Climatic conditions during operation on page 60 The temperature displayed in the CLI (Command Line Interface) and the GUI (Graphical User Interface) is the internal temperature of the device. -
Page 54: Maintenance And Service
You find information and software downloads on the Hirschmann product pages on the Internet (https://www.belden.com). • Internal fuses are triggered only in the case of a detected error in the device. In case of damage or malfunction of the device, turn off the supply voltage and return the device to the plant for inspection. -
Page 55: Disassembly
8 - Disassembly 8. Disassembly 8.1. Removing the device WARNING ELECTRIC SHOCK Failure to follow these instructions can result in death, serious injury, or equipment damage. Disconnect the grounding only after disconnecting all other cables. Perform the following work steps: •... -
Page 56: Technical Data
9 - Technical data 9. Technical data 9.1. General data Table 18. General data Dimensions Dimension drawings on page 59 W × H × D The dimensions apply to all BXP device variants. Dimensions flat metal surface 530 mm × 270 mm × 3 mm (20.9 in × 10.63 in × 0.12 in) W ×... -
Page 57: Power Consumption/Power Output
9.3 - Power consumption/power 9 - Technical data output Table 19. Supply voltage with characteristic value MB (continued) Current integral I < 1 A Table 20. Ground connection Ground connection Ground connection Grounding the device on page 47 Connection type M4 screw Tightening torque min. -
Page 58: Digital Input
9 - Technical data 9.5 - Digital input 9.5. Digital input Table 23. Digital input Digital input Connection type 5-pin, “A”-coded M12 socket (male) Tightening torque 0.8 Nm (7.1 lb-in) Maximum permitted input voltage between -32 V DC and +32 V DC range Nominal input voltage +24 V DC Input voltage, low level, status “0”... -
Page 59: Dimension Drawings
9 - Technical data 9.6 - Dimension drawings 9.6. Dimension drawings 9.6.1. Dimension drawings Figure 12. Dimension drawings: Example of a non-PoE device variant with 20 ports Figure 13. Dimension drawings: Example of a PoE device variant with 28 ports Installation BXP Family Release 03 - 08/2024... -
Page 60: Climatic Conditions During Operation
9.7 - Climatic conditions during 9 - Technical data operation Figure 14. Dimension drawings: Drill hole locations and measurements for flat metal surface 20.9 57,5 57,5 2.26 16.34 2.26 9.7. Climatic conditions during operation Table 24. Climatic conditions during operation Climatic conditions during operation Temperature of the metal plate (measured at the Standard with conformal coating (characteristic value V) -
Page 61: Immunity
9 - Technical data 9.9 - Immunity Table 25. Climatic conditions during storage (continued) Climatic conditions during storage 0 °C ... +30 °C (+32 °F ... +86 °F) up to 10 years Humidity 1 % ... 95 % (non-condensing) Air pressure min. 700 hPa (+3000 m ASL; +9842 ft ASL) max. 1060 hPa (-400 m ASL; -1312 ft ASL) 9.9. -
Page 62: Electromagnetic Compatibility (Emc)
9.10 - Electromagnetic 9 - Technical data compatibility (EMC) 9.10. Electromagnetic compatibility (EMC) 9.10.1. EMC interference emission Table 28. EMC interference emission: Standard applications EN 61131-2, CE, FCC – applies to all devices Applicable standard Radiated emission FCC 47 CFR Part 15 Class A EN 55032 Class A... -
Page 63: Emc Interference Immunity
9.10 - Electromagnetic 9 - Technical data compatibility (EMC) Table 30. EMC interference emission: Railway applications (on vehicles) According to EN 50155 Applicable standard Radiated emission FCC 47 CFR Part 15 Class A EN 55032 Class A EN 61000-6-4 Fulfilled EMV 06 Rev. 2.0 Class S1 Conducted emission FCC 47 CFR Part 15 Class A EN 55032 Supply connection... - Page 64 9.10 - Electromagnetic 9 - Technical data compatibility (EMC) Table 31. EMC interference immunity: Standard applications EN 61131-2, CE, FCC – applies to all devices (continued) Applicable standard EN 61000-4-4 Data line ±1 kV Voltage surges - power supply connection EN 61000-4-5 line/ground ±2 kV EN 61000-4-5...
- Page 65 9.10 - Electromagnetic 9 - Technical data compatibility (EMC) Table 32. EMC interference immunity: Railway applications (trackside) According to EN 50121-4 (continued) Applicable standard Conducted disturbances EN 61000-4-6 150 kHz ... 80 MHz 10 V Table 33. EMC interference immunity: Railway applications (on vehicles) According to EN 50155 Applicable standard Electrostatic discharge EN 61000-4-2...
-
Page 66: Accessories
9 - Technical data 9.11 - Accessories 9.11. Accessories Table 34. General accessories Article Order number AutoConfiguration Adapter ACA31 942074001 Field attachable connector for the power supply, M12, “K”-coded, for crimp con 934935002 nections with wire diameter 1.5 mm (AWG16) Network management software Industrial HiVision 943156xxx Protection screw for M12 socket, metal, IP65/67/69K (25 pieces) 942057001... -
Page 67: Underlying Technical Standards
9.14 - Underlying technical 9 - Technical data standards Table 36. Order numbers for standard variants (continued) Device Product code Order number BXP60 20TX-EECC- BXP62-140006KKSHF9-EMBFS9H 942334005 HV-2A HSE2AXX.X.XX BXP60 20TX-EECC- BXP62-140006KKSHF9-EMBFS9H 942334006 HV-3A HSE3AXX.X.XX BXP60 28TX-EECC- BXP62-220006KKSHFF-EMBFS9H 942334007 HV-2A HSE2AXX.X.XX BXP60 28TX-EECC- BXP62-220006KKSHFF-EMBFS9H... - Page 68 9.14 - Underlying technical 9 - Technical data standards Table 37. List of the technical standards (continued) EN 50121-4 Railway applications – EMC – Emission and immunity of the signaling and telecommunications apparatus (Rail Trackside) EN 50155 Railway applications – Electronic equipment on rail vehicles EN 61131-2 Programmable controllers –...
-
Page 69: Further Support
For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You find the addresses of our partners on the Internet at: https://www.belden.com A list of local telephone numbers and email addresses for technical support directly from Hirschmann is available at: https://hirschmann-support.belden.com... - Page 70 Installation BXP Family Release 03 - 08/2024...
