M380HL/M430WL Installation Guide
Ceiling Mounted and Desktop
Contents
Product Description, Lens Specs, Notes__________________________Pg 1
Formulas, Diagrams, Distance Charts___
Cabinet Dimensions
Ceiling Mount_________________________________
Control Codes

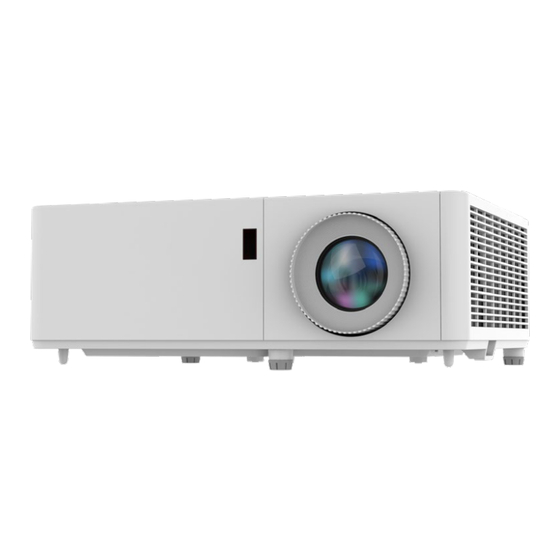

Product Description
Type: 1-Chip DLP Projector
0.65" DMD
Resolution:
M380HL: 1920 x 1080
M430WL: 1280 x 800
Fan Noise: 34dB / 31dB @ 1 meter
Power Consumption:
250W (max) / 240W (typical)
Lens Specifications
Throw Ratio: M380HL: 1.4 – 2.2:1 (for 100" diagonal)
M430WL: 1.5 – 2.3:1 (for 100" diagonal)
Offset Angle: M380HL: 7.7° - 15.4° (for 100" diagonal)
M430WL: 7.6° - 15.4° (for 100" diagonal)
Screen Sizes: 30" - 300" diagonal (16:9)
30" - 300" diagonal (16:10)
Notes
For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table.
• All calculations are based on a 16:9 or 16:10 aspect ratio.
Distances are in inches, for millimeters multiply by 25.4.
•
• Distances may vary ±5%.
www.sharpnecdisplays.us/
Sharp NEC Display Solutions of America, Inc.
Pg 2-4
Pg 5-6
Pg 7
Pg 8
Dimensions: 13.3" (W) x 4.7" (H) x 10.4" (D)
Weight:
Brightness: M380HL: 3800 Lumens
BTU's:
Focal Length:
F/#:
Manual Focus/Manual Zoom/Manual Lens Shift
M380HL/M430WL
9.7 lbs
M430WL: 4300 Lumens
853 BTU/hour
M380HL: 19.2mm – 23.0mm
M430WL: 17.4mm – 29.0mm
2.5 – 3.26
Rev 1.2
Page 1 of 8
