Rinnai I-Series Plus IP060160C Manual

Rinnai I-Series Plus IP060160C Manual

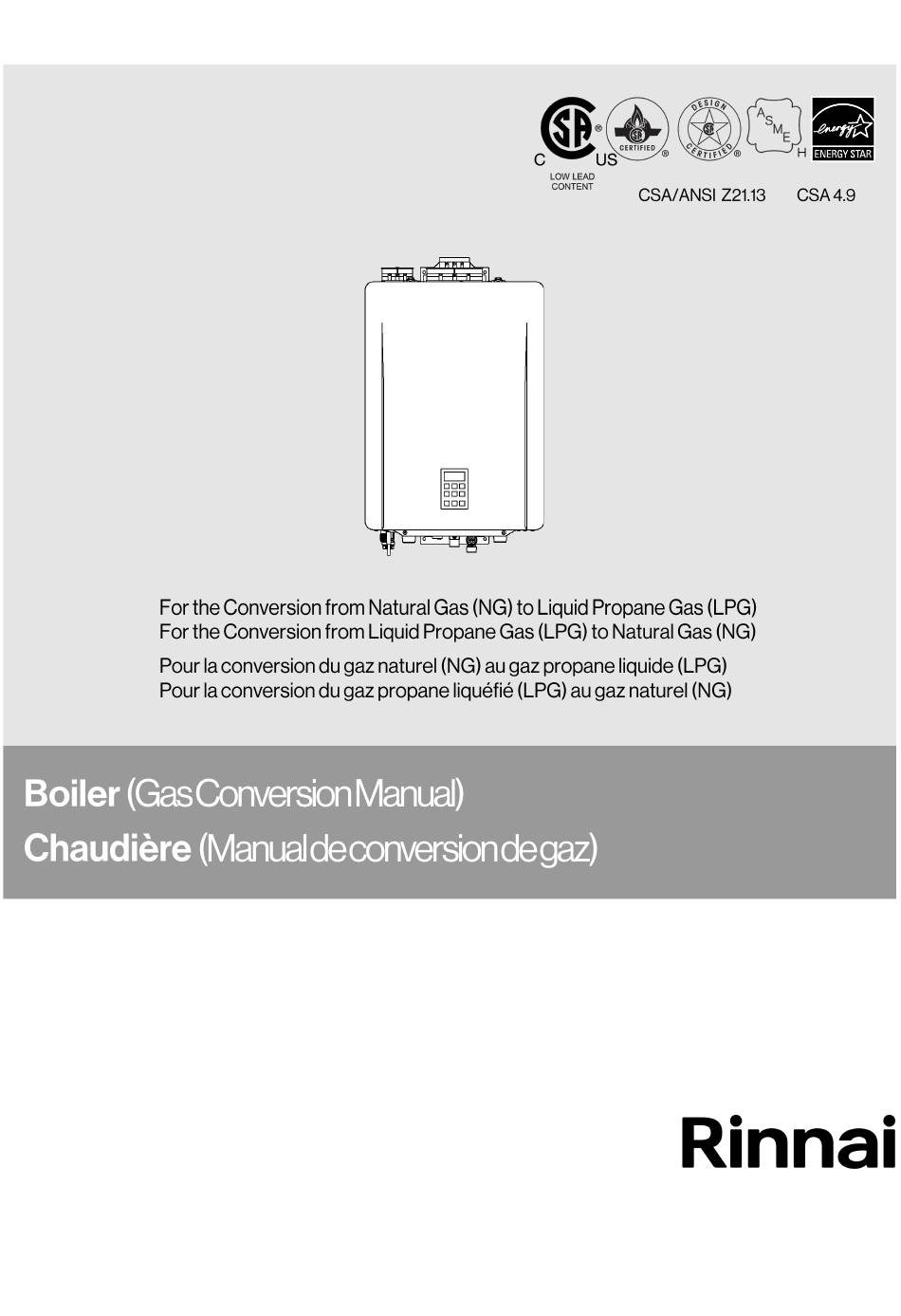

Boiler gas conversion, for the conversion from natural gas ng to liquid propane gas lpg
Hide thumbs Also See for I-Series Plus IP060160C:

Advertisement

Available languages

Available languages

Quick Links

Download this manual
●

Advertisement

loading
Need help?

Need help?

Do you have a question about the I-Series Plus IP060160C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rinnai I-Series Plus IP060160C

Summary of Contents for Rinnai I-Series Plus IP060160C

  • Page 1 ●...
  • Page 2 This conversion kit shall be installed by a qualified installer, WARNING service agency, or the gas supplier in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, an explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life.
  • Page 3 For installations in Canada, the conversion shall be carried out in accordance with the requirements of the provincial authorities having jurisdiction and in accordance with the requirements of the CGA- B149.1, Natural Gas and Propane Installation Code or CAN/CGA-B149.2 Installation Code. Pour les installations au Canada, la conversion doit être effectuée conformément aux exigences des autorités provinciales compétentes et conformément aux exigences du CGA-B149.1, Code d'installa- tion du gaz naturel et du propane ou CAN/CGA-B149.2.
  • Page 4 IMPORTANT The French manual continues on page 10. (Le manuel en français continue à la page 10.) Combi Heat-Only (Solo) Models IP060199C, IP090099C, Models IP060S, IP090S, IP120S, IP150S IP090160C, IP090199C, IP120199C, IP150199C Natural Gas: Natural Gas: Supply • Minimum: 3.5 in. W.C. (0.87 kPa) Supply Pressure •...
  • Page 5 Model Conversion Plate Conversion Manual Type Number IP060160C NG/LP IP090099C NG/LP IP090160C NG/LP NG/LP IP090199C NG/LP IP120199C NG: 800000208 804000124 800000194 LP: 800000209 IP150199C NG/LP IP060S NG/LP IP090S NG/LP IP120S NG/LP IP150S NG/LP Kit includes conversion plate and conversion manual. You Will Need (Field-Supplied): •...

  • Page 6: Natural Gas

    1. Locate the PC Board (lower left side of unit). 2. Locate the PC Board buttons on the PC Board. 3. Press and hold the SW1 left button on the PC Board for five seconds. 00-A appears. Figure 1 PC Board Figure 2 4.
  • Page 7 1. Check the normal operating sequence: a. When you press the ON/OFF button, the LED display will illuminate, the combustion fan will begin to run if water is flowing, and the spark will ignite the main burner. b. This boiler has an automatic ignition system. When the main burner has lit, the “In Use” lamp will glow red and the spark will stop.
  • Page 8 1. Enter the required information on the conversion rating plate label (shown below): Figure 6 2. Affix the conversion rating plate label on top of the existing rate plate. DO NOT cover up the certification logos on the existing rating plate. Figure 7 DO NOT place label over certification logos.

  • Page 9: For Your Safety Read Before Operating

    FOR YOUR SAFETY READ BEFORE OPERATING WARNING: If you do not follow these instructions EXACTLY, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance does not have a pilot. It is equipped with an ignition device which automatically lights the burner.
  • Page 10 IMPORTANT The French manual continues below. (Le manuel en français se poursuit ci-dessous.) Chauffage Uniquement Combi (Solo) Modèles IP060S, IP090S, IP120S, IP150S Modèles IP060199C, IP090099C, IP090160C, IP090199C, IP120199C, IP150199C Pression Gaz natural: Pression Gaz natural: d’alimen- d’alimen- • Minimum: 3.5 po de c.e. (0,87 kPa) •...
  • Page 11 Type de Numéro de Plaque de Manual de Modèle trousse conversion conversion IP060160C NG/LP IP090099C NG/LP IP090160C NG/LP NG/LP IP090199C NG/LP IP120199C NG: 800000208 804000124 800000194 LP: 800000209 NG/LP IP150199C IP060S NG/LP IP090S NG/LP IP120S NG/LP IP150S NG/LP Le kit comprend une plaque de conversion et un manuel de conversion. Vous aurez besoin (fourni sur place) : •...
  • Page 12 1. Localisez la carte PC (côté inférieur gauche de l'unité). 2. Localisez les boutons de la carte PC sur la carte PC. 3. Appuyez et maintenez le bouton gauche SW1 sur la carte de circuit imprimé pendant cinq secondes. 00-A apparaît. Figure 1 Carte contrôleur Figure 2...
  • Page 13 1. Vérifiez le déroulement d’une séquence de fonctionnement normale: a. En appuyant sur la touche « ON/OFF » (Marche/Arrêt), l’affichage LED s’allume, le venti- lateur de combustion se met en marche en présence d’écoulement d’eau et une étincelle allume le brûleur principal. b.
  • Page 14 1. Inscrivez les renseignements requis sur l'étiquette de la plaque signalétique (voir ci-dessous) : Figure 6 2. Apposez l’étiquette de la plaque signalétique de conversion sur la plaque tarifaire existante. NE cachez PAS les logos de certification sur la plaque signalétique existante. Figure 7 NE PAS placer d’étiquette sur les logos de certification.

  • Page 15: Instructions D'utilisation

    POUR VOTRE SÉCURITÉ, À LIRE AVANT UTILISATION AVERTISSEMENT: Le NON-RESPECT PRÉCIS de ces instructions peut provoquer un incendie ou une explosion entraînant des dégâts matériels, des blessures corporelles ou la mort. Cet appareil n’a pas de veilleuse. Il est équipé d’un système d’allumage qui enflamme automatiquement le brûleur.
