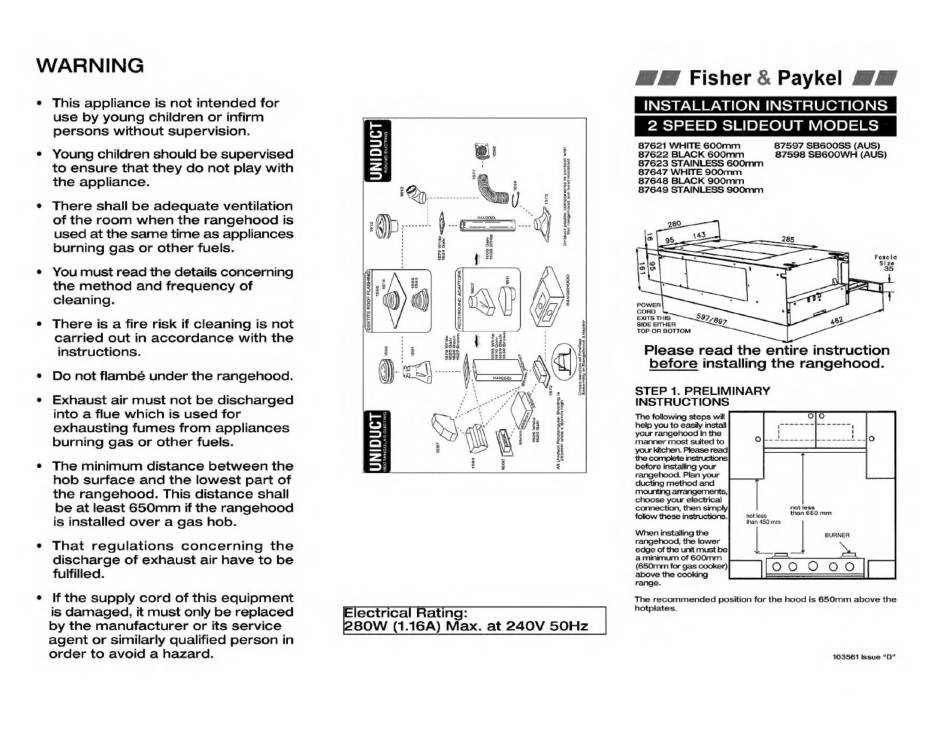

Fisher & Paykel 87621 Installation Instructions

WARNING
This appliance is not intended for
use by young children or infirm
persons without supervision.
Young children should be supervised
to ensure that they do not play with
the appliance.
There shall be adequate ventilation
of the room when the rangehood is
used at the same time as appliances
burning gas or other fuels.
You must read the details concerning
the method and frequency of
cleaning.
There is a fire risk if cleaning is not
carried out in accordance with the
instructions.
Do not flambé under the rangehood.
Exhaust air must not be discharged
into a flue which is used for
exhausting fumes from appliances
burning gas or other fuels.
The minimum distance between the
hob surface and the lowest part of
the rangehood. This distance shall
be at least 650mm if the rangehood
is installed over a gas hob.
That regulations concerning the
discharge of exhaust air have to be
fulfilled.
If the supply cord of this equipment
is damaged, it must only be replaced
by the manufacturer or its service
agent or similarly qualified person in
order to avoid a hazard.
Uniduct plastic components in contact with
the rangenoed are heat reaatant
RANGEHOOD
ectrical Rating:
280W (1.16A) Max. at 240V 50Hz
ÆA Fisher & Paykel SÆ
INSTALLATION INSTRUCTIONS
2 SPEED SLIDEOUT MODELS
87597 SB6OOSS (AUS)
87598 SB600WH (AUS)
87621 WHITE 600mm
87622 BLACK 600mm
87623 STAINLESS 600mm
87647 WHITE 900mm
87648 BLACK 900mm
87649 STAINLESS 900mm
SIDE EITHER
TOP OR BOTTOM
Please read the entire instruction
before installing the rangehood.
STEP 1. PRELIMINARY
INSTRUCTIONS
The following steps will
help you to easily install
650 mm
then simply not less
i q not less than
than 450 mm
| BURNER
The recommended position for the hood is 650mm above the
hotplates.
103561 Issue "D"
