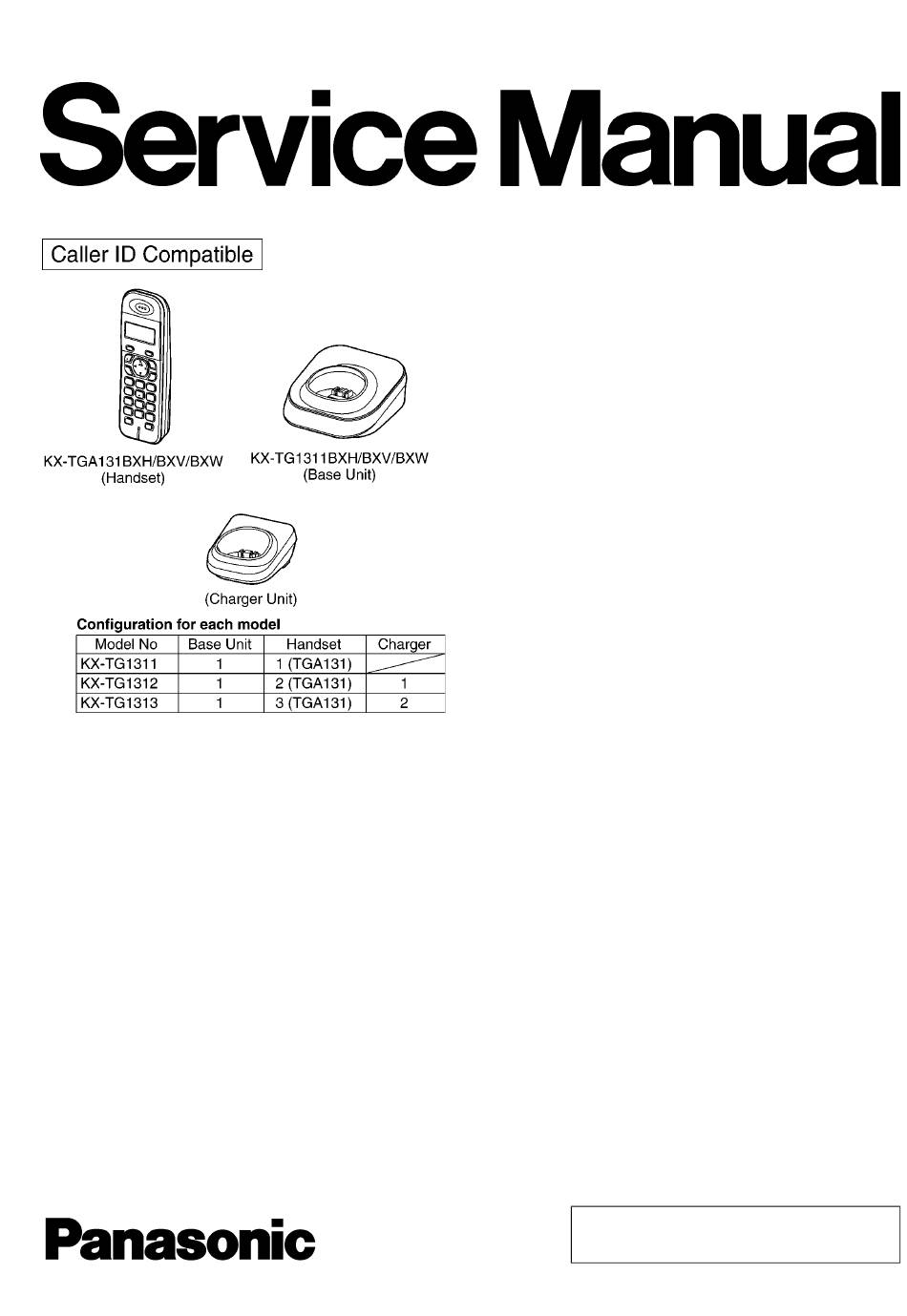

Panasonic KX-TG1311BXH Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Cordless Telephone
  5. KX-TG1311BXH
  6. Service manual
Panasonic KX-TG1311BXH Service Manual

Panasonic KX-TG1311BXH Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Telephone Equipment
KX-TG1311BXH
Model No.
KX-TG1311BXV
KX-TG1311BXW
KX-TG1312BXH
KX-TG1312BXV
KX-TG1312BXW
KX-TG1313BXH
KX-TGA131BXH
KX-TGA131BXV
KX-TGA131BXW
Digital Cordless Phone
Grey Version
Violet Version
White Version
(for Middle Near East and Africa)
© Panasonic Communications Co., Ltd. 2008. Unau-
thorized copying and distribution is a violation of law.
ORDER NO. KM40809709CE
