2.1 UNPACKING INSPECTION
After carefully unpacking the instrument, inspect the exter-
nal parts for damage to knobs, dials, indicators, surface areas,
etc. If there is damage, file a claim with the carrier who
transported the instrument. Retain the shipping container
and packing material for use in case reshipment is required.
2.2 PREPARATION FOR USE
Before connecting the instrument to line power, be sure the
rear panel 115/230V апа HI/LO switches are set to the value
nearest the line voltage and that the fuse is correct for the
switch setting. Be sure that the plug on the power cord is
the proper mate for the line receptacle.
AC Line Voltage Switch A Switch B Fuse (SB)
90-110 115 LO 3/8 amp
105 - 125 115 НІ 3/8 атр
180 - 220 230 LO 3/16 amp
210 - 250 230 НІ 3/16 атр
2.3 ELECTRICAL ACCEPTANCE CHECK
This checkout procedure verifies the generator operation. If
a malfunction is found, refer to the Warranty in the front
of the manual. An oscilloscope, counter, three short lengths
of 502 coax cable, a 509, feedthru load and а 0 to +2V
SECTION
INITIAL PREPARATION
voltage source are required (figure 2-1). Circled numbers
index controls and connectors to figure 3-1.
1. Preset the generator front panel controls as follows:
Control Position
Frequency Dial (1) 1.0
FREQ MULT X 1K
Digital Switch (4) 1.9999
DC OFFSET OFF
Waveform Selector © ^W,
AMPLITUDE Full cw
ATTENUATION 0
Dial/Digital Switch (2) Toward Dial
MODEL 171 OSCILLOSCOPE
VOLTAGE
SOURCE

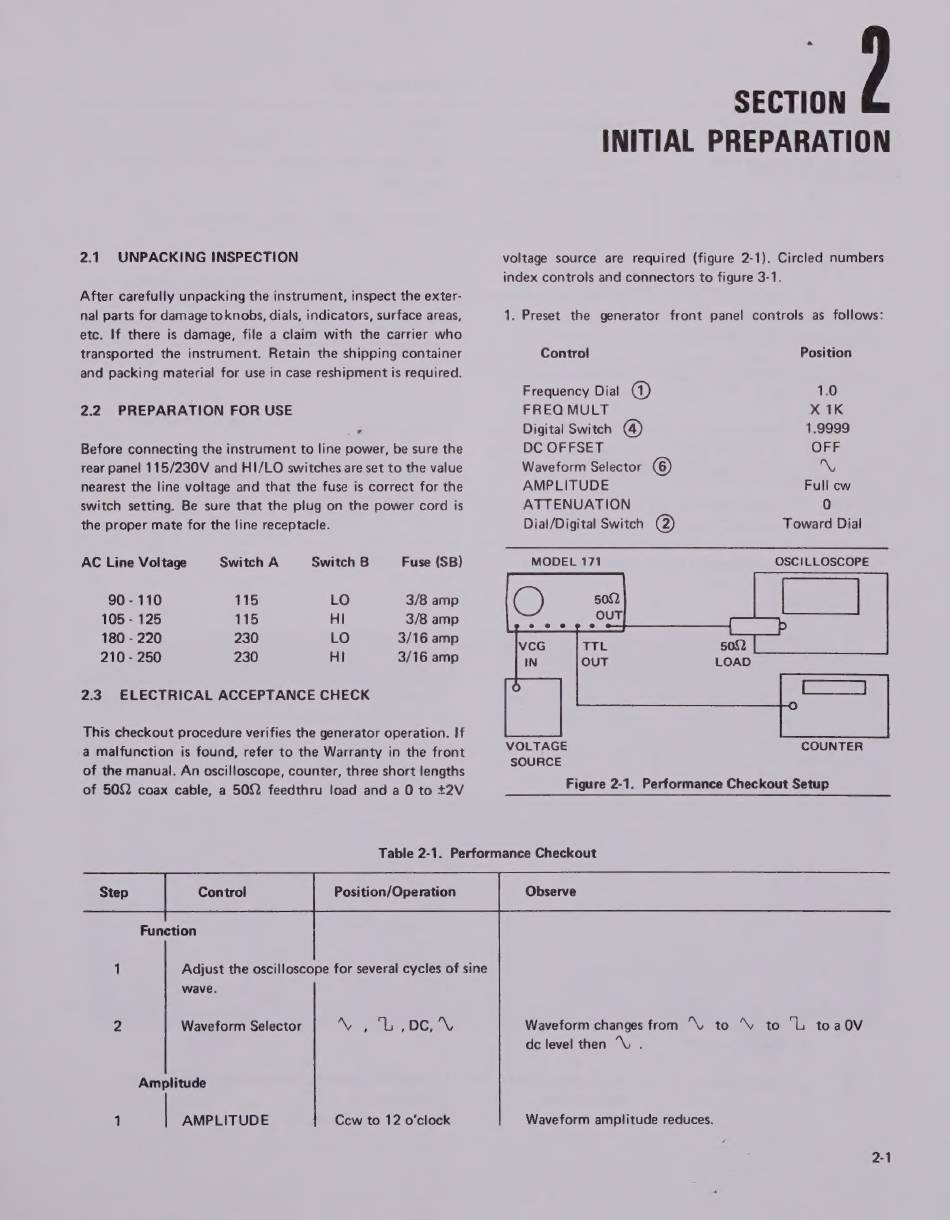

Figure 2-1. Performance Checkout Setup
COUNTER
Table 2-1. Performance Checkout
ш,
Function
1 Adjust the oscilloscope for several cycles of sine
wave.
2 Waveform Selector Ху аа ӨМ
Amplitude
1 AMPLITUDE Ccw to 12 o'clock
Observe
Waveform changes from \ to "Y to L toa0V
dc level then ^V .
Waveform amplitude reduces.
2-1
