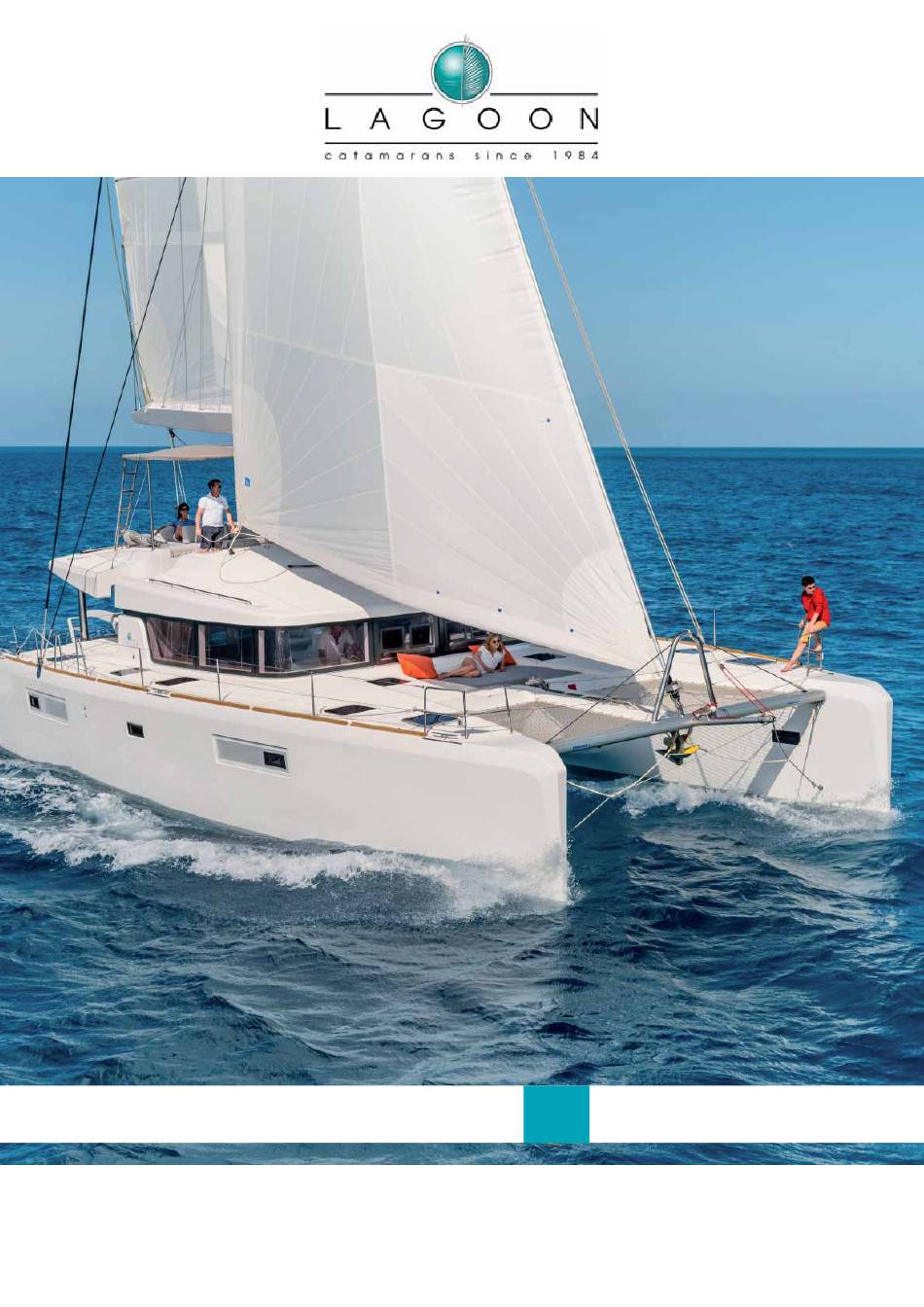

L A G O O N 5 2
O W N E R ' S M A N U A L
w w w . c a t a - l a g o o n . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 52 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lagoon 52

Summary of Contents for Lagoon 52

  • Page 1 L A G O O N 5 2 O W N E R ' S M A N U A L w w w . c a t a - l a g o o n . c o m...

  • Page 3: Table Of Contents

    C O N T E N T S OWNER'S MANUAL Updated 11. 2013 INTRODUCTION ..............................SPECIFICATIONS .............................. 2.1. Identifi cation sheet of your boat ........................2.2. Dimensions ................................2.3. Load ..................................... 2.4. Rigging & sails ................................SAFETY................................. 3.1. Fire ....................................12 3.2.
  • Page 4 You have just taken delivery of your new use it. Always ask an experienced professional for the LAGOON and, fi rst of all, we thank you for the trust maintenance or your boat, for the installation of further you have shown in buying a boat of our brand.

  • Page 5: Introduction

    I N T R O D U C T I O N The users of this boat are informed that: All the crew members have to be properly trained. Do not sail at maximum speed in areas of dense traffi c DANGER or in case of reduced visibility, strong winds or high waves.

  • Page 6: Specifications

    The sails are the principal means of propulsion of the Lagoon 52. The Lagoon 52 is in conformity with the Directive 2003 44 CE . REMINDER OF THE CATEGORIES Category A: the boat is designed for sailing in winds that may...

  • Page 7: Load

    S P E C I F I C AT I O N S Load NAVIGATION CATEGORIES Light vessel 27 000 27 000 27 000 27 000 Anchoring (anchors + chain + anchor chain) Outside mobile equipment Light displacement 27 620 27 620 27 620 27 620...
  • Page 8 NAVIGATION CATEGORIES Entry door curtain 4 additional batteries Battery chargers Inverter Generating unit Chart table motor control Various supports Antifouling Saloon TV Raymarine joystick Cabin radio systems Cabin TV sets Saloon hifi equipment Cockpit loudspeakers 4 Electronic pack Autopilot computer Radar Diving equipment 2 cameras under fl ybridge roof...

  • Page 9: Rigging & Sails

    S P E C I F I C AT I O N S Rigging & sails 2.4.1 Sails specifi cations: SAIL SURFACE AREA Dimensions MAIN SAIL 101 m2 21.730 m GENOA (MAXI) 70 m2 7,527 m STAYSAIL 44 m2 21,197 m CODE 0 152 m2 6,475 m...
  • Page 10 2.4.3 Mast handling diagram 1 - Jib / genoa halyard tensioner. 7 - Fore staysail halyard 2 - Jib / fore staysail sheet. (optional extra). 3 - Boom topping lift. 8 - Reef cunningham 2. 4 - Reef cunnigham 3. 9 - Reef cunningham 1.
  • Page 11 S P E C I F I C AT I O N S SAIL REDUCTION ATTENTION Any adjustment diff ering from these instructions may cause the rupture of the mast. In particular, the 100% jib with 2 reefs in the mainsail must be absolutely avoided. MAX.

  • Page 12: Safety

    SAFETY Fire 3.1.1 Risks The main risks are related to the motorization Please refer to the appropriate sections. (§4.1), to the electrical system (§4.3) and to the gas system (§4.4). 3.1.2 Fire fi ghting equipment and, eventually, 1 extinguisher within 1 meter of Portable extinguishers: to be provided by the the steering wheel.
  • Page 13 S A F E T Y 3.1.3 EMERGENCY EXITS The recommended emergency exits are indicated on the opposite diagram: 1 - Emergency exit 2 - Extinguisher 3 - Release pull handle of engine extinguisher 4 - Engine extinguisher 5 - Distress fl ares 6 - First aid kit 7 - VHF (optional) 8 - ................
  • Page 14 General points WARNING Do not install free hanging curtains or any other textile next to or over the cooking appliances or any other naked fl ame devices. Ensure the bilges remain clean and check regularly there is no vapor or leaks of fuel and gas. Do not store fl ammable products in the engine compartment.

  • Page 15: Visibility

    S A F E T Y Visibility Visibility from the command post may be hindered • Angle of the trim regulator with regard to the hull because of extreme leaning due to the vessel's trim (for the vessels equipped) or because of other factors linked to one or several •...

  • Page 16: Prevention Of Man Overboard

    Prevention of man overboard A swimming ladder is located on the aft A safety ladder is integrated in the aft starboard starboard transom. transom. Ensure that the means of returning on board is immediately accessible and usable by a person alone and in the water.

  • Page 17: Liferaft (Not Provided)

    S A F E T Y Life raft (not provided) Carefully read its user's guide. Security equipment location (to complete with your own safety equipment if necessary). 1 - Bridge fi tting for the fastening of the life line 7 - ......... 2 - Manual bilge pump 8 - .........

  • Page 18: Equipment

    EQUIPMENT For more information on the fi tted devices, read the provided manuals attached to the boat documentation. Motorization 4.1.1 Directions for use Before starting, ensure that: Do not install on this vessel a heavier or more powerful engine than what has been recommended: - the engine control is not engaged, this may induce a risk for the stability.

  • Page 19: Steering System

    E Q U I P M E N T 4.1.2 Fuel tanks: 2 x 500 liters DIESEL 1 - Fuel tanks deck fi llers 2 - Inside engine controls (optional extra) 3 - Engine fuel shut-off handle 4 - Fuel valve 5 - Fuel tank 6 - Engine / generator fuel shut-off handle 7 - Release pull handle of engine extinguisher...

  • Page 20: Electrical System

    Emergency tiller For the boats equipped with a steering wheel, an Fasten the emergency tiller with the screw and the emergency tiller is provided. Ensure it can be easily nut (#3). reached anytime. The emergency tiller is designed for sailing at Unscrew the tiller cover on the aft step, push the reduced speed only, in the event of a wheel emergency tiller in the print in the rudder head.
  • Page 21 E Q U I P M E N T 12 V CIRCUIT General 12 V cut-out...
  • Page 22 220 V CIRCUIT 12 V / 220 V - 3000 VA MULTIFUNCTION TOUCH SCREEN...
  • Page 23 E Q U I P M E N T 4.3.2 110 V - 220 V Electrical system Some boats are fi tted with a 110 V or 220 V circuit Do not modify the connections of the boat / shore (in their standard version or as an option according supply cable;...
  • Page 24 MANAGEMENT OF 110 V - 220 V SUPPLY The upper line concerns the HIGH LOAD busbar The chart table multifunction touch screen (220 V - 50 or 60 Hz). enables you to choose the power supply source The lower line concerns the COMFORT busbar (220 V (shore power socket, generator or inverter) for the - 50 Hz or 110 V - 60 Hz).
  • Page 25 E Q U I P M E N T 4.3.4 Location of the battery cut outs, electrical panels and appliances... Before replacing a fuse, switch off the cut outs. Some equipment appearing on the panel below may be optional. 1 - 12 V / 110 V - 220 V / 1500 Va inverter (standard) 2 - 12 V / 220 V / 100 Ah charger (standard) 3 - 12 V / 220 V / 100 Ah charger (optional extra) 4 - On board battery bank (standard)

  • Page 26: Gas And Fresh Water System

    Gas and fresh water system 4.4.1 Stove unit Close the taps before changing the cartridge and Never put fl ammable products over the stove unit immediately in case of emergency. (curtains, papers, towel...). Store the spare bottles in the ventilated spaces on Do not leave the boat unsupervised when gas or the deck or in the lockers intended to this purpose, alcohol devices are in use.
  • Page 27 E Q U I P M E N T 4.4.2 Gas system layout The locker under the forward cockpit seat is designed to hold two gas bottles. The circuit opening / closing valves are located in the under-sink cupboard. The boat in her U.S. version has an electrovalve located in the locker where the bottles are stored.

  • Page 28: Waste Holding Tanks

    4.4.4 Fresh water circuit 1 - Multifunction touch screen 2 - Starting switch of the water pump 3 - Fresh water tank 4 - Deck fi ller 5 - Pressure water pump 6 - Valve for shore fresh water supply 7 - Shore fresh water supply 8 - Cockpit shower 9 - Water heater...
  • Page 29 E Q U I P M E N T 4.5.2 Functioning of the black waters retention system The system functions as described on the diagram below. BLACK WATERS CIRCUIT 1 - Drainage cover on the deck 4 - Fresh water tank feed 2 - Waste holding tanks channel 3 - Outlet valve on the hull...

  • Page 30: Pumps, Valves And Sea-Cock Fi Ttings

    Pumps, valves and sea-cocks fi ttings 4.6.1 Pumps ATTENTION The bilge pump system is not designed to ensure buoyancy for the boat in case of damages. Do not let the pump turn empty. This may cause Check regularly the correct functioning of each bilge pump. damages to the pumps.
  • Page 31 E Q U I P M E N T Toilets outlet option front peak Grey waters outlet Toilets inlet option Front peak option front peak Toilets holding tank vent Drainage sea-cock Toilets holding tank vent elec WC elec WC opt Holding tank outlet Grey waters outlet Holding tank outlet...

  • Page 32: Anchoring, Mooring And Towing

    A N C H O R I N G , M O O R I N G A N D T O W I N G Keep the hatch or the well door sea tight. Always tow at low speed. Secure the tow line in such a way that it can be released under tension.

  • Page 33: Hoisting And Transport

    H O I S T I N G A N D T R A N S P O R T Diagram, dimensions and positions of the hoisting belts. Make sure the boat is stable on its tow line, as much lengthways as widthways. It is recommended to loosen the 7850 mm guard lines and pass the straps to...

  • Page 34: Environment

    2003/44/CE of 16 June 2003 and to French standard NF EN ISO 10240 of February 2005. As part of our commitment to the ongoing improvement of our products, Lagoon reserves the right to modify their design, outfi tting or equipment.
  • Page 36 162, quai de Brazza CS 81217 33072 Bordeaux Cedex - France Tél.33 + (0) 557 80 92 80 E-mail: info@cata-lagoon.com www.cata-lagoon.com...
