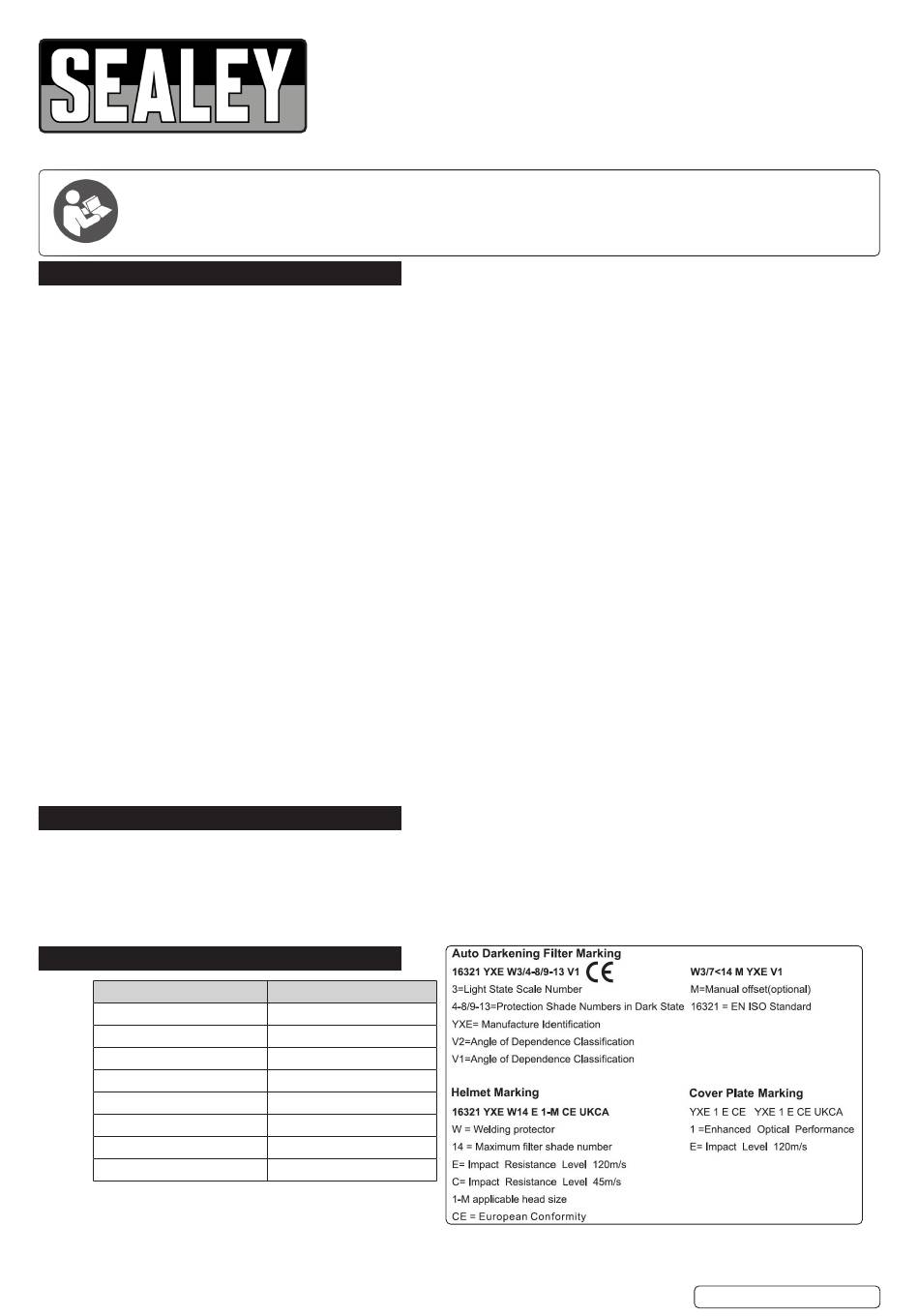

Sealey PWH603 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT
IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE
WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
NOTE: The Auto-Darkening welding helmet is designed to protect the welders eyes from harmful radiation including visible light,
ultraviolet radiation (UV) and infra-red radiation (IR) resulting from certain arc and gas welding processes when used in accordance
with user instructions. The helmet comes assembled, but must be adjusted to the fit the user. The delay time, sensitivity and shade
number for the application. See the table with recommended shade levels.
DO NOT place the helmet or the ADF on hot surfaces.
8
DO NOT immerse the filter in water and protect it from contact with liquid and dirt.
8
The material which may contact the wearer's skin can cause allergic reaction.
9
Any welding helmet worn over standard ophthalmic spectacles may transmit impact and create a hazard to the wearer in some circumstances.
9
DO NOT use for overhead welding or cutting. If this product is used for overhead welding or cutting operation, the molten metal drop
8
may burn through the helmet and cause injury.
Eye protector shall only be used against high-speed particles at room temperature.
9
DO NOT use automatic welding filter without a backing ocular.
8
DO NOT modify or use replacement parts. This will void the warranty and expose the operator to risk of personal injury.
8
WARNING! If the auto-darking filter does not darken when the arc ignites, stop welding immediately. Inspect the ADF and its power
‰
supply, and change if necessary.
DO NOT use any solvents or abrasive cleaning detergent on the filter screen or helmet components.
8
Recommended usage is 4 years. The period depends on various factors such as way of use, cleaning, storage and maintenance.
9
NOTE: Frequent inspections and replace sooner than 4 years if damaged/worn.
Always wear safety glasses or goggles under the welding helmet.
9
Wear protective clothing to protect from radiation, burns and spatter.
9
DO NOT use for driving/road use.
8
Protectors that have been subject to impact shall not be used, and shall be discarded and replaced.
9
A visual inspection of the product is essential before each use.
9
If the impact level symbols are not equal on both the lens/filter and the frame, then it is the lower level that shall be assigned to the
9
complete protector.
The protection marked in accordance with this standard is only provided when all lens and retention components are installed
9
according to the list or other manufacturer's instructions.
This product does NOT protect against physical or chemical hazards.
9
If the helmet, filter or cover plate is in any way damaged, they must be immediately replaced.
9
Replace the product after a mechanical impact.
9
2. INTRODUCTION
Fully digital flip up welding helmet and true colour technology give the best possible welding and grinding experience. Featuring an auto
darkening lens and separate clear grinding shield. For non-welding tasks simply flip up the lens and flip back down when welding or
cutting. Self-locking in the up-right position making non welding tasks easier. High quality variable shade 9-13 lens manufactured and
tested to ISO 16321. Fully automatic switching from light to dark on striking arc. Digital control panel easily switches between modes and
set delay, sensitivity and shade settings. Also includes memory save function to preset and save up to nine personalised settings. Battery
is easily replaceable but has solar back up to prolong the battery life. Suitable for MIG, TIG, MMA, gas welding, cutting and grinding.
3. SPECIFICATION
Model No:
Grinding Function:
Operating Temperature:
Operating Time Light/Dark:
Power:
PPE Category:
Shade Active:
Shade Inactive:
Viewing Area:
Notified Body; 1883
Type Examination cerificate no. C3669.1YXE
Carried out by ECS GmbH -
European certification service
© Jack Sealey Limited
AUTO DARKENING SOLAR POWERED TRUE
COLOUR FLIP UP WELDING HELMET - SHADE 9-13
PWH603
MODEL NO:
PWH603
Yes
-10 C to + 60 C
o o
0.04-2.0s (Digital Control)
Lithium Cell Battery
I
Weld- 9 -13 Cut- 4-8
3/4
108 x 82mm
Applicable standards:
EN 61000-6-3:2007+A1, EN IEC 6100-6-1:2019, ISO 16321-2:2021
Original Language Version
PWH603 Issue 2 01/02/23
