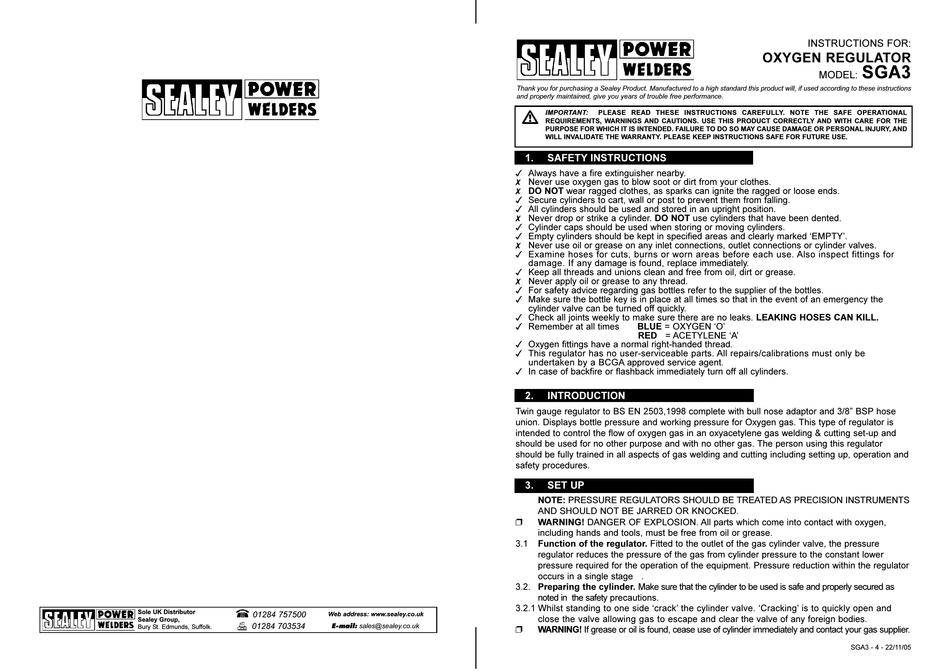

Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL
REQUIREMENTS, WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE
PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE OR PERSONAL INJURY, AND
WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
3 Always have a fire extinguisher nearby.
7 Never use oxygen gas to blow soot or dirt from your clothes.
7 DO NOT wear ragged clothes, as sparks can ignite the ragged or loose ends.
3 Secure cylinders to cart, wall or post to prevent them from falling.
3 All cylinders should be used and stored in an upright position.
7 Never drop or strike a cylinder. DO NOT use cylinders that have been dented.
3 Cylinder caps should be used when storing or moving cylinders.
3 Empty cylinders should be kept in specified areas and clearly marked ‘EMPTY’.
7 Never use oil or grease on any inlet connections, outlet connections or cylinder valves.
3 Examine hoses for cuts, burns or worn areas before each use. Also inspect fittings for
damage. If any damage is found, replace immediately.
3 Keep all threads and unions clean and free from oil, dirt or grease.
7 Never apply oil or grease to any thread.
3 For safety advice regarding gas bottles refer to the supplier of the bottles.
3 Make sure the bottle key is in place at all times so that in the event of an emergency the
cylinder valve can be turned off quickly.
3 Check all joints weekly to make sure there are no leaks. LEAKING HOSES CAN KILL.
BLUE = OXYGEN ‘O’
3 Remember at all times
RED = ACETYLENE ‘A’
3 Oxygen fittings have a normal right-handed thread.
3 This regulator has no user-serviceable parts. All repairs/calibrations must only be
undertaken by a BCGA approved service agent
3 In case of backfire or flashback immediately turn off all cylinders.
2. INTRODUCTION
Twin gauge regulator to BS EN 2503,1998 complete with bull nose adaptor and 3/8” BSP hose
union. Displays bottle pressure and working pressure for Oxygen gas. This type of regulator is
intended to control the flow of oxygen gas in an oxyacetylene gas welding & cutting set-up and
should be used for no other purpose and with no other gas. The person using this regulator
should be fully trained in all aspects of gas welding and cutting including setting up, operation and
safety procedures.
3. SET UP
NOTE: PRESSURE REGULATORS SHOULD BE TREATED AS PRECISION INSTRUMENTS
AND SHOULD NOT BE JARRED OR KNOCKED.
WARNING! DANGER OF EXPLOSION. All parts which come into contact with oxygen,
p
including hands and tools, must be free from oil or grease.
Function of the regulator. Fitted to the outlet of the gas cylinder valve, the pressure
3.1
regulator reduces the pressure of the gas from cylinder pressure to the constant lower
pressure required for the operation of the equipment. Pressure reduction within the regulator
occurs in a single stage .
3.2. Preparing the cylinder. Make sure that the cylinder to be used is safe and properly secured as
noted in the safety precautions.
3.2.1 Whilst standing to one side ‘crack’ the cylinder valve. ‘Cracking’ is to quickly open and
close the valve allowing gas to escape and clear the valve of any foreign bodies.
WARNING! If grease or oil is found, cease use of cylinder immediately and contact your gas supplier.
p
