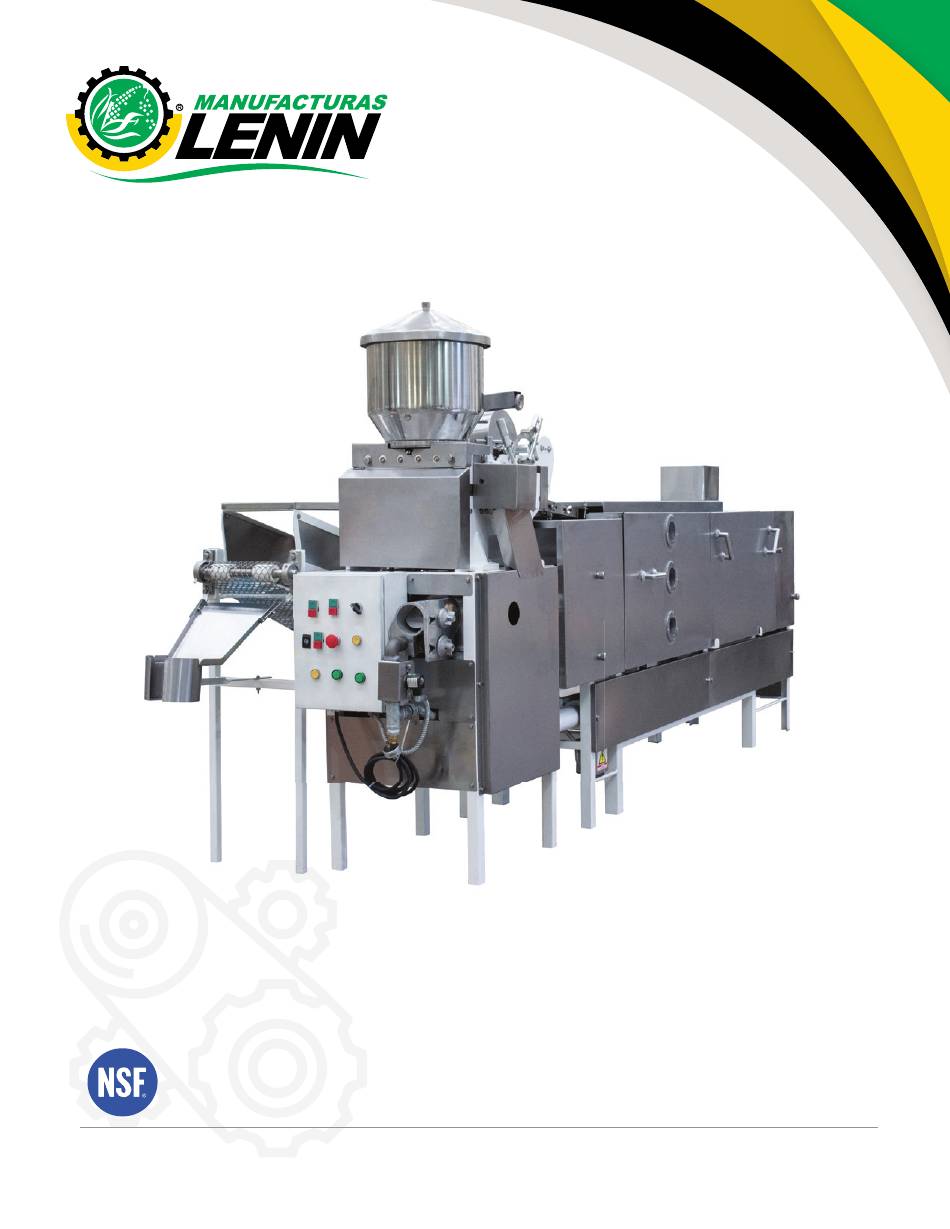

- Page 1 ML-90 CERTIFIED TORTILLA MACHINE OPERATION’S MANUAL MEXICANTORTILLAMACHINE.COM AN-VT-07-I,030823-00 MLN-220824-00...
- Page 2 The total or partial reproduction of this manual is prohibited by any means, whether printed or electronic; without the prior, express and written authorization of the author. ML-90 CERTIFIED TORTILLA MACHINE OPERATION’S MANUAL...
-
Page 3: Table Of Contents
INDEX GENERAL SAFETY INSTRUCTIONS CAUTION GAS AND ELECTRICAL INSTALLATION ML NSF COMPONENTS MANUAL AND AUTOMATIC IGNITION ELECTRONIC CIRCUIT ELECTRONIC IGNITION CABINET OPERATING INSTRUCTIONS Manual ignition Automatic ignition Operation HOPPER DISASSEMBLY CLEANING AND MAINTENANCE... -
Page 4: General Safety Instructions
ML-90 CERTIFIED TORTILLA MACHINE OPERATION´S MANUAL GENERAL SAFETY INSTRUCTIONS WARNING: To reduce the risk of injury, read all instructions properly. Failure to follow the instructions listed below can cause electric shock, fire, serious injuries, mutilation, and/or damage to the equipment. -
Page 5: Caution
ML-90 CERTIFIED TORTILLA MACHINE OPERATION´S MANUAL CAUTION The following symbols indicate the safety measures that must be taken before and after starting up the equipment. HOT HAZARD Some parts of the machine are hot while in operation. ELECTRICAL RISK In which you can suffer electric shocks if you do not comply with the electrical safety provisions. -
Page 6: Gas And Electrical Installation
ML-90 CERTIFIED TORTILLA MACHINE OPERATION´S MANUAL GAS AND ELECTRICAL INSTALLATION At the outlet of the gas tank, a model 10-080 high-pressure regulator must be installed, with a pressure gauge (0-7 Kg.) to verify the correct supply pressure. The pipe used for the connection is 3/4” in diameter, either L-type copper or 40-gauge black tubing. -
Page 7: Ml Nsf Components
ML-90 CERTIFIED TORTILLA MACHINE OPERATION´S MANUAL COMPONENTS HOPPER HEAD HOOD LID WITH STUB-END SLIDE MOTOR VALVE COOKING OVEN COOLER RECEIVER HOPPER COVER ELECTRONIC IGNITION CABINET BACKBOARD GRIDDLE CLUTCH LEVER... -
Page 8: Manual And Automatic Ignition Electronic Circuit
ML-90 CERTIFIED TORTILLA MACHINE OPERATION´S MANUAL MANUAL AND AUTOMATIC IGNITION ELECTRONIC CIRCUIT... -
Page 9: Electronic Ignition Cabinet
ML-90 CERTIFIED TORTILLA MACHINE OPERATION´S MANUAL ELECTRONIC IGNITION CABINET ITEM DESCRIPTION MOTOR’S IGNITION MAIN VALVE’S IGNITION MANUAL PILOT VALVE’S IGNITION CABINET LOCK EMERGENCY STOP SPARK PLUG’S MANUAL IGNITION AUTOMATIC IGNITION AUTO START INDICATOR LIGHT FLAME FAILURE INDICATOR LIGHT... -
Page 10: Operating Instructions
ML-90 CERTIFIED TORTILLA MACHINE OPERATION´S MANUAL MANUAL IGNITION Plug the machine into an electrical outlet Turn the emergency stop button to deactivate it and gas outlet Open the gas intake valve and press Turn the pilot valve knob, the oven engine start button... - Page 11 ML-90 CERTIFIED TORTILLA MACHINE OPERATION´S MANUAL Push the work valve off button The oven nozzles will turn on Turn the pilot valve knob, and Check the intensity of the flame in the nozzles, indicator and the burners will turn off...
- Page 12 ML-90 CERTIFIED TORTILLA MACHINE OPERATION´S MANUAL Push the work valve off button Turn the emergency stop button to activate it At the end of the day’s production Ñ it is important to turn off the WORKING VALVE first, then turn off the oven motors second, once the griddles have cooled DO NOT LET THE GRIDDLES HEAT UP FOR TOO LONG WITHOUT PRODUCT.
-
Page 13: Automatic Ignition
ML-90 CERTIFIED TORTILLA MACHINE OPERATION´S MANUAL AUTOMATIC ELECTRONIC IGNITION Turn the emergency stop button Press the automatic ignition button to energize the machine for 5 seconds The burners and nozzles will ignite, By pressing the automatic ignition button, the and after 15 seconds the burners will turn off... -
Page 14: Operation
ML-90 CERTIFIED TORTILLA MACHINE OPERATION´S MANUAL OPERATION Insert cutter into the head unit Put the dough in the hopper Raise clutch lever so that dough Adjust the thickness of the tortilla begins to recirculate with the ratchet Adjust the roundness of the tortilla... - Page 15 ML-90 CERTIFIED TORTILLA MACHINE OPERATION´S MANUAL Check uniform cooking, shape and roundness Upon obtaining the desired result, of the tortilla at the exit of the cooler start production Feed the hopper whenever necessary...
-
Page 16: Hopper Disassembly
ML-90 CERTIFIED TORTILLA MACHINE OPERATION´S MANUAL HOPPER DISASSEMBLY Loosen pressure chamber box knobs Lower coupling and extract pressure chamber Remove assembled auger by turning Loosen nut and remove crossbar rod counterclockwise and pulling up Loosen frame knob and remove Extract the augers by turning the central ones the hopper from the head. - Page 17 ML-90 CERTIFIED TORTILLA MACHINE OPERATION´S MANUAL Remove cutter...
-
Page 18: Cleaning And Maintenance
ML-90 CERTIFIED TORTILLA MACHINE OPERATION´S MANUAL CLEANING PROCEDURE WARNING: Cleaning the base and hopper must be carried out with the machine completely stopped to avoid accidents. CLEANING THE HOPPER 1. Remove the dough residue in the hopper by hand. 2. Disassemble the hopper 3. - Page 19 ML-90 CERTIFIED TORTILLA MACHINE OPERATION´S MANUAL The following fi gures show the schematic location of the parts that require lubrication.
- Page 20 ML-90 CERTIFIED TORTILLA MACHINE OPERATION´S MANUAL Lubricate griddle hinges with graphite Do not lubricate Lubricate gears, chains, reducer and self-aligning sprockets with oil. bearings. The following table shows the type of lubricant to put in all parts of the machine.
- Page 21 HEADQUARTERS AV. INDUSTRIAS #3655, ZONA INDUSTRIAL CP 78395 SAN LUIS POTOSÍ, SLP. MÉXICO 444 127 11 80 444 129 29 79 info@manufacturaslenin.mx MEXICANTORTILLAMACHINE.COM...
