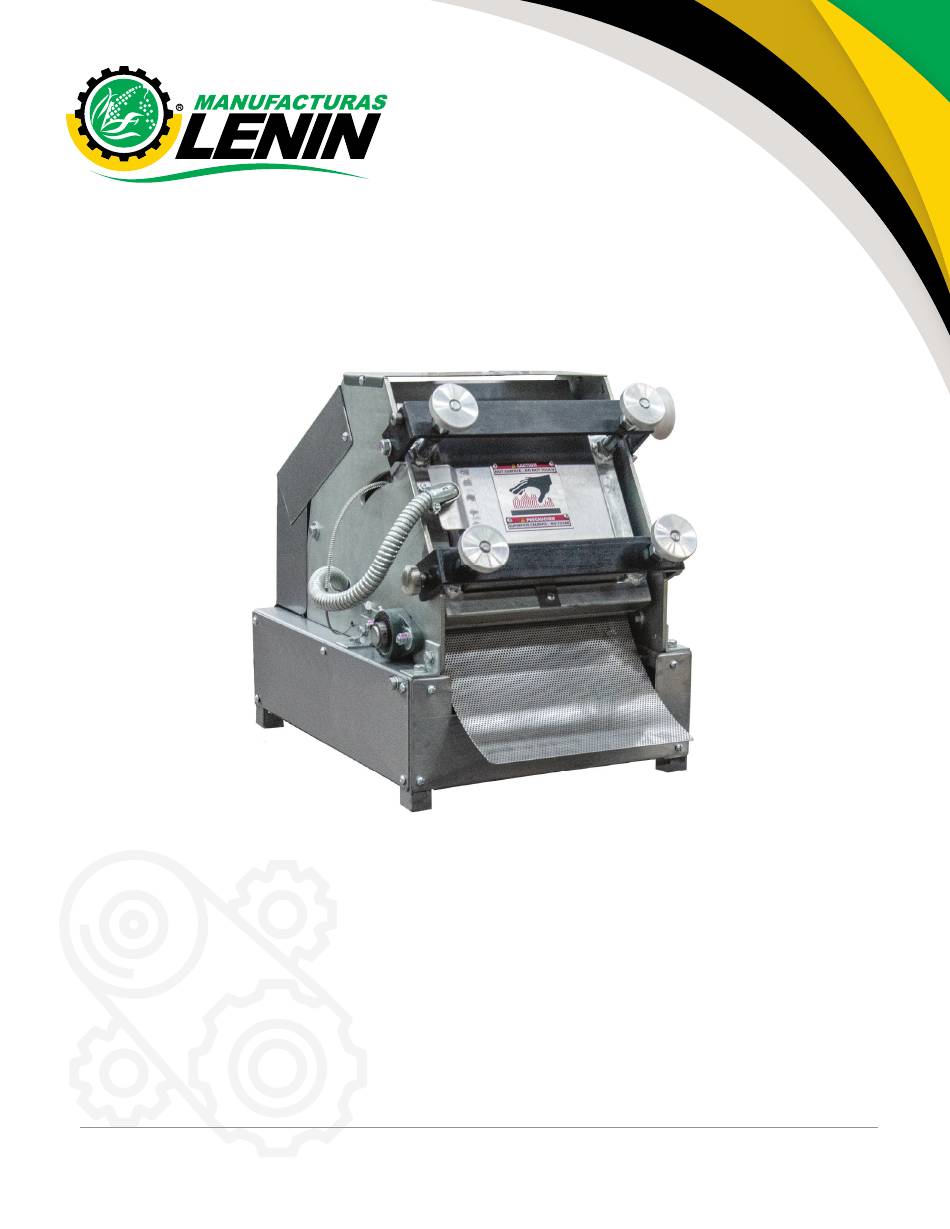

- Page 1 COUNTERTOP ECO LENIN PRESS OPERATION’S MANUAL MEXICANTORTILLAMACHINE.COM...
- Page 2 The total or partial reproduction of this manual is prohibited by any means, whether printed or electronic; without the prior, express and written authorization ot the author. COUNTERTOP ECO LENIN PRESS OPERATION’S MANUAL VER. 2.0 · FEBRUARY 2022...
- Page 3 INDEX GENERAL SAFETY INSTRUCTIONS CAUTION ELECTRICAL INSTALLATION COMPONENTS OPERATING INSTRUCTIONS CLEANING AND MAINTENANCE...
-
Page 4: General Safety Instructions
COUNTERTOP ECO LENIN PRESS OPERATION’S MANUAL GENERAL SAFETY INSTRUCTIONS WARNING: To reduce the risk of injury, read all instructions properly. Failure to follow the instructions listed below can cause electric shock, fire, serious injuries, mutilation and/or damage to the equipment. - Page 5 COUNTERTOP ECO LENIN PRESS OPERATION’S MANUAL CAUTION The following symbols indicate the safety measures that must be taken before and after starting up the equipment. HEAT HAZARD Some parts of the machine are hot while in operation. ELECTRICAL RISK In which you can suffer electric shocks, if you do not comply with the electrical safety provisions.
-
Page 6: Electrical Installation
Verify that the electrical connection is 220v. Inspect that there are no short circuits, no loose or bare wires. Ensure that all cables are isolated and without contact, check contactors and switches in good condition. It is recommended to use a 12 gauge cable for the installation of the Countertop Eco Lenin Press. ELECTRICAL INSTALLATION 220v electrical installation (or the machine’s specifi ed voltage). - Page 7 COUNTERTOP ECO LENIN PRESS OPERATION’S MANUAL COMPONENTS PLATE CLAMPING KNOBS THICKNESS ADJUSTMENT KNOBS SLIDER GEARMOTOR TEMPERATURE MOTOR ON/OFF CONTROL ON/OFF EMERGENCY STOP PYROMETER CONTROL PANEL LOWER AND UPPER PILOT LIGHT...
- Page 8 COUNTERTOP ECO LENIN PRESS OPERATION’S MANUAL Turn the temperature control switch ON Plug the machine to an electrical outlet Adjust the temperature to: 160° for 30 to 35 grams dough balls Turn the motor switch ON 180° for 60 to 70 grams dough balls The lower and upper pilot lights will turn on.
-
Page 9: Cleaning Procedure
And turn the knobs clockwise for thicker tortillas. CLEANING PROCEDURE WARNING: The Countertop Eco Lenin Press must be cleaned with the machine completely stopped to avoid accidents such as crushing. COUNTERTOP ECO LENIN PRESS CLEANING 1. Remove excess dough on both aluminum plates. - Page 10 COUNTERTOP ECO LENIN PRESS OPERATION’S MANUAL Plates with wheat flour Remove the upper plate from the press Clean both plates with a cloth Check that both plates are clean Place the upper plate back in the press Turn both knobs clockwise...
-
Page 11: Maintenance
COUNTERTOP ECO LENIN PRESS OPERATION’S MANUAL MAINTENANCE Clean the machine before and after using it. The duration of the spare parts will depend on the preventive maintenance and care taken to the machine. The more frequent this maintenance is done, the parts will have a longer life. - Page 12 HEADQUARTERS AV. INDUSTRIAS #3655, ZONA INDUSTRIAL CP 78395 SAN LUIS POTOSÍ, SLP. MÉXICO 444 127 11 80 444 129 29 79 info@manufacturaslenin.mx MEXICANTORTILLAMACHINE.COM...
