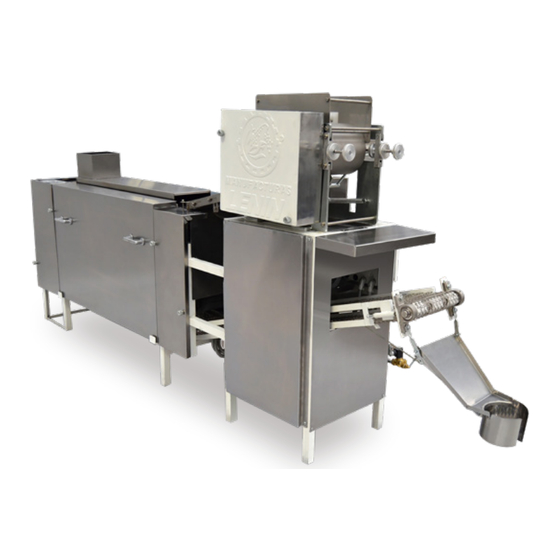

CERTIFICATED TORTILLA ROLLER MACHINE
CERTIFICATE:
C0312458-01
SAVE THIS MANUAL FOR FUTURE
CONSULTING
USER MANUAL
We are the best option in the tortilla
For more information, you could contact us by:
(444)127-11-80 or (444)126-02-34
mexicantortillamachine.com / tortilladoraslenin.com
MLR NSF
industry
WARNING: READ CAREFULLY THIS
INSTRUCTIVE BEFORE USING THE PRODUCT.
1 866 551 81 46

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MLR NSF and is the answer not in the manual?

Questions and answers

Summary of Contents for Manufacturas Lenin MLR NSF

  • Page 1 USER MANUAL CERTIFICATED TORTILLA ROLLER MACHINE MLR NSF CERTIFICATE: C0312458-01 We are the best option in the tortilla industry SAVE THIS MANUAL FOR FUTURE WARNING: READ CAREFULLY THIS CONSULTING INSTRUCTIVE BEFORE USING THE PRODUCT. For more information, you could contact us by:...
  • Page 2 CONDITIONS TO VALIDATE THE WARRANTY The seller guarantees that his equipment will be delivered in condition of use, free of material defects and undertakes to support the guarantee for up to six months from the date of installation, under the following terms and conditions: a) For thirty days from the date of installation, the seller will change the parts that show defects, free of charge for the buyer.
  • Page 3: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS WARNING: to reduce the risk of injury, read all instructions properly. Failure to follow the instructions listed below can cause electric shock, fire, serious bodily injury, mutilation, and damage to machinery. A) SAFETY IN THE WORK AREA •...
  • Page 4: Electrical Installation

    COMPONENTS CLUTCH SUPPORT LEVER BELL ADJUST KNOBS SWING HEAD RECEIVER TRANSPORTER MOTOR VALVE PANEL DE LIDS CHASSIS ENCENDIDO WITH SIGHT HOLES ELECTRÓNICO ELECTRICAL INSTALLATION a) Conductors shall be No. 12 gauge copper. b) If the power supply is three-phase, the Switch must be 3 x 30 A. c) If the power supply is single phase, the Switch must be 2 x 30 A.
  • Page 5: Gas Installation

    GAS INSTALLATION A high pressure regulator, model 10-080, with a pressure gauge (0-7 Kg) must be installed at the outlet of the gas tank in order to verify the correct supply pressure. The pipe used for the connection is ½ inch in diameter, either type L copper or black ced tube.
  • Page 6 Check that the cable is taut and that the Check that the cutter is correctly installed stainless steel mold rotates freely Turn on the machine with the green button Add dough manually Adhere the dough curtain to the front of the roller Raise the clutch lever Adjust the thickness of the tortilla by turning the knobs.
  • Page 7 VÁLVULA PILOTO VÁLVULA DE TRABAJO ENCENDIDO ELECTRÓNICO Open the gas valve Open the pilot valve VÁLVULA PILOTO VÁLVULA PILOTO VÁLVULA DE TRABAJO VÁLVULA DE TRABAJO ENCENDIDO ELECTRÓNICO ENCENDIDO ELECTRÓNICO Wait 10 seconds, press the electronic ignition button. Check that the burners are lit. If not, turn off the pilot valve Open the work valve and repeat step 12 VÁLVULA PILOTO...
  • Page 8: Cleaning Procedure

    CLEANING PROCEDURE WARNING: cleaning both the rollers and the base should be done with the machine completely stopped to avoid accidents such as bruises. CLEANING THE FRONT ROLLER 1. Remove the dough residues from the front roller at full stop by hand. 2.
  • Page 9: Procedimiento De Limpieza

    PROCEDIMIENTO DE LIMPIEZA The following figures show the schematic location of the parts that require lubrication. Inject the lubricant into this hole Lubricate Gears, Chains and Sprockets with Food Grade Grease The following table shows the type of lubricant to be applied to all parts of the machine LUBRICANT (A) Food grade grease It is recommended to change the...
