thomann Studio Table XL Black Quick Start Manual

Scope of delivery
ö #
1 ×
( )
1 ×
. /
1 ×
A B
6 ×
G H
8 ×
M N
30 ×
$
1 × 1 ×
*
2 × 1 ×
0
1 × 2 ×
C
14 × 2×
I
6 × 4 ×
O
2 × 2 ×

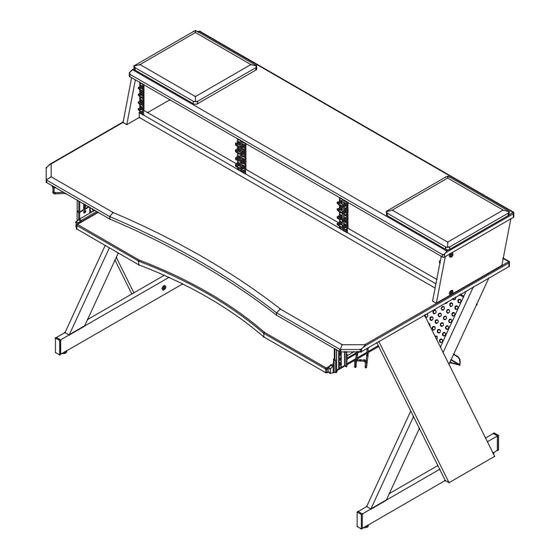

Compact worktable for recording studios and production studios
ƒ
Integrated 19-inch racks with 3 × 3 rack units (RU)
ƒ
Rotating monitor base plates
ƒ
2 × headphone holder
ƒ
Material: Plastic-coated MDF boards,
ƒ
powder-coated metal
Colour: Black (item no. 554425), wood decor (item no. 554424)
ƒ
Total dimensions (W × H × D):
ƒ
1,510 mm × 996 mm × 786 mm
Dimensions of top shelf (W × H × D)
ƒ
1,510 mm × 18 mm × 300 mm
Dimensions of worktop (W × H × D)
ƒ
1,510 mm × 25 mm × 765 mm
Dimensions of keyboard drawer (W × H × D)
ƒ
1,200 mm × 18 mm × 340 mm
Keyboard drawer can be pulled out up to 30 cm
ƒ
Max. load capacity of worktop: 20 kg
ƒ
Max. load capacity of keyboard drawer: 15 kg
ƒ
Max. load capacity of monitor base plate: 15 kg each
ƒ
Height of worktop: 783 mm
ƒ
Weight: 45.4 kg
ƒ
% &
1 ×
+ ,
2 ×
1 2
3 ×
D E
15 ×
J K
4 ×
P Q
4 ×
Studio Table XL Black
Studio Table XL Wood
'
1 ×
-
1 ×
3
4 ×
F
4×
L
7 ×
1 ×
EN
1 ×
1 ×
3 ×
3 ×
6 ×
