Summary of Contents for Taramps HD 10000

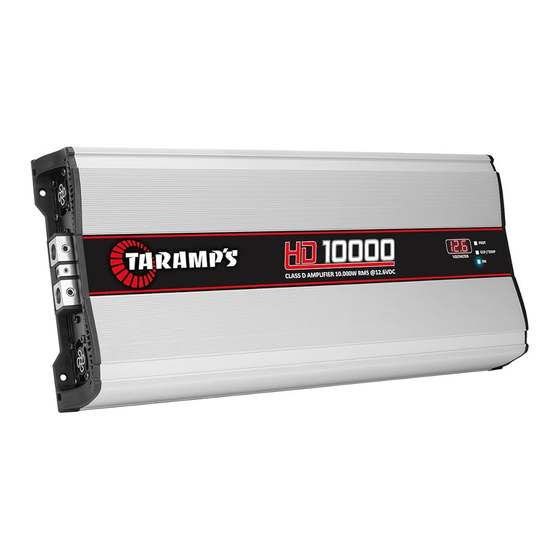

- Page 1 Instruction manual AMPLIFIER - 10.000W RMS - 1 OHM The installation of this product must be made by a qualified professional.
-
Page 2: Term Of Warranty
12 months from the date of purchase. In case of defect during the warranty period, TARAMPS responsibility is limited to the repairing or replacement of the device of its own making. -
Page 3: Safety Requirements
CAUTION injury to user or product damage. Taramps reserves the right to modify the contents of this document at any time without prior notice and does not have the obligation to apply the changes in units which were previously produced. - Page 4 Functions & inputs 1 - INPUT: Inputs of signals to be amplified. Connect these signals to RCA outputs of CD/DVD Player, using good quality shielded cables to avoid noise interference. 2 - OUT: Audio signal output. Sends the same input (IN) signal to another amplifier, allowing cascading.
- Page 5 Output & power supply connector POWER INPUT 1 - FAN: This is amplifier, has two internal fan, and cannot be blocked. This fan is controlled by an intelligent system (Smart Cooler). The fan only runs at maximum speed after the product reach a certain temperature level.
-
Page 6: Installation
10mm² (7 AWG) 10mm² (7 AWG) Illustrative images Head Unit RCA Cable Taramps The entire aluminum surface of CAUTION the amplifier acts as a heat sink. The normal working temperature is 70°C (158°F). Avoid contact with this surface when the amplifier... -
Page 7: Technical Features
50°C case temperature and 12.6 V supply voltage. The values as above are typical and may vary, due to electronic components tolerance or manufacturing process. For further informations or questions, visit our website or contact TARAMPS support. f =5K... - Page 8 Manufactured by: TARAMPS ELECTRONICS LTDA TAX ID: 11.273.485/0001-03 Highway: Julio Budisk, SN, KM 30 Alfredo Marcondes - SP Made in Brazil...
