Particle ONE402MEA Manual page 4

Description
Num ID
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

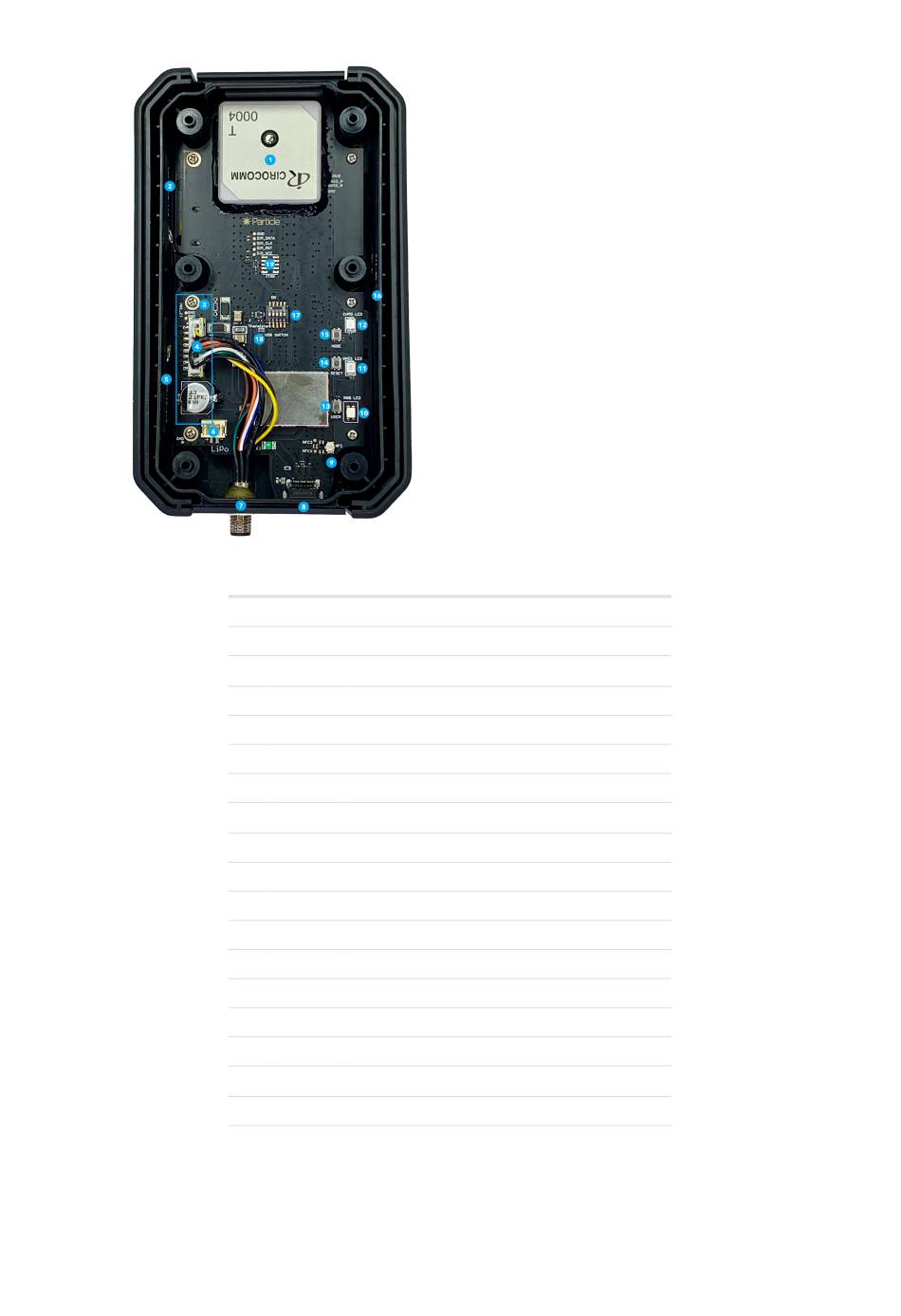

Description
GNSS Antenna
Wi-Fi Antenna (mounted on side of case)
NFC Antenna (mounted on lid)
Power and I/O connector (B8B-PH)
BLE Antenna (mounted on side of case)
LiPo Connector
M8 8-pin male connector (mounted on side of case)
2
USB-C
NFC connector (connects to NFC antenna on lid)
RGB Status LED
GNSS LED GNSS Status LED
CHRG LiPo charge status LED
USER User Button
RESET RESET Button
MODE MODE button
Cellular Antenna (mounted on side of case)
3
USB-C switch
Thermistor
JTAG connector (not populated)
1
4
