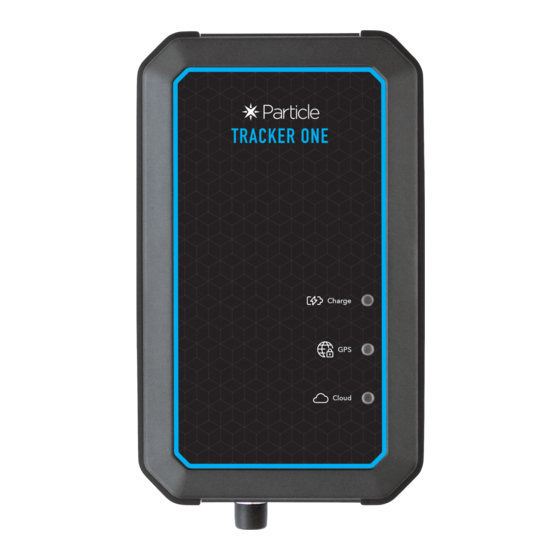

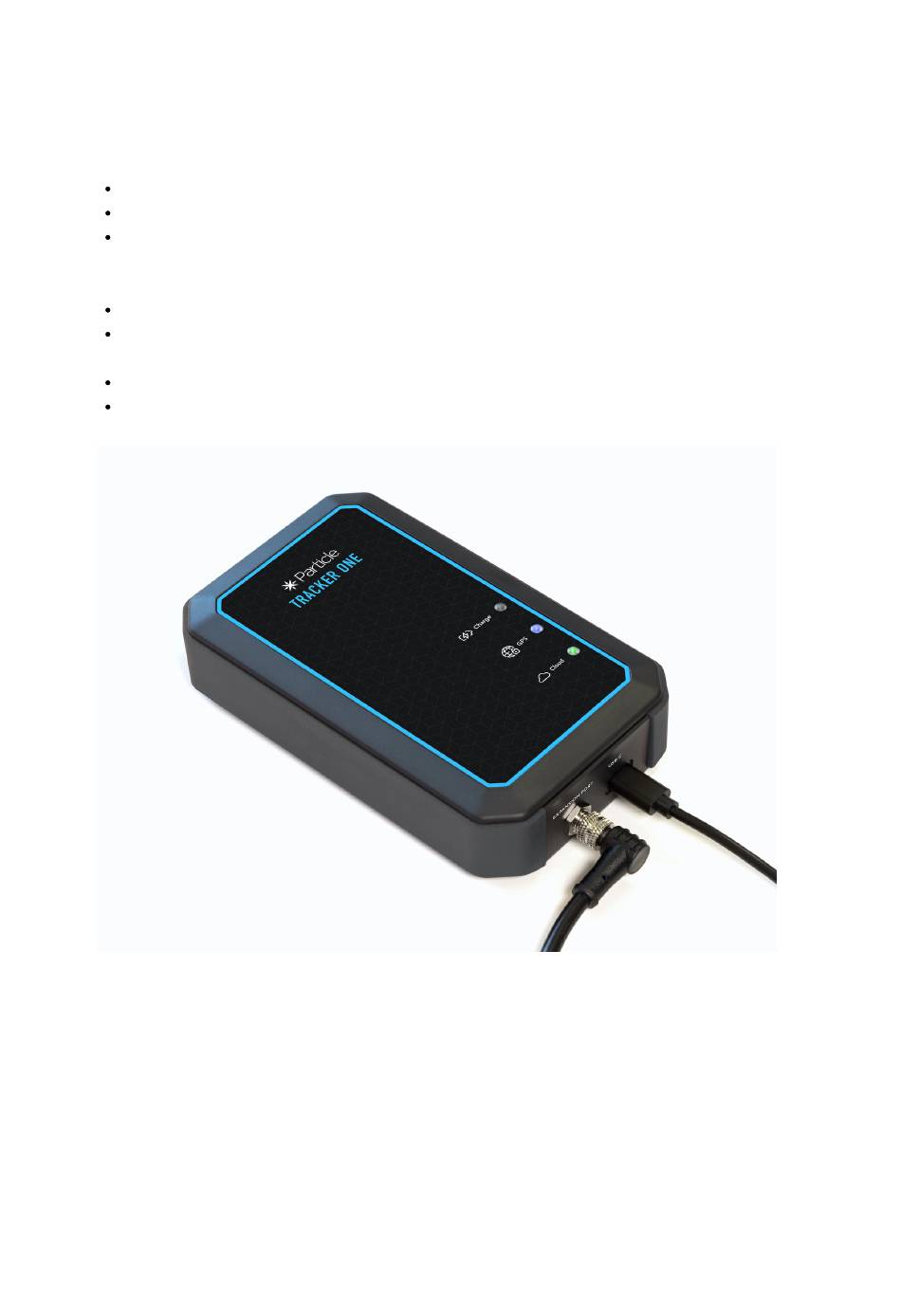

Tracker One
The Tracker One is a ready-to-go Tracker SoM carrier board with optional weatherproof enclosure.
Ready to go with IP67-rated enclosure.
GNSS Antenna Onboard: convenient high-gain GNSS antenna for easy access to GNSS signals.
Flexible Power Supply: easily add asset tracking to most devices. A wide 6-30V power supply
copes with most power delivery systems. Also accepts 5V supply via USB-C. LiPo battery
connector with charge LED. Supports up to 90V when connecting directly to the carrier board.
High-precision Thermistor with accuracy to 1%.
Extensible: IP67-rated M8 connector includes CAN Bus, UART, GPIO, and power for simple
expansion.
USB-C for flashing, debugging and power with higher charging rates than Micro-USB.
RGB LED for use as both a user-configurable device as well as Particle status information.
(010)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Particle Tracker One
Summary of Contents for Particle Tracker One
- Page 1 (010) Tracker One The Tracker One is a ready-to-go Tracker SoM carrier board with optional weatherproof enclosure. Ready to go with IP67-rated enclosure. GNSS Antenna Onboard: convenient high-gain GNSS antenna for easy access to GNSS signals. Flexible Power Supply: easily add asset tracking to most devices. A wide 6-30V power supply copes with most power delivery systems. Also accepts 5V supply via USB-C. LiPo battery connector with charge LED. Supports up to 90V when connecting directly to the carrier board. High-precision Thermistor with accuracy to 1%. Extensible: IP67-rated M8 connector includes CAN Bus, UART, GPIO, and power for simple expansion. USB-C for flashing, debugging and power with higher charging rates than Micro-USB. RGB LED for use as both a user-configurable device as well as Particle status information.
-
Page 2: Block Diagram
Block Diagram... - Page 3 Description Num ID Description GNSS Antenna Wi-Fi Antenna (mounted on side of case) NFC Antenna (mounted on lid) Power and I/O connector (B8B-PH) BLE Antenna (mounted on side of case) LiPo Connector M8 8-pin male connector (mounted on side of case) USB-C NFC connector (connects to NFC antenna on lid) RGB Status LED GNSS LED GNSS Status LED CHRG LiPo charge status LED USER User Button RESET RESET Button MODE MODE button Cellular Antenna (mounted on side of case) USB-C switch Thermistor JTAG connector (not populated)
- Page 4 When disassembling the Tracker One, be careful when removing the lid. The NFC antenna and LiPo battery are mounted on the lid, and the NFC antenna cable is short. Carefully remove the NFC U.FL connector before fully removing the lid of the case. Reconnect to (9). The USB-C connector is normally connected to the nRF52840 MCU. It can be connected to the GNSS module by using the USB-C switch (17). The normal state is 1-4 OFF and 5-6 ON to connect the USB to the nRF52840. To connect the USB- C to the u-blox GNSS, turn 1-4 ON and 5-6 OFF. Disconnect the USB-C and the LiPo battery before changing the switch settings. The JTAG connector is not populated at the factory. The connector is a Samtec FTSH-105-01-F-DV- K 10 position (2x5), 1.27mm pitch.
- Page 5 POWER AND I/O CONNECTOR (M8) M8 Pin Function Function Function I/O Color CAN_P Yellow Analog A3 GPIO D3 White Serial1 RX Wire3 SDA GPIO D8 Green Serial1 TX Wire3 SCL GPIO D9 Brown CAN_PWR O Orange CAN_5V CAN_N Blue Black The IP67 M8, 8-pin, male pins with threaded barrel connector is accessible from the outside of the enclosure. View as looking into the M8 connector on the outside of the enclosure. Note: Version 003 and earlier of this datasheet had a different pin numbering for M8 connector that didn't match the connector manufacturer's numbering. Only the numbering has changed; the function of the pin at a given location is unchanged and the change should not affect existing designs. MCU GPIO is limited to 3.3V maximum. CAN Bus specifications can be found in the Tracker SoM datasheet. CAN Bus termination is provided on the carrier board. 6.0 to 30 VDC at 2A when using the M8 connector. 6.0 - 90 VDC at 2A when connecting directly to the board. 5V, 400 mA maximum. Controlled by the CAN_PWR GPIO.
-
Page 6: Additional Peripherals
CARRIER BOARD POWER AND I/O CONNECTOR The connector on the carrier board itself is is a JST B8B-PH-SM4-TB(LF)(SN), 8-position, 2mm pitch, male pins, shrouded. The mating connector is the JST PHR-8. The female sockets are available plain, with leads, and in pre-manufactured ribbon cable formats. PHR-8 Pin M8 Pin Function Color CAN_P Yellow CAN_N Blue CAN_5V Orange TX_SCL_D9 Brown TX_SDA_D8 Green White Black ADDITIONAL PERIPHERALS Signal Device OS Description THERM NTC Thermistor USER USER button GNSS_LOCK GNSS lock indicator GPIO1 GPIO on power and I/O connector MCU TX MCU serial TX, GPIO D9, Wire3 SCL MCU RX MCU serial RX, GPIO D8, Wire3 SDA Note: While the USER button exists inside the Tracker One, the Tracker One is a sealed unit and opening it will void the warranty and may affect certifications, thus it is not practical to use. It can be used with the Tracker Carrier Board. -
Page 7: Led Indicators
POWERING THE TRACKER CARRIER BOARD There are several options for powering the carrier board: The MCU USB connector (USB-C). If using a laptop with a USB-A to USB-C cable and a 500 mA USB port, you should also use the LiPo battery. With an true USB-C port and cable, or a 2A tablet charger, you can power only by USB. The VIN connector (6 to 30 VDC at 2A on the M8 connector, or 6 to 90 VDC at 2A to the B8B-PH connector on the board). This is useful with an external power supply. The LiPo connector. This is typically used with a LiPo battery. USB CONNECTOR There is a single USB C connector on the carrier board. On the Tracker One, this exits the enclosure and is IP67 rated. A set of DIP switches on the carrier board allow this port to be connected to either the MCU (normal) or u-blox GNSS (for firmware updates). The normal state is 1-4 OFF and 5-6 ON to connect the USB to the nRF52840. To connect the USB-C to the u-blox GNSS, turn 1-4 ON and 5-6 OFF. Disconnect the USB-C and the LiPo battery before changing the switch settings. LED INDICATORS The RGB LED default behavior is: Red breathing: Attempting to connect to the cellular network Yellow breathing: Connecting to the cloud, weaker cellular signal Green breathing: Connecting to the cloud, good cellular signal Yellow solid: Connected to the cloud, weaker cellular signal Green solid: Connected to the cloud, good cellular signal Alternatively the LED can be configured to the typical Particle color scheme (blinking green, blinking cyan, breathing cyan) via device or cloud configuration. Custom device firmware can provide other color schemes if desired. The CHRG LED indicates the charge status: Off: Not charging or no power On: Charging Blinking: Charge fault Flickering: No battery The GNSS LED indicates the GNSS fix status: Off: GNSS is powered off. Blinking (1 Hz): Attempting to get a GNSS fix On: Has a GNSS fix. - Page 8 Antennas Antenna Location GNSS Carrier Board (faces top of case) Wi-Fi Left Side Left Side Cellular Right Side As the GNSS antenna faces the top of the case, you also want the top of the case facing the sky to the greatest extent possible. You will likely be be unable to get a GNSS lock with the top facing down.
- Page 9 Tracker One Schematics Will be provided at a later date.
- Page 10 Peripheral Details THERMISTOR The Tracker Carrier Board contains a 100K NTC thermistor, connected to A0. It is a Panasonic ERT- J1VR104FM connected high-side. It can be read using the getTemperature() API. Note that this is the temperature on the board, within the enclosure, and will typically be several degrees warmer than the ambient temperature.
-
Page 11: Design Files
Design Files The Tracker Carrier Board in the Tracker One is open-source and the Eagle CAD design files are available in Github: https://github.com/particle-iot/tracker-hardware... -
Page 12: Mechanical Specifications
Mechanical specifications OPERATING TEMPERATURE Parameter Minimum Maximum Units Operating temperature 60 °C Battery charging enabled 50 °C DIMENSIONS AND WEIGHT Parameter Value Units Width 88 mm Length (case only) 146 mm Length (including M8 connector) 154 mm Thickness 33 mm Weight 290 g Case Dimensions (mm): Bottom:... - Page 13 Maximum Carrier Board Dimensions (mm): Note: The Tracker Carrier Board has a smaller bottom tab to provide space for the M8 connector.
-
Page 14: Product Handling
Product Handling ESD PRECAUTIONS The Tracker SoM contains highly sensitive electronic circuitry and is an Electrostatic Sensitive Device (ESD). Handling an module without proper ESD protection may destroy or damage it permanently. Proper ESD handling and packaging procedures must be applied throughout the processing, handling and operation of any application that incorporates the module. ESD precautions should be implemented on the application board where the B series is mounted. Failure to observe these precautions can result in severe damage to the module! BATTERY WARNING CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. DISPOSAL This device must be treated as Waste Electrical & Electronic Equipment (WEEE) when disposed of. Any WEEE marked waste products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge. If all consumers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment of any hazardous materials that the waste may contain. -
Page 15: Ordering Information
Ordering Information Description Packaging ONE402M Tracker One LTE M1 (NorAm), [x1] Each ONE523M Tracker One LTE CAT1/3G/2G (Europe), [x1] Each TCAR Tracker Carrier Board, [x1] Each... -
Page 16: Revision History
Revision history Revision Date Author Comments pre1 2020 Apr 20 Preview Release1 pre2 2020 May 12 Added partial dimensions 2020 Jun 29 First release 2020 Jun 30 CAN 5V is limited to 400 mA, not 500 mA 2020 Jul 16 Corrected M8 pinouts 2020 Aug 06 RK Corrected M8 pin numbering 2020 Aug 09 RK Updated VIN voltages 2020 Aug 10 RK Updated carrier board diagram 2020 Sep 01 Added antenna diagram 2020 Sep 08 RK Corrected USB connector description 2020 Sep 25 Add battery warning 2020 Oct 14 Add temperature range...
