Summary of Contents for Kajak Sport KS FOOTREST 3

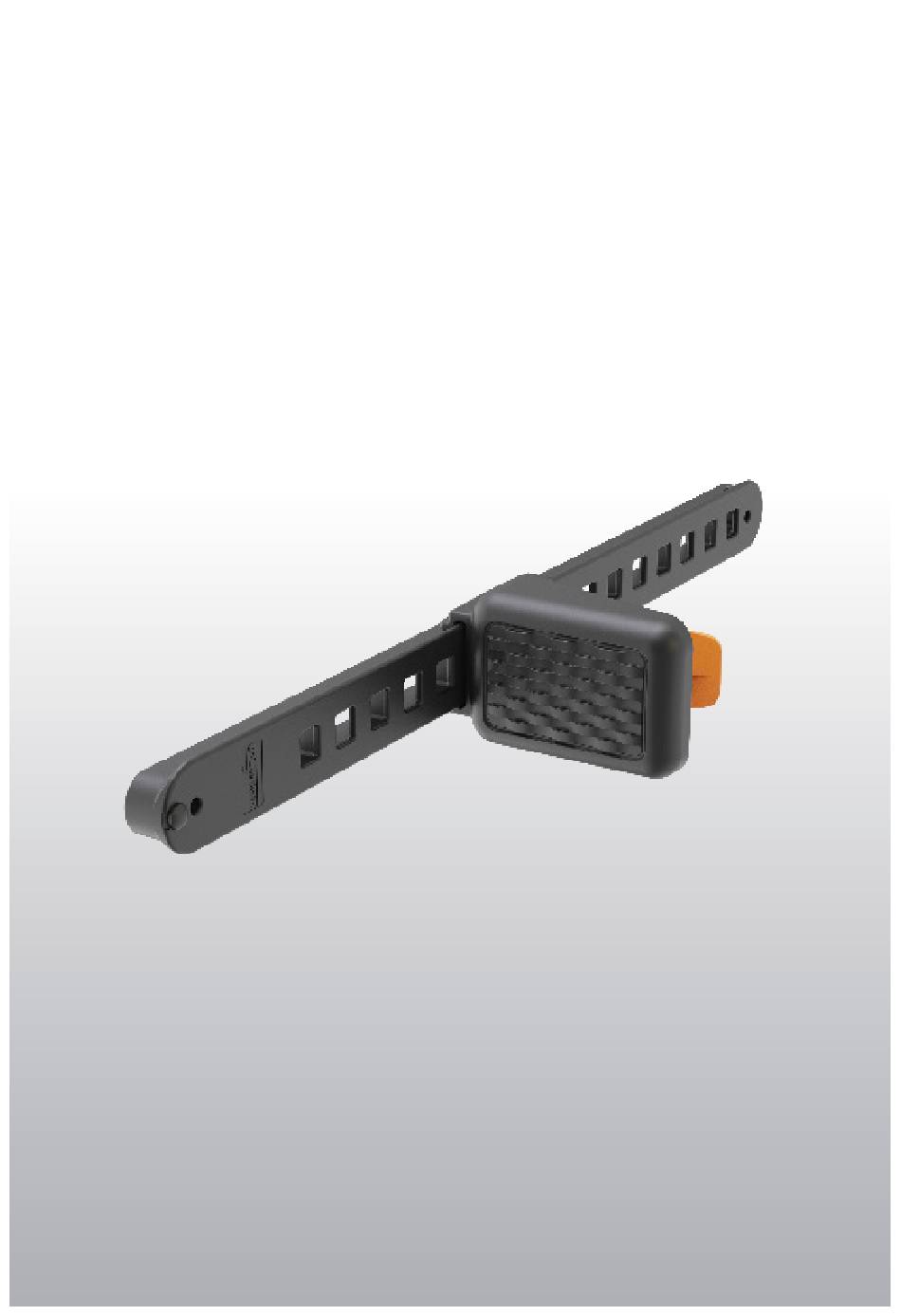

- Page 1 KS FOOTREST 3 LIGHT AND COMFORTABLE FOOTREST SYSTEM...
- Page 2 KS FOOTREST 3 - PART LIST Parts 514150.1 KS-footrest 3 1. 514112 KS-footrest 3, Rail 2. 514114 KS-footrest 3, pedal 3. 514116 KS-footrest 3, pedal lock 4. 514118 KS-spring for footrest 3 pedal lock 5. 514119 Plastic plug for footrest 3, rail 6.
-
Page 3: Mounting Distance
KS FOOTREST 3 - ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS Mounting distance Kajak Sport footrest 3 mounting distance is the industry ’standard’ . Distance is the same as other Kajak Sport footrest models as well as most of the other footrest systems world wide. - Page 4 KS FOOTREST 3 - ASSEMBLY INSTRUCTIONS 3. Slide the footrest pedal into the rail. Keep pushing the pedal lock against the pedal for free movement. 4. Push the plastic plug into the hole in the end of the rail. (the smaller hole next to the attachment screw hole).
- Page 5 KS FOOTREST 3 - ATTACHING ATTACHING THE FOOTREST INTO THE KAYAK A. Standard screw attaching through the hull. 1 . Add foam washer in the back side of the rail. Foam washer is self- adhesive. 2. Drill the holes from outside of the kayak.
- Page 6 KS FOOTREST SYSTEM 3 - USAGE USAGE KS Footrest 3 usage 1. Push the pedal lock against the foot pedal (spring loaded) to move the pedal freely. Push the pedal lock to adjust the pedal. KAJAK SPORT...
