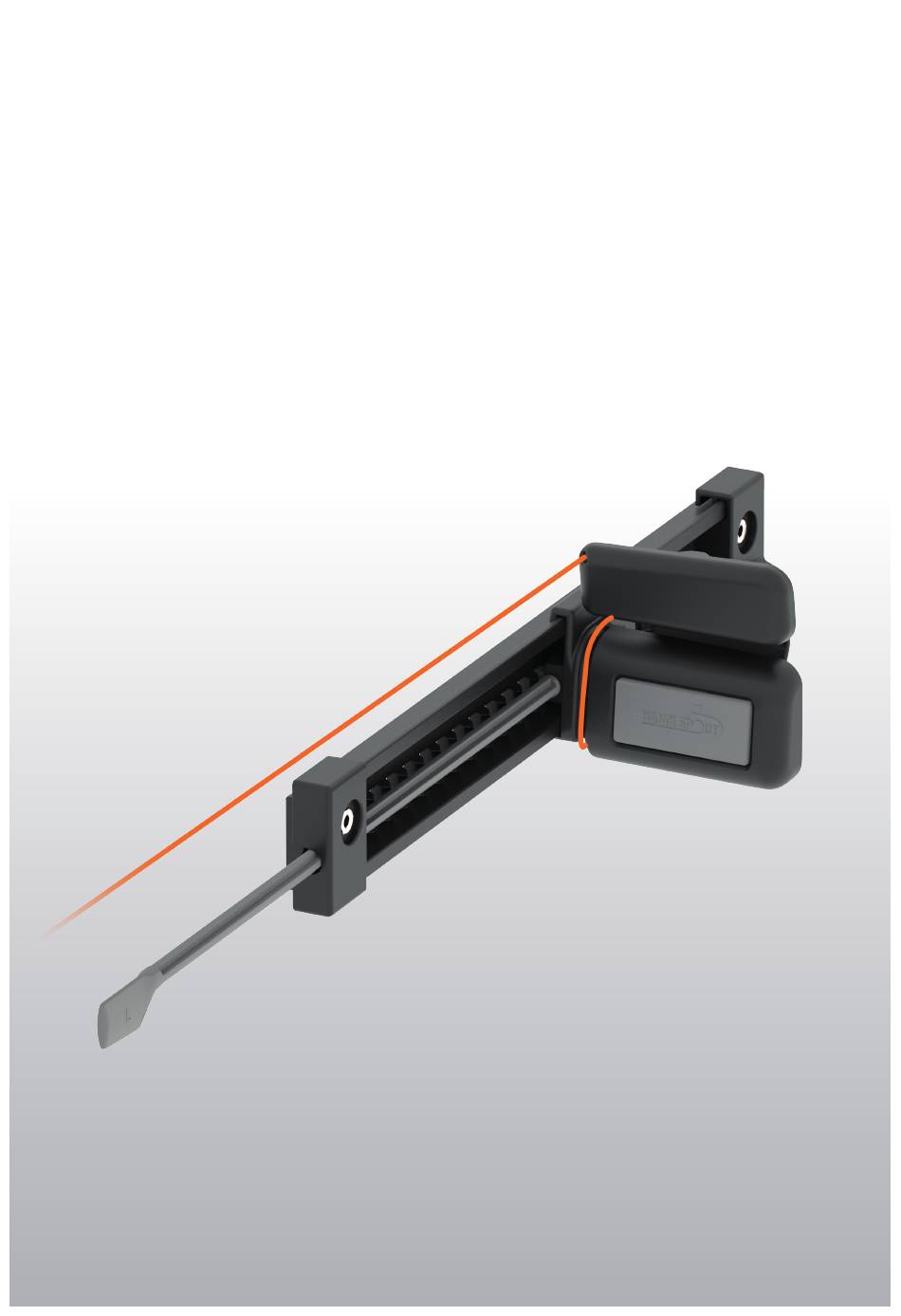

- Page 1 KS FOOTREST 2 WITH STEERING SYSTEM LIGHT AND COMFORTABLE FOOTREST AND STEERING SYSTEM...
- Page 2 PART LIST Parts 514100 KS Footrest system 2 with steering pedal (without rope) 1. (513111) KS Footrest 2, rail L / R 2. (513112) KS Footrest 2, pedal L / R 3. (513113 KS Footrest 2, center plate for pedal 4.
- Page 3 KS FOOTREST 2 WITH STEERING SYSTEM - ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS 369 ±1,75 General info of the KS Footrest 2 Kajak Sport footrest mounting distance is the same than our previous footrests have. Same mounting distance is commonly used in most of the footrest systems over the world.
- Page 4 KS FOOTREST 2 WITH STEERING SYSTEM - ASSEMBLY INSTRUCTIONS 3. Connect the adjustment rod into the footrest pedal 4. Slide the footrest pedal in to the rail. Make sure the adjustment rod is in open position. KAJAK SPORT...
- Page 5 KS FOOTREST 2 WITH STEERING SYSTEM - ASSEMBLY INSTRUCTIONS 5. Connect the steering pedal in to the footrest pedal by pushing the steering pedal hinge clamp inside in to the hinge bracket of the footrest. 6. Connect both rail end parts. The one with rope connector will go in front end.
- Page 6 KS FOOTREST 2 WITH STEERING SYSTEM - CONNECTING THE ROPE Follow the drawings to thread and connect the steering rope. Secure node Secure node KAJAK SPORT...
- Page 7 KS FOOTREST 2 WITH STEERING SYSTEM - ATTACHING ATTACHING THE SYSTEM INTO THE KAYAK A. Standard screw attaching through the hull. 1 . Add foam washer in the back side of the rail. Foam washer is self- adhesive 2. Add M6 nuts in to all rail end parts 3.
- Page 8 KS FOOTREST 2 WITH STEERING SYSTEM - ATTACHING B. Optional attachment with KS-fastener 6/30 (501210) 1. Laminate the optional KS-fastener in side into the kayak hull. 2. Add M6 washer and tighten the footrest with M6 nut. M6 x 30 mm...
- Page 9 KS FOOTREST 2 WITH STEERING SYSTEM - ATTACHING C. Replacing an old footrest attached with M5 x 25 mm fastener i. KS-footrest system 2 can also be attached to an M5 x 25 mm fastener by using Kajak Sport extension nut...
- Page 10 KS FOOTREST 2 WITH STEERING SYSTEM - USAGE Adjusting the KS Footrest 2 Turn and push/ 1. Squeeze the steering pedal spring pull the rod to in the center of the footrest pedal. adjust the pedal Spring will connect around the round side supports.
