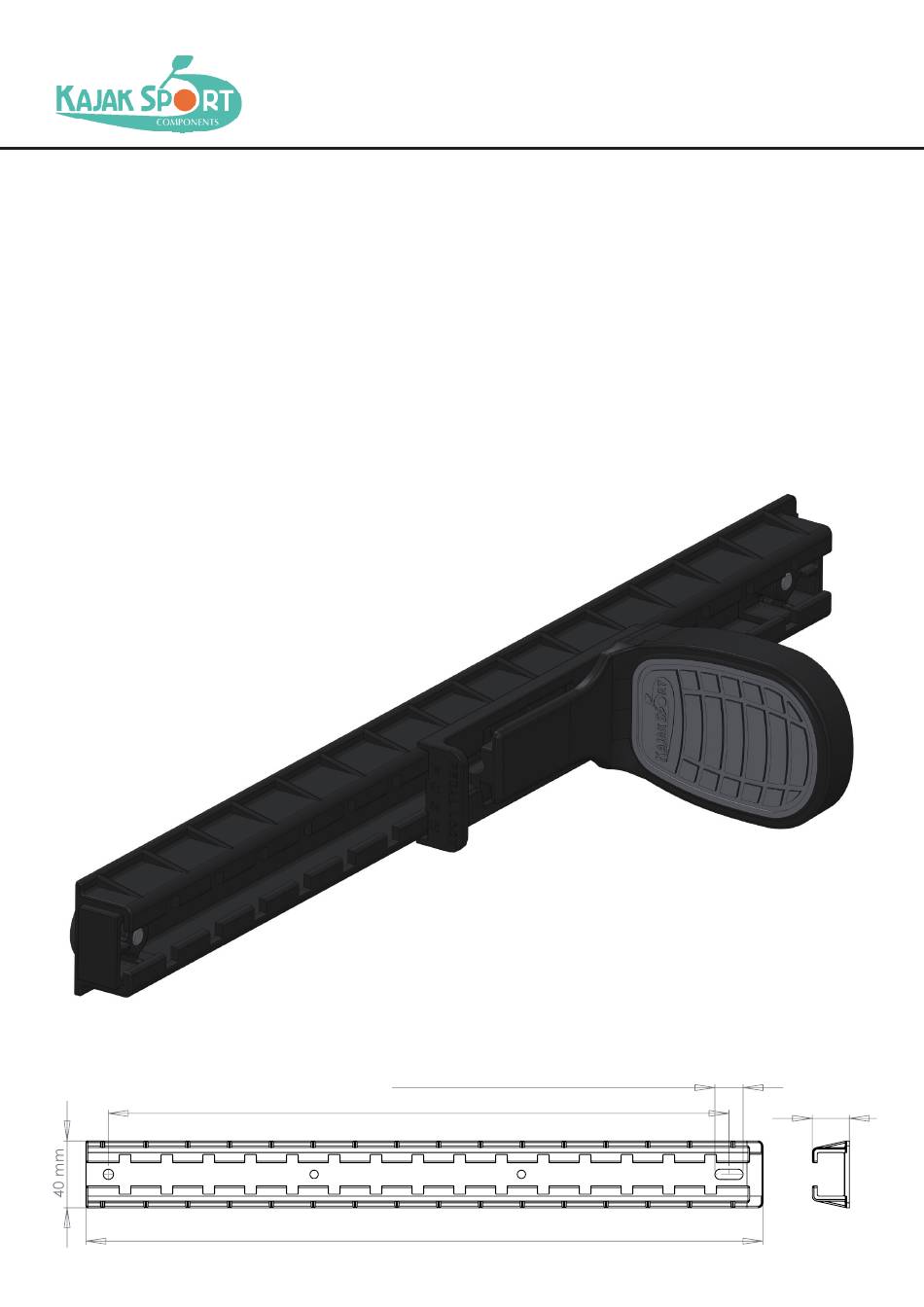

The Kajak-Sport footrest system is one of the most innovative footrests available in the
world. With the KS-footrest you always have solid support for your feet which is the basic
rule for efficient paddling. The footrest consist of a solid rail and an innovative pedal part
with self pivoting system for adjusting and soft grip material in the middle of the pedal.
The adjusting of the footrest is smart and simple. It can be done only with feet. The po-
sition of the pedals can be adjusted while seated.
The Footrest can be fixed to the kayak simply with screws through the hull or by laminating
into the kayak hull with special KS-fasteners (#501117) for footrest.
Assembly and installation instruction
ITEM: KS-footrest
Attachment screw tolerance: 17 mm
Attachement screw tolerance: 17 mm
Attachment point: 374 mm
Attachement point: 374 mm
408 mm
Dated 10.2.2012
PAGE 1/4
22 mm
Advertisement
Table of Contents
Related Manuals for Kajak Sport KS-footrest
Summary of Contents for Kajak Sport KS-footrest
- Page 1 The Kajak-Sport footrest system is one of the most innovative footrests available in the world. With the KS-footrest you always have solid support for your feet which is the basic rule for efficient paddling. The footrest consist of a solid rail and an innovative pedal part with self pivoting system for adjusting and soft grip material in the middle of the pedal.
- Page 2 Assembly and installation instruction Dated 10.2.2012 PAGE 2/4 ITEM: KS-footrest Name Code 1. KS-plastic pedal 501111 KS-rail 501112 KS-pedal lock 501114 KS-rail end 501113 Foam washer 501116 PT-torx screw 475622...
- Page 3 Assembly and installation instruction Dated 10.2.2012 PAGE 3/4 ITEM: KS-footrest Assembling the pedal lock to the footrest pedal Slide the hinge mechanism plate of the pedal inside the pedal lock part. Push it as far as the pedal lock front end can turn up in the track on the pedal. Pull the pedal lock backwards, so that the front end of the pedal lock will stay in the track Lift the pedal lock rear end to equal level with the front end. Now try that the pedal lock can freely slide front and back on the pedal track. Assembling the footrest: Slide the pedal to the rail. Consider the rail front end to be the one with oval shaped attachment hole. Place the foam washers around the attachment holes at the back side of the rail in both ends. Slide the rail end parts to the both ends of the rail. Fasten the footrest by screwing it through the kayak hull from the outside. Notice that srews are not ment to attach the rail itself, but they fasten to the rail end parts which will tighten the complete footrest package properly against the kayak hull.
- Page 4 Assembly and installation instruction Dated 10.2.2012 PAGE 4/4 ITEM: KS-footrest Adjusting the pedal distance Forwards: 1) Open the pedal lock by pulling it before adjusting the pedal. 2) Press the pedal arm against the rail and keep it pressed while adjusting the pedal distance. 3) When pedal is in correct position stop pressing the pedal arm against the rail and push the pedal a bit further until it locks to the next free slot. 4) Press the pedal lock part between pedal and rail to lock the system. Backwards: Open the pedal lock by pulling it before adjusting the pedal. 6) Place your foot behind the pedal and pull it closer. The pedal will move freely 7) When pedal is in correct position change your foot in front of the pedal and press it slightly forward until the pedal locks to the next free slot. Press the pedal lock part between pedal and rail to lock the system. Unlock the pedal before adjusting Lock the pedal after adjusting (1 & 5) (4 & 8) Move pedal forwards Move pedal backwards...
