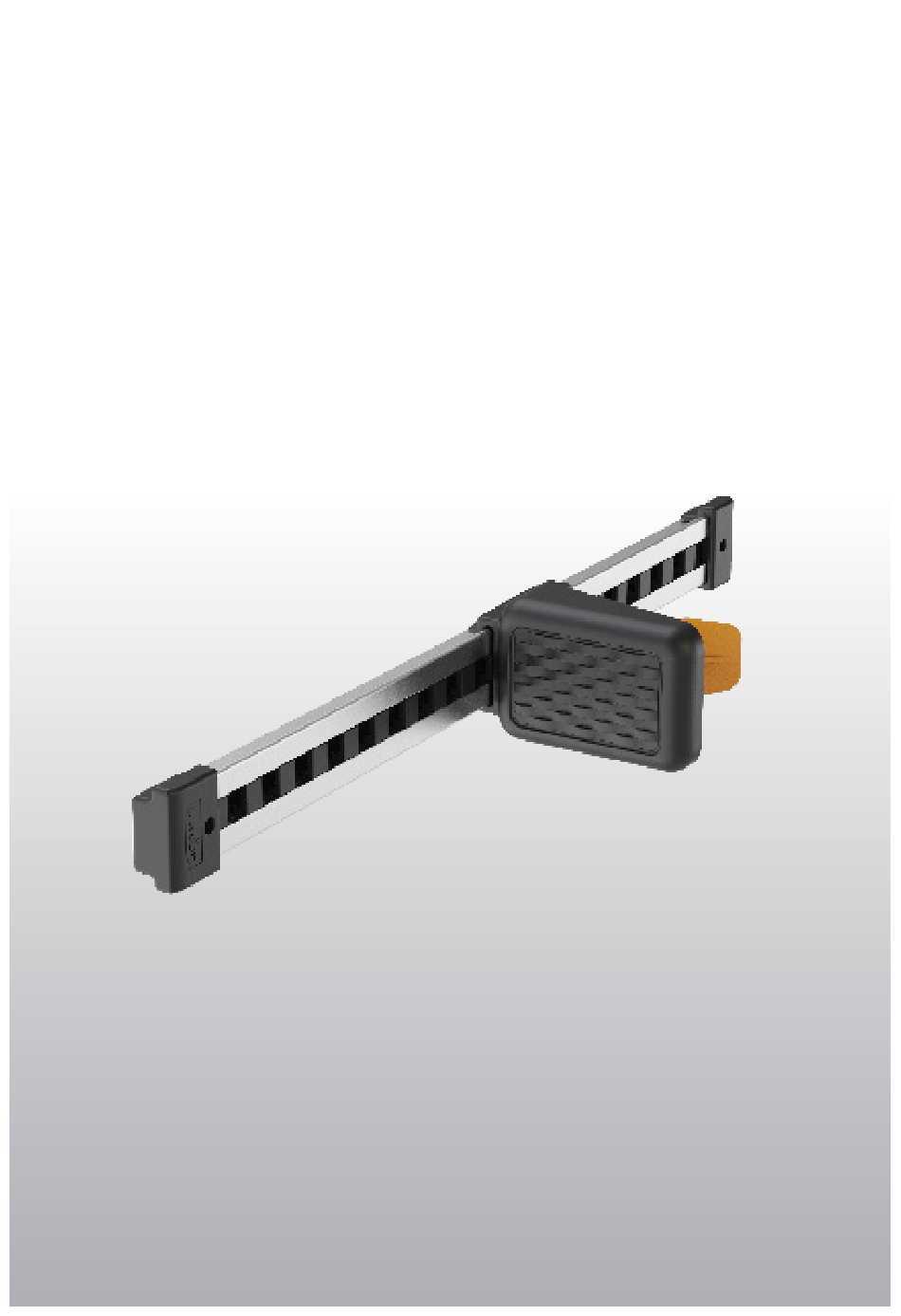

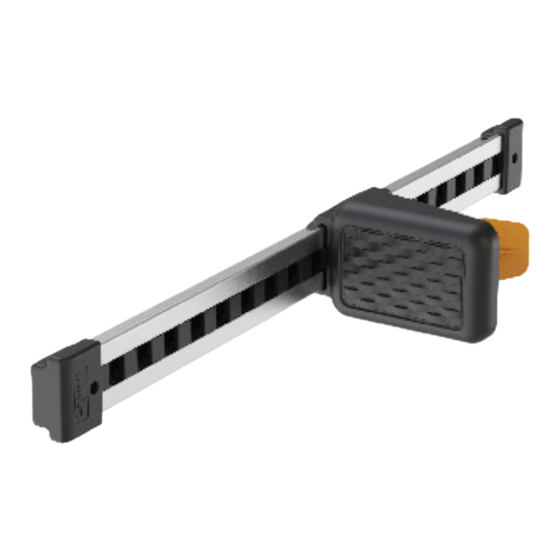

- Page 1 KS FOOTREST 3,ALUMINIUM STRONG AND SOLID FOOTREST SYSTEM KAJAK SPORT...
- Page 2 KS FOOTREST 3, ALUMINIUM - PART LIST Parts 514150 KS-footrest 3, aluminium 1. 514152 KS-footrest 3, rail, aluminium 2. 514154 KS-footrest 3, rail insert for aluminium 3. 514114 KS-footrest 3, pedal 4. 514116 KS-footrest 3, pedal lock 5. 514118 KS-spring for footrest 3 pedal lock 6.
- Page 3 KS FOOTREST 3, ALUMINIUM - ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS 370 ±5 Mounting distance Kajak Sport footrest 3 mounting distance is the industry ’standard’ . Distance is the same as other Kajak Sport footrest models as well as most of the other footrest systems world wide.
- Page 4 KS FOOTREST 3, ALUMINIUM - ASSEMBLY INSTRUCTIONS 3. Slide the footrest pedal into the rail. Keep the pedal lock pushed against the pedal for free movement. 4. Insert the rail end parts. a. Rail end part 4A goes into a slot in the rail insert (futher from the paddler).
- Page 5 KS FOOTREST 3, ALUMINIUM - ATTACHING ATTACHING THE FOOTREST INTO THE KAYAK A. Standard screw attaching through the hull. 1 . Add foam washer in the back side of the rail. Foam washer is self- adhesive. 2. Drill the holes from outside of the kayak.
- Page 6 KS FOOTREST 3, ALUMINIUM - USAGE USAGE KS Footrest, aluminium 3 usage 1. Push the pedal lock against the foot pedal (spring loaded) to move the pedal freely. Push the pedal lock to adjust the pedal. KAJAK SPORT...
