PAGE 1 . . . . . . . . . . . . . . . . . . . PANEL CUT OUT
PAGE 2, 3 . . . . . . . . . . . . . . . . . PROBE PREPARATION
PAGE 4, 5 . . . . . . . . . . . . . . . . . WIRING DIAGRAM
PAGE 6, 7, 8, 9, 10 . . . . . . . . . . CALIBRATION
PAGE 11, 12, 13 . . . . . . . . . . . . OPERATING INSTRUCTIONS
REVISIONS (latest first):
7/29/09
: Change from multiple files to single file (source=cdr, output=pdf). Add email address to each page.
6/10/05:
Change from html to pdf file. Change 904->386 area code. Remove holding tank prep. Rephrase probe calibration. Add details to
wiring diagram. Add note not to automatically recalibrate when there's a problem.

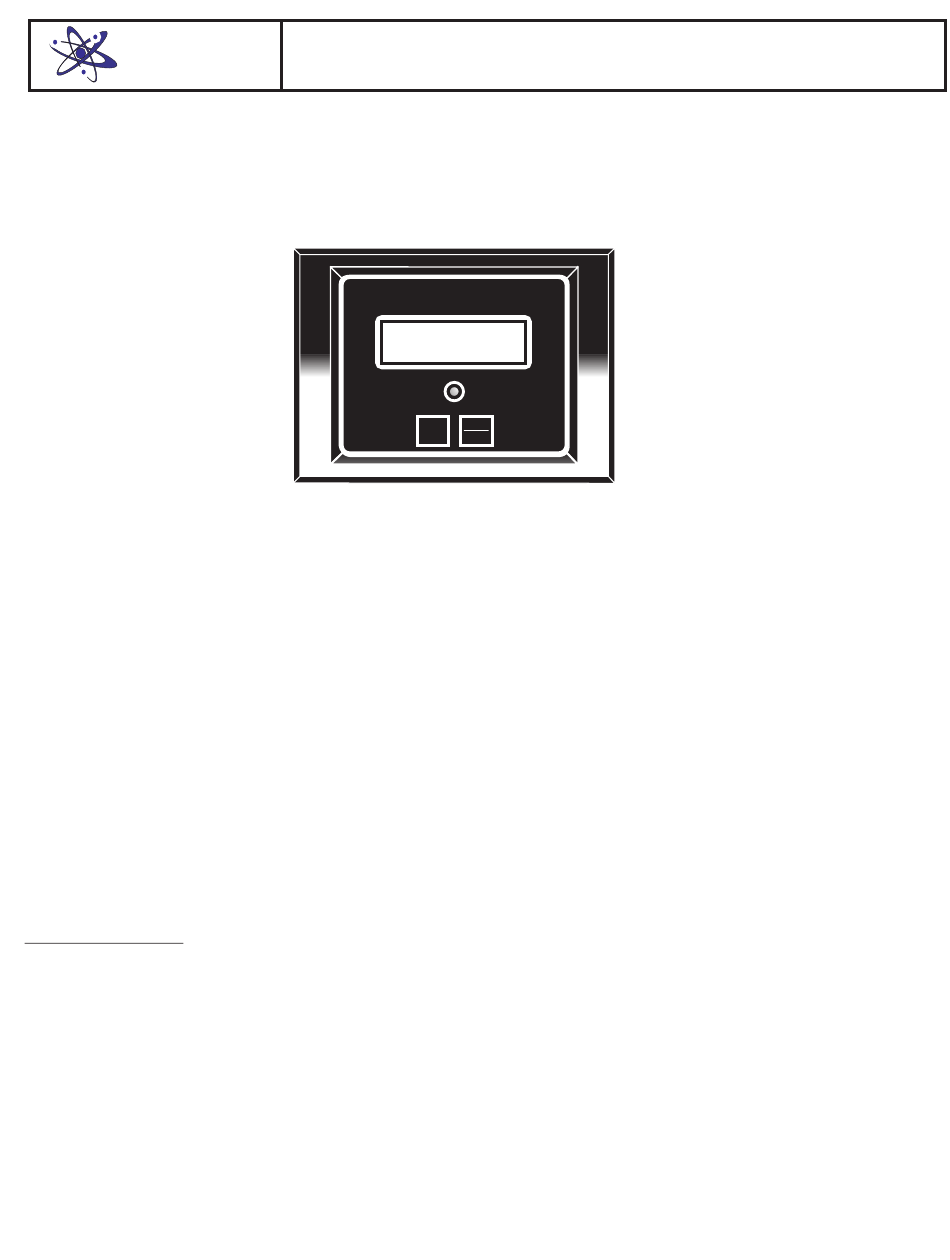

COMPUTANK INSTALLATION AND OPERATING INSTRUCTIONS
COMPUTANK
COMPUTANK
PORT FUEL T01
7 8 g a l
2104 HIBISCUS DR EDGEWATER, FL 32141
WEBSITE: www.centroidproducts.com
2 3 %
A L A R M
Y E S
NO
MENU
ct2009.cdr,..pdf
Advertisement
Related Manuals for Centroid COMPUTANK
Summary of Contents for Centroid COMPUTANK
- Page 1 CENTROID COMPUTANK INSTALLATION AND OPERATING INSTRUCTIONS PRODUCTS ct2009.cdr,..pdf 2104 HIBISCUS DR EDGEWATER, FL 32141 TEL: 386-423-3574 FAX: 386-423-3709 EMAIL:help@centroidproducts.com WEBSITE: www.centroidproducts.com COMPUTANK COMPUTANK PORT FUEL T01 7 8 g a l 2 3 % A L A R M Y E S MENU PAGE 1 .
-
Page 2: Panel Cutout Template
Computank can be installed with or without the bezel depending on your preference or accessibility to the back of the panel. Normal installation is to use the four screws molded in the bezel to secure the Computank to the dash from the rear. If you have limited access to the back, then you can use self-tapping screws to mount the Computank from the front, remove the screws from the bezel and use adhesive or double-sided tape to hold the bezel in place. -
Page 3: Sensor Preparation
Sender output : CompuTank is designed for senders with 0/4V output. We make these by adjusting our senders labeled "Operating Range: 0/5V" for 4 volts at Full. If use of a non-0/4V output is unavoidable, contact us for an adapter. -
Page 4: Installation
Note the holes are not symmetrical; rotate until the holes line up, then tighten down the mounting screws. It is important that the “Breather Hole” at the top of a fuel probe’s tubing be open, to allow the fuel to rise and fall inside the probe. COMPUTANK Installation and Operating Instructions CENTROID SENSOR PREPARATION sh.2 of 2... -
Page 5: Standard Hook Up
(T2) (T3) CAUTION-WIRING CONNECTIONS SHOULD BE MADE WITH POWER TURNED OFF Note 1: the CompuTank display draws approx 0.2A, and the senders 0.01A each. They can share a fuse or breaker with other instruments if desired. Note 2: The CompuTank 24V Adapter drops approx 13VDC across itself, as opposed to regulating to a specific voltage. - Page 6 Connect power as with main display on previous page (for 24v systems, each display gets a 24V Adapter). COMPUTANK Installation and Operating Instructions CENTROID COMPUTANK WIRING DIAGRAM sh.2 of 2 PRODUCTS ct2009.cdr help@centroidproducts.com TEL: 386-423-3574 FAX: 386-423-3709 2104 Hibiscus Dr Edgewater, FL 32141 EMAIL:...
-
Page 7: Calibration Menus
Press 'YES' if you want to exit calibration and QUIT to return to calibration return to the normal tank level display. menu. MENU COMPUTANK Installation and Operating Instructions CENTROID CALIBRATION DIAGRAM sh.1 of 5 PRODUCTS ct2009.cdr help@centroidproducts.com TEL: 386-423-3574 FAX: 386-423-3709 2104 Hibiscus Dr Edgewater, FL 32141... - Page 8 MENU Gallons, Liters, Percent MENU Sheet 3 (Page 8) You are now ready to set tank calibration levels. COMPUTANK Installation and Operating Instructions CENTROID CALIBRATION DIAGRAM sh.2 of 5 PRODUCTS ct2009.cdr help@centroidproducts.com TEL: 386-423-3574 FAX: 386-423-3709 2104 Hibiscus Dr Edgewater, FL 32141...
- Page 9 IS LEVEL NOW T01 MENU FULL MENU Sheet 4 (Page 9) You are now ready to set alarms COMPUTANK Installation and Operating Instructions CENTROID CALIBRATION DIAGRAM sh.3 of 5 PRODUCTS ct2009.cdr help@centroidproducts.com TEL: 386-423-3574 FAX: 386-423-3709 2104 Hibiscus Dr Edgewater, FL 32141...
- Page 10 C) IN A FULL OR PARTIALLY FULL TANK, with send voltage near 8 volts, if your voltmeter shows the SEND voltage is near 8 volts for a fuel probe, this usually indicates water is in the bottom of the tank. COMPUTANK Installation and Operating Instructions CENTROID CALIBRATION DIAGRAM sh.4 of 5 PRODUCTS ct2009.cdr...
- Page 11 (SELECTIONS: Display (norm), Inhibit) FUL=4.13V CENTROID COMPUTANK Installation and Operating Instructions CALIBRATION DIAGRAM sh.5 of 5 PRODUCTS ct2009.cdr help@centroidproducts.com TEL: 386-423-3574 FAX: 386-423-3709 2104 Hibiscus Dr Edgewater, FL 32141 EMAIL:...
-
Page 12: Displaying The Menu
Press "YES" if you want to display consumption. MENU Proceed to sheet 2 (Page 12) for consumption displays. COMPUTANK Installation and Operating Instructions CENTROID OPERATING PROCEDURE sh.1 of 3 PRODUCTS ct2009.cdr help@centroidproducts.com TEL: 386-423-3574 FAX: 386-423-3709 2104 Hibiscus Dr Edgewater, FL 32141... - Page 13 TIMER: Measures consumption since timer was started or restarted. This can be used to measure consumption between intermediate points on a trip. TOTALIZER: Measures consumption since last time totalizer was reset or power to the Computank was turned on. This is normally used to measure consumption for the entire trip.
-
Page 14: Battery-Voltage Display
RUN = 14.1V --this is the voltage now, generally with the alternator running and charging your battery. If this voltage drops below ALARMS AND WARNINGS A display of "*BAD* wtr?" for a fuel tank indicates that the CompuTank probe in that tank is producing an out-of-range FWD K. FUEL voltage. This can be an indication that there is water at the *BAD* wtr? bottom of the tank.
