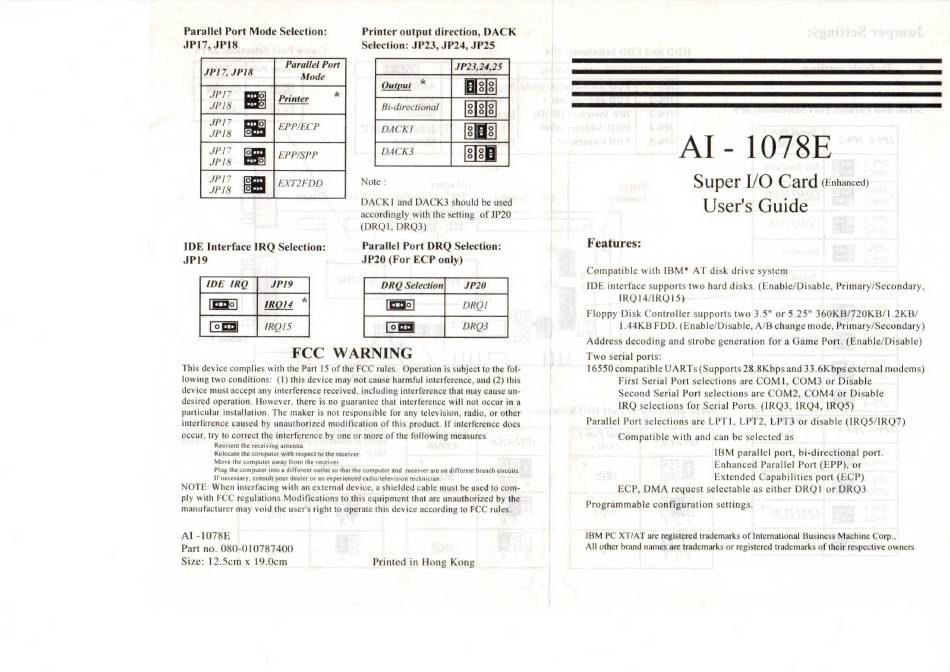

Parallel Port Mode Selection:
Printer output direction, DACK
JP17, JP18
Selection: JP23, JP24, JP25
a
JPI?
RRO) | Printer
*
=
Hs B [ee _*
rE
JPI?
RJO) | EPP/ECP
DACKI
JPI?
ORA
| EpP/SPP
DACK3
JPI8
Ẹ
JPI?
O
|e EXT2FDD
Note :
JP18
DACK1 and DACK3 should be used
accordingly with the setting of JP20
(DRQI, DRQ3)
IDE Interface IRQ Selection:
Parallel Port DRQ Selection:
JP19
JP20 (For ECP only)
DRQ Selection
JP20
IRQ15
[o El
DRQ3
FCC
WARNING
This device complies with the Part 15 of the FCC rules. Operation is subject to the fol-
lowing two conditions:
(1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause un-
desired operation. However, there is no guarantee that interference will not occur in a
particular installation. The maker is not responsible for any television, radio, or other
interference caused by unauthorized modification of this product. If interference does
occur, try to correct the interference by one or more of the following measures
Reorient the receiving antenna
Relocate the computer with respect to the receiver
Move the computer away from the receiver
Plug the computer into a different outlet so that the computer and receiver are on different branch circuits
If necessary, consult your dealer or an experienced radio/television technician
NOTE: When interfacing with an external device, a shielded cable must be used to com-
ply with FCC regulations.Modifications to this equipment that are unauthorized by the
manufacturer may void the user's right to operate this device according to FCC rules.
IDE IRQ
JP19
p
AI -1078E
Part no. 080-010787400
Size: 12.5cm x 19.0cm
Printed in Hong Kong
AI - 1078E
Super I/O Card Ennancea)
User's Guide
Features:
Compatible with IBM* AT disk drive system
IDE interface supports two hard disks. (Enable/Disable, Primary/Secondary,
IRQI4/IRQIS)
Floppy Disk Controller supports two 3.5" or 5.25" 360KB/720KB/1.2KB/
1.44KB FDD. (Enable/Disable, A/B change mode, Primary/Secondary)
Address decoding and strobe generation for a Game Port. (Enable/Disable)
Two serial ports:
16550 compatible UARTs (Supports 28.8Kbps and 33.6Kbps external modems)
First Serial Port selections are COM1, COM3
or Disable
Second Serial Port selections are COM2, COM4 or Disable
IRQ selections for Serial Ports. (IRQ3, IRQ4, IRQS)
Parallel Port selections are LPT1, LPT2, LPT3 or disable (IRQ5/IRQ7)
Compatible with and can be selected as
IBM parallel port, bi-directional port.
Enhanced Parallel Port (EPP), or
Extended Capabilities port (ECP)
ECP, DMA request selectable as either DRQ1
or DRQ3
Programmable configuration settings.
IBM PC XT/AT are registered trademarks of International Business Machine Corp.,
All other brand names are trademarks or registered trademarks of their respective owners
