AGENT RELEASE MODULE
(P/N 10‐1832)
Important Notices
1. Please read the instructions carefully! Fike products are
used to protect life and critical assets if installed and
tested as described in this document.
2. Do not use Fike products for any application it is not
intended for. Fike shall not be liable for any damages or
losses incurred by you or third parties arising from the
use of any Fike product for which the product is not
intended by Fike.
3. Do not use Fike products described in this document
outside of the ranges specified by Fike. Fike shall have no
liability for malfunctions or damages arising from using
Fike products beyond such specified ranges.
4. Fike reserves the right to change product designs or
specifications without obligation and further notice.
5. This document is subject to Fike's full disclaimer at
http://www.fike.com/disclaimer.
6. Visit www.fike.com to contact us or to download the
latest version of this document.
Specifications
Current
+24V Supervisory:
21.0 ma (capacitor charging)
2.0 ma (capacitor is charged)
‐24V Activated:
‐8.0 ma (LED active)
Temperature 32F to 130F (0°C to 54.4°C)
93% maximum humidity
Module
Control panel/Releasing Module to ARM
Wiring
connections are supervised and power‐
limited
Actuator connection to the ARM (GCA
terminals) is supervised and power‐limited
Mounting
4‐inch square electrical box minimum 2‐
1/8" deep. Requires two‐gang cover plate
(components supplied by others)
Compatible
70‐1651 – Gas Cartridge Actuator (GCA)*
Actuators
*
E106 (P/N 70‐1058) and EA‐1 (P/N 70‐1336) initiator assemblies are no
longer approved for use with the ARM and MUST be replaced with GCA.
Doc. No. 06‐106 ● Rev. A, 05/2023
INSTALLATION INSTRUCTIONS
Compatible Releasing Panels/Modules
The ARM can be used with the control panels and modules
listed in the table below. The table also shows the maximum
number of ARMs that can connect to the releasing circuit of
the respective control panel or releasing module.
Releasing Device
Intella‐Scan I & 2 Output
Modules*
Single Hazard Panel (SHP)*
*
Rhino
Cheetah – SRM Module*
Interface Firing Module (IFM)
SHP‐Pro
Cheetah Xi – RCM Module
Cheetah Xi 50 – RCM Module
*Product discontinued by Fike.
Any attempt to interface the ARM with a device not listed
in the previous table could damage the module, cause
improper operation, or cause severe personnel injury.
Dimensions

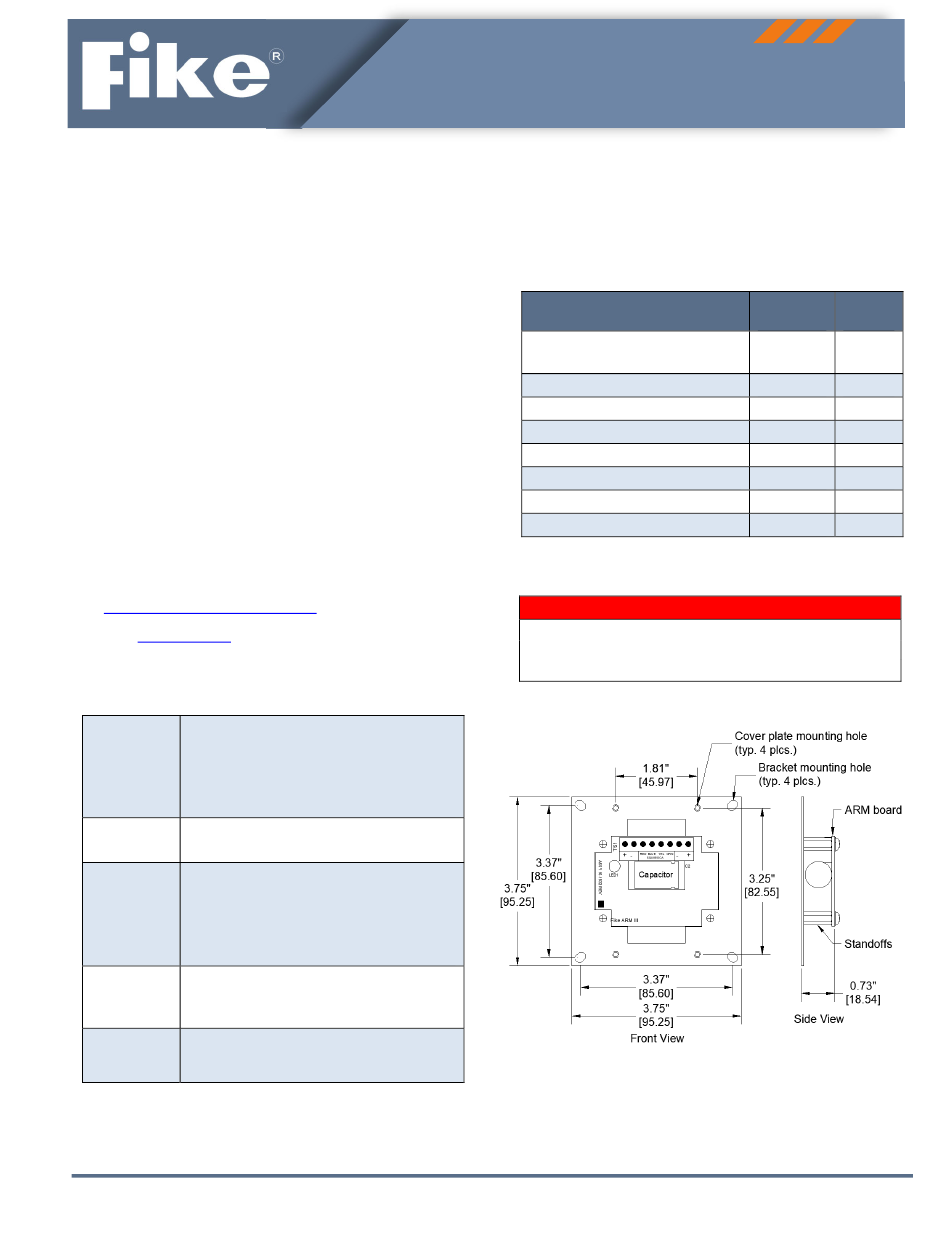

Figure 1‐ ARM Assembly Dimensions
ISO 9001:2015 Certified
ARMs per
Circuit
20
6
10
6
*
20
6
6
6
Table 1 – ARM Compatibility
WARNING
Inches (mm)
EOLR
Value
1.5KΩ
2.7KΩ
2.7KΩ
2.7KΩ
1.5KΩ
2.4KΩ
2.7KΩ
2.7KΩ
Page 1 of 5
