20-1343 Addressable Pull Station
Document 52121
DESCRIPTION
The 20-1343 Addressable pull station is a non-coded, dual-action manual pull station with a
key-lock reset feature. It provides Fike intelligent fire alarm control panels (FACP) with one
addressable alarm initiating input. The addressable module is housed inside the pull station.
The 20-1343 will automatically operate in Eclipse™ protocol. Eclipse™ is a patented High Speed
Communications Protocol. Refer to the FACP installation manual to determine if Eclipse™ protocol
is supported. No selection is required in the Pull Station. The 20-1343 meets the ADAAG controls
and operating mechanisms guidelines (section 4.1.3[13]), and the ADA requirement for a 5
pound maximum pull force to activate the pull station. Operating instructions are molded into
the pull station handle along with Braille text. Molded Terminal numbers are also present.
RATINGS
Normal Operating Voltage: 15 to 30VDC
Standby Current: 370 µA Maximum Average (continuous broadcasts)
Temperature Range: 32°F to 120°F (0°C to 49°C).
Relative Humidity Range: 10% to 93% Non-condensing.
Maximum Alarm Current: 2.0mA (red Led on)
INSTALLATION
The 20-1343 Addressable pull station can be semi-flush mounted on a standard single-gang,
double-gang or 4-inch (10.16 cm) square electrical box.
OPERATION
To activate the dual-action pull station, push in and pull down on the handle. The word ACTIVAT-
ED appears after the handle is pulled down. This will remain until the pull station is reset.
The pull station includes one Single Pole, Single Throw (SPST) Normally Open (N/O) switch
which closes upon activation of the pull station.
RESETTING THE PULL STATION
1. Insert the key into the lock and rotate
2. Open the door until the handle returns to normal.
3. Close and lock the door.
NOTE: Closing the door automatically resets the switch to the "Normal" position. Opening the
door will not activate or deactivate the alarm switch.
CAUTION: Do not detach the door of the pull station during installation. The door of the pull
station cannot be reattached to the backplate after the backplate has already been installed
onto an electrical box.
R
I56-3020-001
1 / turn counterclockwise.
4

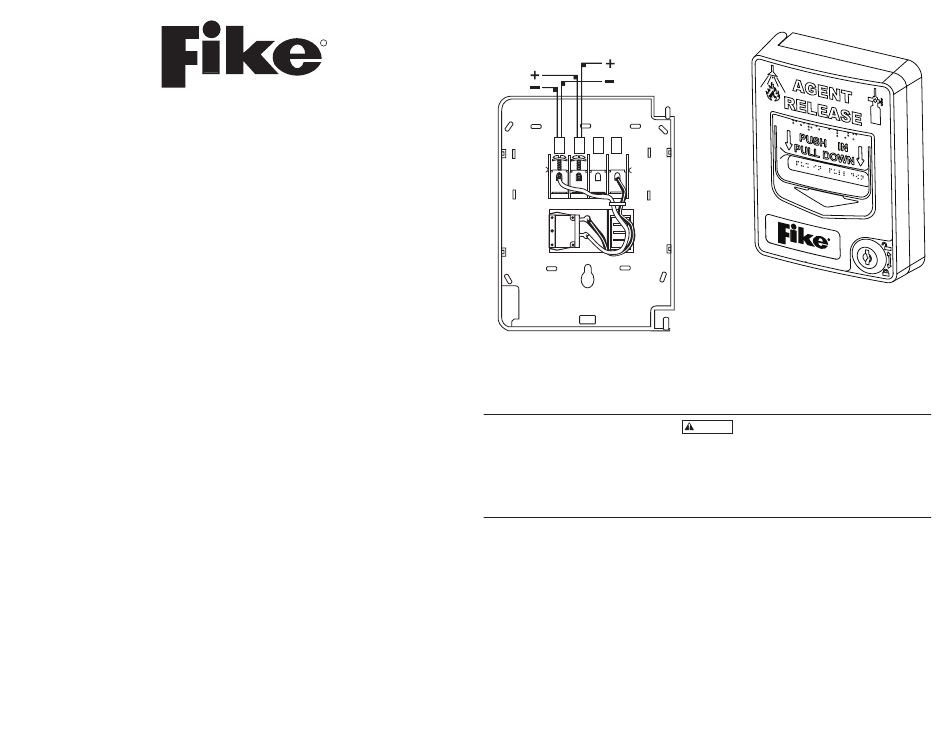

WIRING
TO NEXT
ADDRESSABLE
FROM DEVICE
FACP
SLC
SLC
1 2 3 4
STRIP GAUGE
P0105-01
Install the Fike 20-1343 addressable pull station in accordance with these instructions,
applicable NFPA standards, national and local Fire and Electrical codes and the requirements
of the AHJ (Authority Having Jurisdiction). Regular testing of the devices should be con-
ducted in accordance with the appropriate NFPA standards. Failure to follow these directions
may result in failure of the device to report an alarm condition. Fike is not responsible for
devices that have been improperly installed, tested or maintained.
ADA COMPLIANCE
For ADA compliance, if the clear floor space only allows forward approach to an object, the
maximum forward reach height allowed is 48 inches (121.92 cm). If the clear floor space al-
lows parallel approach by a person in a wheelchair, the maximum side reach allowed is 54
inches (137.16 cm).
20-1343
Addressable Pull Station
CAUTION
(over for Programming information)
I56-3020-001
