To configure filters for the router, configure the folowing fields and click Apply.

Source IP

Destination IP

Source Port

DSL-524T ADSL Router Manual

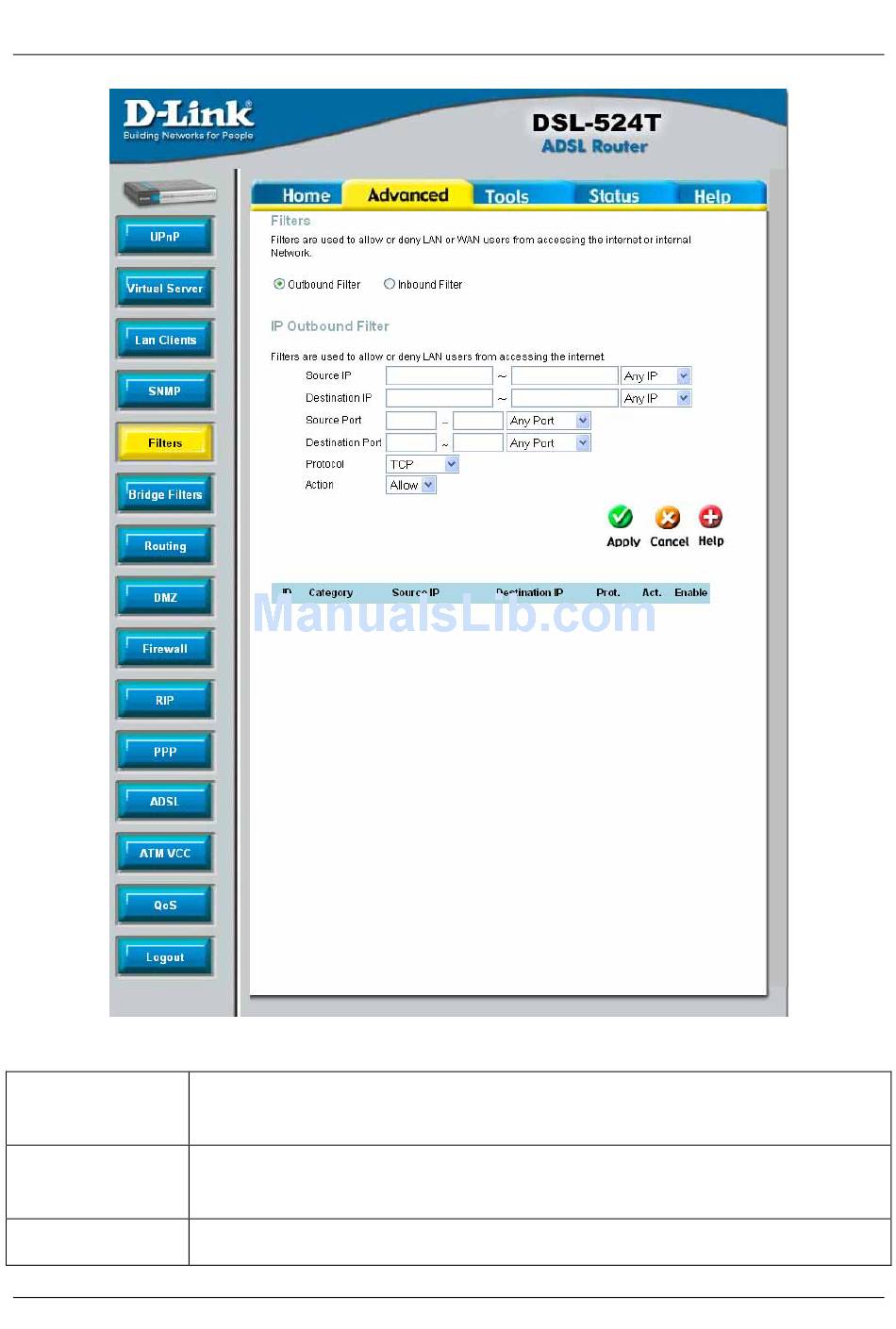

Figure 5- 5. Filters window

Enter an IP address or range of addresses from which to block or allow packets. This

field may also be used to block a set of subnet masks by using the corresponding pull

down menu.

Enter an IP address or range of addresses to which to block or allow packets from being

sent. This field may also be used to block a set of subnet masks by using the

corresponding pull down menu.

Enter a port or range of ports from which to block or allow packets. This field can only

be configured if TCP or UDP is selected in the Protocol field. The Safe Range option in
