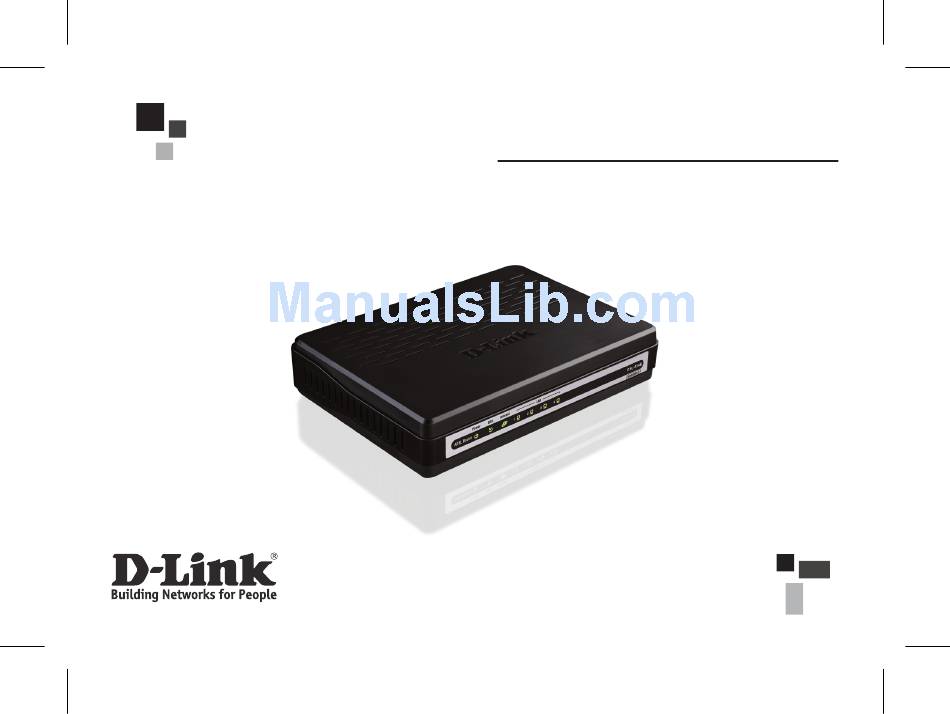

- Page 1 Quick Installation Guide DSL-524B Generation II ADSL2+ Router...
-
Page 2: Before You Begin
Before You Begin Make sure you have all the necessary information and equipment on hand before beginning the installation. Check Your Package Contents DSL-524B ADSL Modem CD-ROM (containing Manual) Ethernet (CAT5 UTP) Cable Telephone Cable Power Adapter If any of the above items are missing, please contact your reseller... - Page 3 Connecting the Modem to Your Computer A. First, connect the power adapter to the receptor at the back panel of the DSL-524B and then plug the other end of the power adapter to a wall outlet or power strip. The Power LED will turn to indicate proper operation.
-
Page 4: Configuring The Modem
Configuring the Modem To use your Web browser to access the web pages used to setup the Modem, your computer must be configured to “Obtain an IP address automatically”, that is, you must change the IP network settings of your computer so that it is a DHCP Client. - Page 5 Configuring the Modem (continued) Click “WAN” on the left page, enter into “WAN Area Network (WAN) Setup” configuration page. Click on the next connection which you want modify. Press “Add” button, enter the configure guide, as following picture showed.
- Page 6 The value for VPI/VCI is assigned by your ISP. After inputting the PVC value, press “Next” to “Connection Type”, as following picture showed. Select “PPP over Ethernet (PPPoE)”, press “Next” entering the configuring interface, as following picture showed.
- Page 7 Configure your PPP Username and Password from ISP. Then press “Next” to “Network Address Translation Settings”, as following picture showed. Press “Next” to enter into “WAN Setup - Summary”, click “Save” to save configuration, if you need to modify the parameter, click “Back”, as following picture showed.
- Page 8 Configuring the Modem (continued) To save the new settings, please access Management menu , click the Save/reboot button in the Save/ reboot menu. After a few seconds, the changes will be saved. The Modem will automatically establish the Internet connection after a few more seconds. Click Save/reboot button to...
- Page 9 Appendix For additional settings or information, refer to the Advanced, Tools, Status tabs on the web- management interface; or to the manual located on the CD-ROM. Configuring IP Settings in Windows XP Use the following steps to configure a computer running Windows XP to be a DHCP client. 1.
- Page 10 Right-click on the Local Area Connection icon and Select Properties option from the pull-down menu. 3. In the General tab of the Local Area Connection Properties menu, highlight Internet Protocol (TCP/IP) under “This connection uses the following items:” by clicking on it once. Click on the Properties button.
- Page 11 4. Select “Obtain an IP address automatically” by clicking once in the circle. Click the OK button. Select Obtain an IP address automatically in the Internet Protocol (TCP/IP) Properties window Your computer is now ready to use the Modem’s DHCP server.
-
