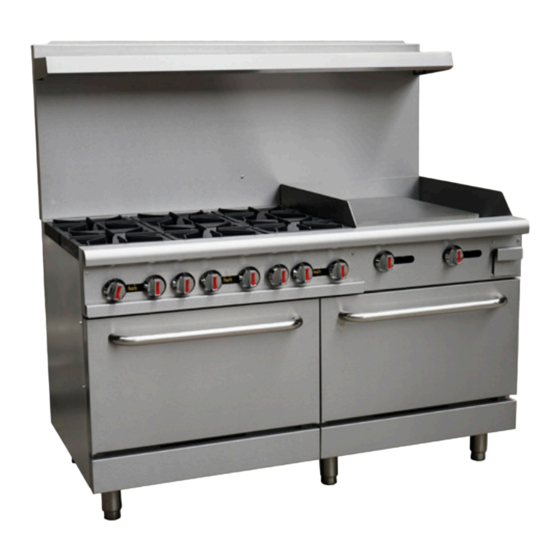

Gas Ranges
Models CE-CN-0609-R (46024), CE-CN-0609-L (46124), CE-CN-0914-R (43151),
CE-CN-0914-L (46151), CE-CN-1524-R (46027), CE-CN-1524-L (46127),
CE-CN-0004-GN (46025), CE-CN-0004-LP (46125), CE-CN-0002-GN (46026),
CE-CN-0002-GL (46126), CE-CN-0006-GN (46028), CE-CN-0006-GL (46128)
Instruction Manual
Revised - 06/22/2022
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com
Advertisement
Table of Contents
Related Manuals for Omcan CE-CN-0609-R
Summary of Contents for Omcan CE-CN-0609-R
- Page 1 Gas Ranges Models CE-CN-0609-R (46024), CE-CN-0609-L (46124), CE-CN-0914-R (43151), CE-CN-0914-L (46151), CE-CN-1524-R (46027), CE-CN-1524-L (46127), CE-CN-0004-GN (46025), CE-CN-0004-LP (46125), CE-CN-0002-GN (46026), CE-CN-0002-GL (46126), CE-CN-0006-GN (46028), CE-CN-0006-GL (46128) Instruction Manual Revised - 06/22/2022 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model CE-CN-0609-R / Model CE-CN-0609-L / Model CE-CN-0914-R Model CE-CN-0914-L / Model CE-CN-1524-R / Model CE-CN-1524-L Model CE-CN-0004-GN / Model CE-CN-0004-LP / Model CE-CN-0002-GN Model CE-CN-0002-GL / Model CE-CN-0006-GN / Model CE-CN-0006-GL Section Page General Information --------------------------------------------------------------------------- 3 - 4... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 Safety and Warranty IMPORTANT FOR YOUR SAFETY: THIS MANUAL HAS BEEN PREPARED FOR PERSONNEL QUALIFIED TO INSTALL GAS EQUIPMENT, WHO SHOULD PERFORM THE INITIAL FIELD START-UP AND ADJUSTMENTS OF THE EQUIPMENT AS COVERED BY THIS MANUAL. IMPORTANT: IN THE EVENT A GAS ODOR IS DETECTED, SHUT DOWN UNITS AT MAIN SHUTOFF VALVE AND CONTACT THE LOCAL GAS COMPANY OR GAS SUPPLIER FOR SERVICE.
- Page 6 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers part failures, not improper use.
-
Page 7: Technical Specifications
Technical Specifications 24” BURNERS Model CE-CN-0609-R CE-CN-0609-L Oven Dimensions 20.5” x 25.8” x 13.9” / 521 x 655 x 353mm Number of Burners 4 top burner + 1 oven burner Power 4 x 30,000 BTU + 31,000 BTU Total Input BTU/hr... -
Page 8: Installation
Installation • The installation of this equipment must conform with local codes, or with the National Gas Code, ANSIZ223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1, as applicable. • The equipment and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of ½... -
Page 9: Operation
Installation 9. Check the gas supply pressure after installation. 10. Gas supply pressure can be measured with a liquid-filled pressure gauge (e.g. a U shaped pressure gauge, minimum scale division 0.1mbar) or a digital gauge. Procedure as follows: • Ensure gas is turned off. •... - Page 10 Operation When first using, it is normal that there is unpleasant smell that is produced by heating of the insulating material and oil residue on the metal. If the oven is used for the first time, do not put any food into the chamber, set the temperature to 500°F and heat till the smell is gone.
-
Page 11: Maintenance
Operation 1. Ensure gas supply is on and ignite the pilot flame with a lighter. If the unit hasn’t been used in a while or if this is the first lighting, ignition might take a little longer (about two or three minutes). 2. -
Page 12: Troubleshooting
Troubleshooting Problem Possible Causes Solution The pilot flame can’t be ignited. The gas pressure is too low. Adjust the relieve valve to increase pressure. The nozzle is clogged. Unclog the nozzle. Connection of the thermocouple is Tighten the thermocouple. loose. The thermocouple is defective. -
Page 13: Parts Breakdown
Parts Breakdown Model CE-CN-0609-R Model CE-CN-0004-GN 46024 46025 Model CE-CN-0609-L Model CE-CN-0004-LP 46124 46125 Model CE-CN-0914-R Model CE-CN-0002-GN 43151 46026 Model CE-CN-0914-L Model CE-CN-0002-GL 46151 46126 Model CE-CN-1524-R Model CE-CN-0006-GN 46027 46028 Model CE-CN-1524-L Model CE-CN-0006-GL 46127 46128... - Page 14 Parts Breakdown Model CE-CN-0609-R Model CE-CN-0004-GN 46024 46025 Model CE-CN-0914-R Model CE-CN-0002-GN 43151 46026 Model CE-CN-1524-R Model CE-CN-0006-GN 46027 46028 Item Item Item Description Position Description Position Description Position 66200 Leg for RGR-NG 66207 Pilot Valve (Griddle) Single AP7 for RGR-NG...
-
Page 15: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 16 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
