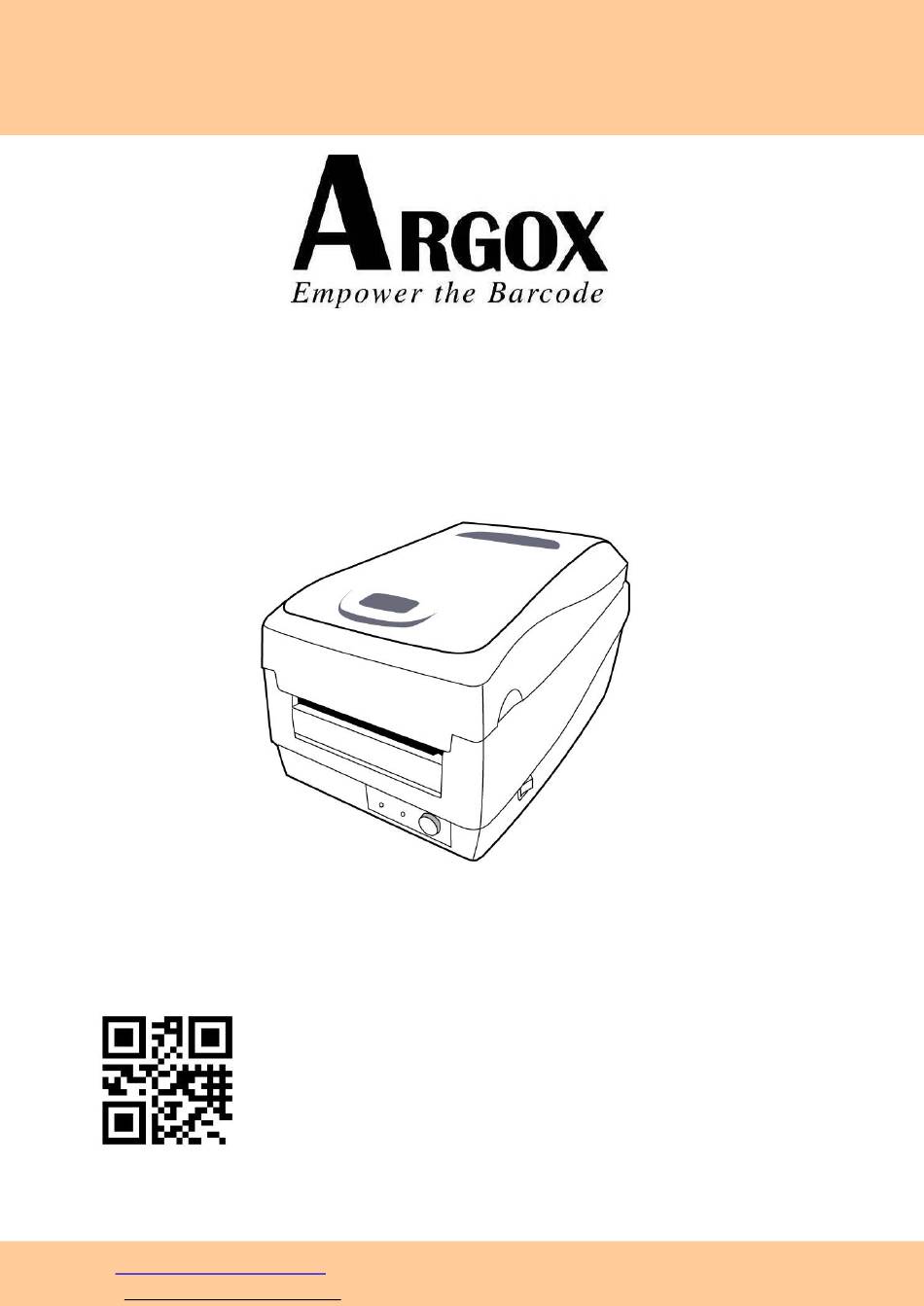

OS-214NU/OS-214NUZ
User's Manual
V1.0-11-12-2017
service@argox.com
Website: http://www.argox.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OS-214NU and is the answer not in the manual?

Questions and answers

Related Manuals for Argox OS-214NU

Summary of Contents for Argox OS-214NU

  • Page 1 ESKTOP ARCODE RINTER OS-214NU/OS-214NUZ User’s Manual V1.0-11-12-2017 service@argox.com Website: http://www.argox.com...
  • Page 2 Argox Information Co., Ltd. Product Improvements Continuous improvement of products is a policy of Argox Information Co., Ltd. All specifications and signs are subject to change without notice. FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 3: Safety

    Argox Information Co., Ltd. has been advised of the possibility of such damages. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

  • Page 4: Table Of Contents

    Table of Contents Safety ..................II Getting Started ..............5 Unpacking .................. 5 Package Contents ..............6 Connecting the Power Supply............ 7 Getting to Know Your Printer ........... 8 Parts and Features ..............8 Controls and Indicators ............11 Loading Ribbon and Media ..........13 Loading Ribbon ...............
  • Page 5 Thermal Print Head .............. 56 Replacing the Thermal Print Head ........59 Important notice during TPH replacement ....61 Technical Reference ............62 General Specifications ............. 62 Fonts, Bar Codes and Graphics Specification ......65 Printer Programming Language A, PPLA...... 65 Printer Programming Language B, PPLB......

  • Page 6: Getting Started

    Getting Started Congratulations on choosing the Argox OS-214NU and OS-214NUZ desktop barcode printers. This manual will help you get to know your new printer. There are two parts to this manual, an operation guide and related information. The operation guide is illustrated to help you quickly become familiar with the printer.

  • Page 7: Package Contents

    Package Contents  Printer  Power Supply  Power Cord  Quick Installation Guide  CD ROM  USB Cable  0.5” ID Core for Ribbon  Media Holder...

  • Page 8: Connecting The Power Supply

    Note the location of the power jack for different models in the diagrams below. 2. Insert the separate power cord into the power supply. 3. Plug the other end of the cord into an AC electrical outlet. OS-214NU/OS-214NUZ...

  • Page 9: Getting To Know Your Printer

    Getting to Know Your Printer The illustrations that follow describe the printer’s parts, features, controls, and indicators. Top Cover Parts and Features H Cover Power Switch Power Indicator Ready Indicator Feed Button OS-214NU/OS-214NUZ...
  • Page 10 Ribbon Pick-up Holder Media Hanger Release Levers...
  • Page 11 Ribbon Supply Holder Thermal Print head Platen Roller Power Switch...

  • Page 12: Controls And Indicators

    Controls and Indicators The printer’s controls and indicators are shown in the diagram below. The following table explains control and indicator functions. Top Cover Power Indicator Power Switch Ready Indicator Feed Button...
  • Page 13 Control / Function Indicator  On: turns on normal operation  Off: turns off power Power Switch Note: Turn power off before connecting or disconnecting cables  Green light shows the power-on Power Indicator  Light off shows the power-off ...

  • Page 14: Loading Ribbon And Media

    Loading Ribbon and Media This section describes how to load ribbon and media in the OS Series printer. Loading Ribbon Note: This section does not apply to direct thermal printing. 1. Lift the top cover to expose the media compartment. 2.
  • Page 15 Media Compartment Print Head Module Release Lever Release Lever Ribbon Supply Holder...
  • Page 16 4. Unwrap the ribbon roll pack and separate the ribbon roll and the bare core. 5. Attach the edge of the ribbon on the bare core and wind it a little bit onto the core. 6. Insert the ribbon roll into the supply holder. (First snap in the left side and then the right side.) Ribbon Supply Holder Ribbon Roll...
  • Page 17 7. Turn back the print head module and then insert the bare core into the pick-up holder. (First snap in the left side, and then the right side.) Ribbon Pick-up Holder Bare Core...
  • Page 18 8. Turn the wheel of the print head module to ensure the ribbon is tightly wound. 9. Press down the print head module firmly until you hear a snap. Wheel Print Head Module...

  • Page 19: Loading Media

    Loading Media The OS-214NU and OS-214NUZ printers offer Two different loading modes: standard or with a cutter.  Standard mode allows you to collect each label freely.  Cutter mode automatically cuts the label after it prints. Standard Mode 1. Lift the top cover to expose the media compartment.
  • Page 20 2. Remove the media hanger. Media Compartment Media Hanger 3. Load the media roll onto the hanger from left to right. Media Roll Media Hanger...
  • Page 21 4. Click the media hanger back into the media compartment. 5. Align the media roll to the left end. 6. Move the shield from right to left until it leans against the media. Media Compartment Media Roll Shield...
  • Page 22 7. Unlatch the print head module. 8. Hold the print head module upright with one hand to allow the media to pass under it. Lead the media through the media guides with the other hand. 9. Lead the media over the platen roller. Print Head Module Media Guides...
  • Page 23 10. Put the print head module down and press down firmly until you hear a snap. 11. Close the top cover and turn on the printer or press the "FEED" button if the printer is already on. Print Head Module...

  • Page 24: Cutter Mode

    Cutter Mode Note: For Cutter mode you must first install the cutter and add the cutter baby board to J16 on the main board. Please refer to Appendix I. Follow Steps 1 to 8 listed in Standard Mode above. 9. Thread the media over the platen roller, then route the media through the slot of the cutter module.
  • Page 25 11. Close the top cover and turn on the printer or press the "FEED" button if the printer is already on. Note: The "FEED" button does not make the printer cut. Cutting occurs only when the software is properly set.

  • Page 26: Calibration And Configuration

    Calibration and Configuration This section discusses calibration, printing configuration and resetting the printer to factory defaults. Performing Calibration and Configuration Turn off the printer power. Press and hold the feed button while turning on the power, until the printing motor is activated. Calibration is performed while the printer automatically feeds the label stock for a certain length, the printing motor suspends for one second and then prints out a configuration...

  • Page 27: Resetting To Factory Default Settings

    Resetting to Factory Default Settings 1. Turn on the printer and wait for 5 or more seconds. 2. Press the "Feed" button for 10 seconds, and the "Ready" indicator and "Power" indicator will go off in order. 3. When the two indicators relight, release the feed button. 4.

  • Page 28: Computer Connections

    Computer Connections Note: You must insert the power supply’s barrel connector into the power jack on the back of the printer before connecting communication cables. This printer comes with a nine-pin Electronics Industries Association (EIA) RS-232 serial data interface, a USB interface and Ethernet option.

  • Page 29: Serial (Rs-232) Interface Requirements

    Serial (RS-232) Interface Requirements The required cable must have a nine-pin "D" type male connector on one end, which is plugged into the mating serial port located on the back of the printer. The other end of the signal interface cable connects to a serial port on the host computer.

  • Page 30: Serial Cabling Requirements

    Serial Cabling Requirements Data cables must be of fully shielded construction and fitted with metal or metalized connector shells. Shielded cables and connectors are required to prevent radiation and reception of electrical noise. To minimize electrical noise pickup in the cable: ...

  • Page 31: Parallel Interface Requirements

    Parallel Interface Requirements The required cable (IEEE 1284-compliant is recommended) must have a standard 36-pin parallel connector on one end, which is plugged into the parallel port located on the back of the printer. The other end of the parallel interface cable connects to the printer connector at the host computer.

  • Page 32: Communicating With The Printer

    Windows XP/ Vista/ Win 7/ Win 8, supporting 32-bit/ 64-bit operation systems. With this driver you can operate any popular Windows software applications including Argox Bartender UL label editing software or MS Word, etc., to print to this printer. The following installation steps are based on OS-2140 as an example.
  • Page 33 USB port on the printer and on the PC. 2. Turn on the printer. If the printer supports Plug-and-Play, and you have successfully connected it using a USB cable, then the Windows Add Hardware Wizard will automatically detect the printer and display a dialog that allows you to install a driver.
  • Page 34 Instead of the flash prompt above, another way to install Seagull driver is to run the DriverWizard utility from the Installation Directory where the Seagull driver files are located. 5. On the Seagull Driver Wizard prompt, select the first radio button to “Install a driver for a Plug and Play printer”:...
  • Page 35 Argox OS-2140 PPLA Then click “Next.”...
  • Page 36 6. Enter Printer name (i.e. Argox OS-2140 PPLA) and select "do not share this printer”, and click "Next". Argox OS-2140 PPLA...
  • Page 37 7. Check all the data on the showing screen, if it is correct, click "Finish". Argox OS-2140 PPLA USB002 Argox OS-2140 PPLA 7.1.9_M-5...
  • Page 38 8. After the related files have been copied to your system, click "Finish". Installing printer ‘Argox OS-2140 PPLA’…...
  • Page 39 9. After driver installation is complete, click "Close". The driver should now be installed. Installed printer Argox OS-2140 PPLA...

  • Page 40: Installing The Printer Driver

    Installing the Printer Driver 1. Turn off the printer. Plug the power cable into the power socket on the wall, and then connect the other end of the cable to printer's power socket. Connect the USB cable, Serial cable, or Ethernet cable to the proper port on the printer and on your computer.
  • Page 41 3. Under OS-2140 product selection prompt, choose Seagull Driver version and then start installation: Instead of the flash prompt above, another way to install Seagull driver is to run the DriverWizard utility from the Installation Directory where the Seagull driver files are located.
  • Page 42 4. On the prompt, Windows Printer Driver, select “I accept…” and click "Next".
  • Page 43 5. Assign the directory to keep Seagull driver, (for example: C:\Seagull) and click "Next".
  • Page 44 6. Click "Finish".
  • Page 45 7. Select Install printer drivers and Click "Next"...
  • Page 46 8. Select model & emulation - the following examples are based on model OS-2140 PPLA: A rgox OS-2140 PPLA...
  • Page 47 9. Select the port of the printer and click "Next".
  • Page 48 10. Enter Printer name (i.e. Argox OS-2140 PPLA) and select "do not share this printer”, and click "Next". Argox OS-2140 PPLA...
  • Page 49 11. Check all the data on the showing screen, if it is correct, click "Finish". Argox OS-2140 PPLA USB001 Argox OS-2140 PPLA 7.1.9_M-5...
  • Page 50 12. After the related files have been copied to your system, click "Finish". Installing printer ‘Argox OS-2140 PPLA’…...
  • Page 51 13. After driver installation is complete, click "Close". The driver should now be installed. Installed printer Argox OS-2140 PPLA...

  • Page 52: Troubleshooting

    Troubleshooting Normally, when the printer is in not working properly, the "Power" LED blinks continuously; while printing and communication between the host and printer stops. LED Diagnosis Power and Ready LEDs blinking continuously indicates printer errors. To understand the problem, please observe the Power and Ready LEDs and refer to the following solutions: LED Indicators: Power and Ready LEDs blink at the same tempo Power LED...
  • Page 53 LED Indicators: Power and Ready LEDs blink alternately Power LED Ready LED Possible Problems Solutions Remarks Ribbon out Supply the ribbon roll Not applicable to direct thermal Ribbon jam Recover the jam type. Ribbon sensor error Replace ribbon sensor LED Indicators: Only the Power LED blinks Power LED Ready LED Possible Problems Solutions...
  • Page 54 LED Indicators: Only the Ready LED blinks Power LED Ready LED Possible Problems Solutions Remarks Print head too hot Printing will stop until the print head cools to an acceptable printing temperature. When it does, the printer will automatically resume operation.

  • Page 55: Miscellaneous

    Miscellaneous If the host shows "Printer Time out" 1. Check if the communication cable (parallel or serial) is connected securely to your parallel or serial port on the PC and to the connector on the printer at the other end. 2.

  • Page 56: Recovery

     Poor printout quality:  The ribbon may not be qualified.  The media may not be qualified.  Adjust the Darkness (heat temperature).  Slow down the print speed.  Refer to the next chapter and clean the related spare parts.

  • Page 57: Caring For Your Printer

    Caring for Your Printer Adhesives and coatings of media can over time transfer onto the printer components along the media path including the thermal print head and media sensor. This build-up can accumulate dust and debris. Failure to clean the print head, media path, and media sensor could result in inadvertent loss off labels, label jams and possible damage to the printer.
  • Page 58 TPH Cleaning Interval: It’s strongly recommended to regularly clean print heads at least when changing every one ribbon roll (in thermal transfer printing mode), or every one label roll (in direct thermal printing mode). In addition, if printers are operated under critical applications and environments, or it’s found print quality is degraded, please clean print heads more frequently.
  • Page 59 Special Caution: Warranty of print heads will be void if print head serial number is removed, altered, defected, or made illegible, under every circumstance.

  • Page 60: Replacing The Thermal Print Head

    Replacing the Thermal Print Head 1. Switch off the power and wait for both LEDs to go off. 2. Unlatch the print head module. 3. Remove the ribbon. 4. Push the print head firmly into the casing and shift it to the left.
  • Page 61 6. Disassemble the print head and the mounting bracket by releasing screws. 7. Replace with a new print head. Reassemble the print head module in reverse order. Be careful not to touch the print head elements.

  • Page 62: Important Notice During Tph Replacement

    Important notice during TPH replacement 1. Heater line should NOT be touched by bare hands to prevent any damage caused by ESD or corrosion. 2. Surface of heaters should NOT be hit or scratched by sharp or hard things to prevent any damage by scratch. 3.

  • Page 63: Technical Reference

    Technical Reference General Specifications Specifications OS-214NU Printing Method Direct Thermal / Thermal Transfer Printing Resolution 200 dpi(8 dots/mm) Printing Speed Up to 4ips (101.6mm/s) Printing Length Max 100”(2540mm) Printing Width Max 4.16”(105mm) 8MB DRAM(5MB user available) Memory Flash ROM(6MB user available)
  • Page 64 digit),Code 93 Interleaved 2 of 5 (standard/with checksum digit/with human readable check digit), EAN-8 (standard/2 digit add-on/5 digit add-on), EAN-13 (standard/2 digit add-on/5 digit add-on), UPC-A (standard/2 digit add-on/5digit add-on), UPC-E (standard/2 digit add-on/5 digit add-on), Postnet, Codabar, Code 128 subset A/B/C, Code 128 UCC (Shipping Container Code), Code 128 Auto, German, Postcode, Matrix 2 of 5, UCC/EAN 128, UPC Interleaved 2 of 5, GS1 Data Bar...
  • Page 65 Max roll capacity(OD):4.3”(109mm) Ribbon Width: 1”~4” Ribbon roll – max OD: 1.45”(37mm) Ribbon Length: max 91m Ribbon Core size – ID: 0.5”(12.7mm) with notch Wax, Wax/Resin, Resin (Outside Ribbon) Dimensions W 186mm x H 165mm x L 278mm Weight 2.0kgs Universal Switching Power Supply Input: Power Source 100V~240V±10%, 1.5A, 50~60Hz, Output:...

  • Page 66: Fonts, Bar Codes And Graphics Specification

    Fonts, Bar Codes and Graphics Specification The specifications of fonts, bar codes and graphics depends on the printer emulation. The emulations PPLA, PPLB and PPLZ are printer programming languages, through which the host can communicate with your printer. Printer Programming Language A, PPLA Programming PPLA Language...

  • Page 67: Printer Programming Language B, Pplb

    Printer Programming Language B, PPLB Programming PPLB Language Internal fonts 5 fonts with different point size 8 bits code page : 437, 850, 852, 860, 863, 865, 857, 861, 862, 855, 866, 737,851,869, 1252, 1250, 1251, Symbol sets 1253, 1254, 1255 7 bits code page: USA, BRITISH, GERMAN, (Code pages) FRENCH, DANISH, ITALIAN,...

  • Page 68: Printer Programming Language Z, Pplz

    Printer Programming Language Z, PPLZ Programming PPLZ Language 8 (A~H) fonts with different point size. 8 AGFA fonts: 7 (P~V) fonts with fixed different Internal fonts point size (can’t scale). 1 (0) font with scaling point size. USA1, USA2, UK, HOLLAND, DENMARK Symbol sets , NORWAY, SWEDEN/FINLAND, GERMAN , FRANCE1, FRANCE2, ITALY, SPAIN, MISC,...
  • Page 69 Notes: 1. The bare core for the ribbon must be 11 cm in length. It should have two opposite slits at two ends. If the ribbon itself is less than 11 cm, it must be aligned with the bare core in the left side when you install it.

  • Page 70: Interface Specifications

    Interface Specifications USB Interface This is port complies with USB 2.0 Full Speed. Connector Terminal Pin Assignment Signal Description VBUS Differential data signaling pair - Differential data signaling pair + Ground USB series “B” Receptacle Interface...

  • Page 71: Serial

    Serial The RS232 connector on the printer side is a female, DB-9. Direction Definition Shorted to Pin 6 RxData TxData N.C. Ground Shorted to Pin 1 Note : Pin 9 are reserved for KDU (keyboard device unit), therefore do not connect these pins if you are using a general host like a PC.

  • Page 72: Ethernet

    Ethernet The following port complies with Ethernet communication. Signal Transmit+ Transmit- Receive+ Reserved Reserved Receive- Reserved Reserved...

  • Page 73: Parallel (Centronics)

    Parallel (Centronics) The parallel port is a standard 36-pin Centronics, which complies with IEEE 1284 standard (compatibility mode). Pin assignments are as follows: Direction Definition Direction Definition n/STROBE Ground Chassis Data 1~8 Ground Peripheral nACK High Signal BUSY 19~30 Ground nINIT SELECT nFAULT...

  • Page 74: Connection With Host

    Connection with host Host 25S Printer 9P Host 9S Printer 9P (PC or compatible) (PC or compatible) DTR 20 …… 1 DSR …… 1 DSR DTR 4 …… 6 DTR …… 6 DTR DSR 6 DSR 6 …… 2 RX ……...
  • Page 75 Printer Terminal/Host Pin 2- RxData ……… TxData Pin 3- TxData ……… RxData Pin 5- Ground ……… Ground In general, as long as the data quantity is not too large and you use Xon/Xoff as flow control, it will be problem free. 2400, 4800, 9600(default), 19200, 38400, Baud rate: 57600, 115200 bauds...

  • Page 76: Appendix I - Installing The Cutter

    Appendix I - Installing the Cutter 1. Turn off the printer power and unplug the power cable and Serial / USB cable. 2. Remove the top cover. 3. Remove the two screws under the base housing.
  • Page 77 4. Remove the whole print head assembly by releasing the 4 screws at its feet. Print Head Assembly 5. Add the cutter baby board to J16 on the main board.
  • Page 78 6. Secure the four screws attaching the cutter. Cutter 7. Plug the cutter's connector into the PCB's header connector (J9). 8. Reattach the print head assembly by securing the 4 screws. 9. Click back the middle cover. 10. Secure the two screws for the base housing. 11.

  • Page 79: Appendix Ii - Installing The Extension Card

    Appendix II - Installing the Extension Card Extension Card designated for all optional extension modules. For example, RTC card and Add-on card. Install the extension card into the printer as follows: 1. Turn off the printer power. 2. Remove the top cover. 3.
  • Page 80 4. Remove the middle cover. 5. Mount the extension card to J14 on the main board. 6. Click back the middle cover. 7. Secure the two screws for the base housing. 8. Click the top cover into place.
