- Page 1 User Guide qubeAVprolight Version 08/2024...
-
Page 2: Table Of Contents
General information Safety instructions qubeAVprolight Assembly instructions Connections Rack-Case: Intercom station: Voice to Sim Activate license key Make settings Integrating and setting up audio and video sources Integrate external video source via HDMI in Setting the preroll Marker Settings in the real-time view... -
Page 3: General Information
General information The SKILLQUBE audio-video system is a mobile debriefing system designed for mobile and stationary use. It can analyze and debrief the training scenario with up to three cameras. Safety instructions ● Never operate the qubeAVprolight system unattended ●... -
Page 4: Qubeavprolight Assembly Instructions

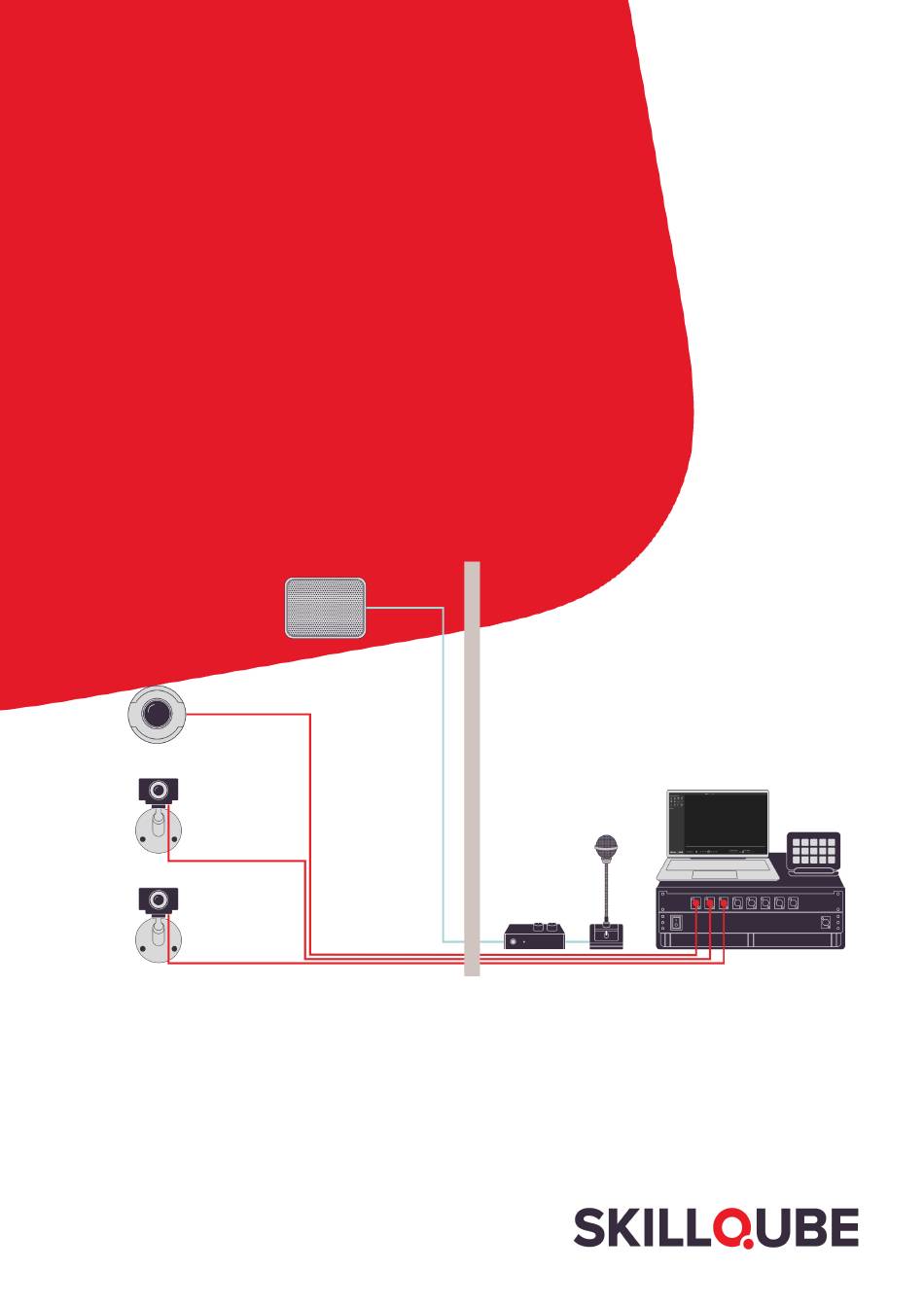

Assembly instructions qubeAVprolight debriefing system consists of ● Box with Rack-Case ○ Connections for accessories MacBook ○ ● Boxes with accessories ○ 3x 20m LAN cable 2x Box IP-Camera ○ ○ 1x PTZ IP-Camera ○ 1x loudspeaker with power supply 1x Audio Cable 10m ○... -
Page 5: Intercom Station: Voice To Sim
3. Connect the preamplifier and the loudspeaker to the power supply. Activate license key You will usually receive your qubeAVprolight debriefing system fully set up. In this case, you can skip this point. If no license key has been entered yet, proceed as follows:... - Page 6 2. After starting the software, the start screen opens. To activate the license, click Open Settings. 3. Click on the lock at the bottom left to enter the license key. 4. Once you have entered the license key correctly, close the lock at the bottom left and click Close.
-
Page 7: Make Settings
Make settings After you have connected all the hardware components and started using the MacBook, we will guide you through the settings in the qubeAVprolight software. Integrating and setting up audio and video sources Open qubeAV 2. To change the settings, use the ⌘ + shortcut or click on... - Page 8 Note: Your simulation monitor must be in the same WLAN as the qubeAVprolight opened. 4. Once you have selected the desired video source by clicking on it, it will be displayed in the...
-
Page 9: Integrate External Video Source Via Hdmi In
5. To remove a video source from the list, click on the source and click -. 6. The Audio Devices menu item allows you to select the device that provides you with the audio signal. Clicking the + at the bottom left displays all available devices. Generate sounds in the simulation room to check the functionality of the audio source. -
Page 10: Setting The Preroll
3. Click on the General tab in the Settings menu. 4. Now select the desired preroll duration and then click on Close. Marker You have 12 predefined markers at your disposal. SKILLQUBE has set these up and synchronized them with the marker keyboard supplied. The markers cannot be edited. -
Page 11: Settings In The Real-Time View
Use the arrow buttons to move the camera. Connecting qubeAVpro REMOTE Connect the qubeAVpro REMOTE iPad to the qubeAVprolight network and open the app. Click on the WLAN symbol at the bottom right of the qubeAV software. Then click on Connect. Confirm the connection on the qubeAVpro... -
Page 12: Settings In Recording Mode
Settings in recording mode Once you have completed the setup, start recording by clicking the Record button. The status indicator lights up red REC. As soon as you have started recording, the button's color changes to bright red. 2. You can now set as many markers as you like during a recording. Use the supplied marker keyboard, the shortcuts, or the mouse to select the desired marker. -
Page 13: Settings In Playback Mode
Settings in playback mode Marker selection 2. Marker Overview of the markers set with a time stamp and comment 3. Time display of the current recording 4. Display mode: LIVE / REC / PLAY 5. Recording control unit: From left to right: a. -
Page 14: Using The Tile View
A filter (blur effect) will be visible if you pause the video in playback mode. This is automatically removed when you continue playing. If you need the current image, click once in the existing view, and the filter will be removed. Using the quad-split view You have the option of enlarging a single window during recording. -
Page 15: Save Recording
You can also enlarge the image in the available view. To do this, click on the area to Zoomed in. Click again to minimize the zoom. Click the white grid symbol at the top right to return to the quad-split view. Symbol: white grid with four fields. -
Page 16: Opening A Saved Recording
Opening a saved recording Use the shortcut ⌘ + o or go to File and Open the video in the menu bar. Select the video you want to open and press the Open button. Further processing of the recordings The recordings are saved in .qavpro format. If the recordings are to be further processed in third-party programs, the individual video and audio tracks can be accessed by right-clicking on the file and selecting Show package contents. -
Page 17: Shortcuts For Software Control
Shortcuts for software control Shortcut refers to the single or simultaneous pressing of several specific keys on a keyboard. Below is a list of shortcuts with the corresponding action. Shortcut Action ⌘ + , Open the settings (Settings) Close the current action Activate/deactivate Auditorium Switching audio on / off... -
Page 18: Shortcuts Marker
At the same time, pollutants contained in the devices must be removed without harming people or the environment. SKILLQUBE guarantees that all debriefing systems sent to us for disposal will be disposed of and recycled in an environmentally friendly manner. - Page 19 Imprint SKILLQUBE GmbH Schafäckerweg 24, 69168 Wiesloch, Germany Local Court - Register Court - Mannheim HRB 716968 Registered office Wiesloch - Managing Director: Julia Hirsch Authorized signatories: Alexander Claus, Andreas Fromm Mail: info@skillqube.com Homepage: www.skillqube.com Tel.: 06222 / 38 62 65 Fax.: 06222 / 38 63 65...
