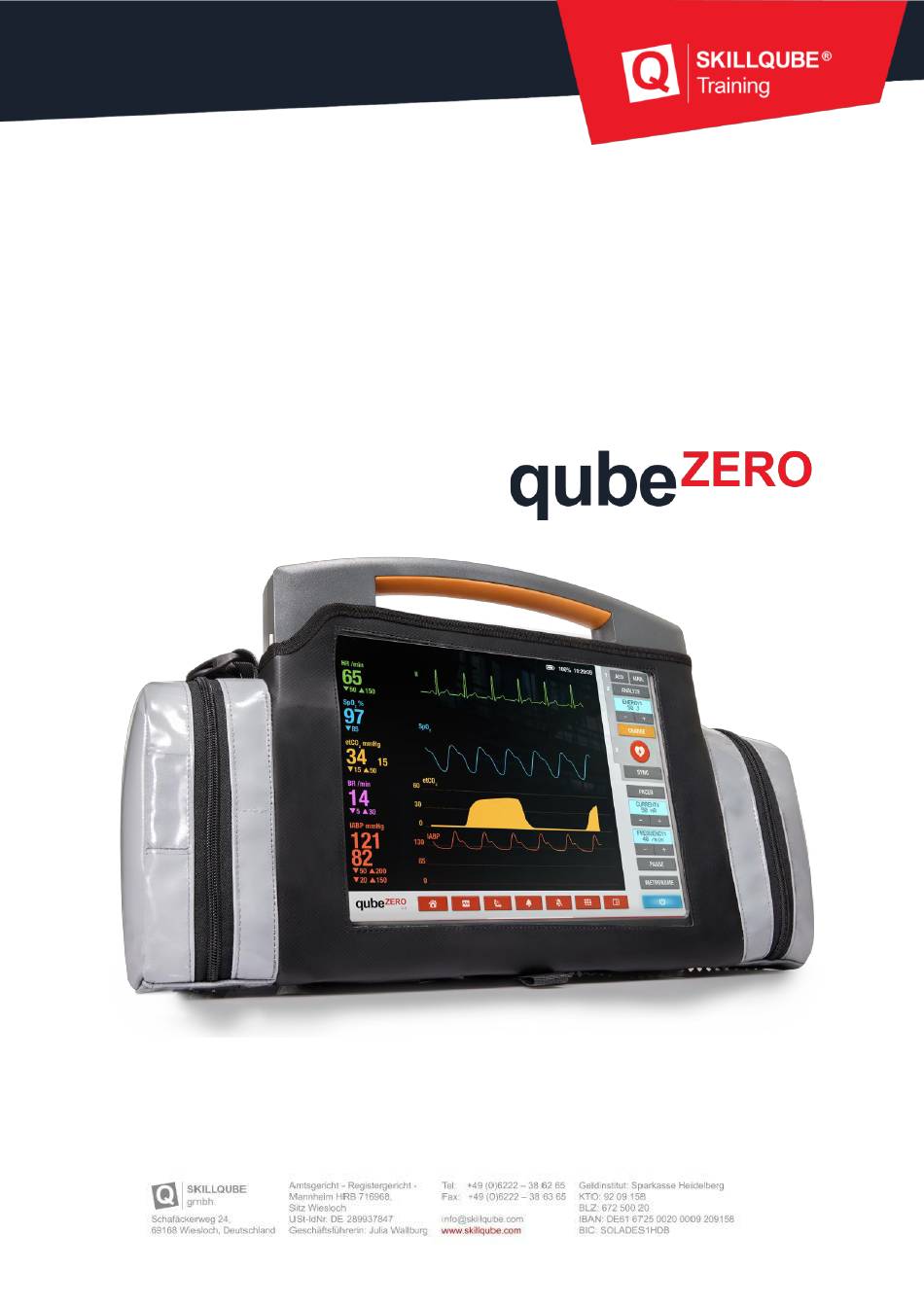

- Page 1 USER MANUAL Version 4.0 Date 01.05.2023...
-
Page 2: Table Of Contents
Overview / Table of contents 1. App Settings 2. Power On/Off and Views 3. Settings on the qubeZERO a. 12-channel ECG b. Blood pressure measurement c. Set alarms / Mute alarms d. Change views e. Choice between clinical and preclinical monitor 4. -
Page 3: App Settings
Monitor-specific app settings are set via the qubeCLOUD. For this, the administrator or the device manager of your organization must make the corresponding settings. For more information, see the qubeCLOUD and qubeCONTROL manual. Only the selection of the app language is done in the local settings. -
Page 4: Settings On The Qubezero
ZERO 3. settings on the qube ZERO The following options are offered at qube 12-channel ECG writing Blood pressure measurement Set alarms / mute alarms Change views Choice between clinical and preclinical monitor a. 12-lead ECG To print a 12-lead ECG, press the corresponding button (1). The information that an ECG has been printed is shared on the controller. -
Page 5: Blood Pressure Measurement
b. Blood pressure measurement If you press the "Blood pressure measurement" button (1), the blood pressure is measured. In the lower area, a dialog box opens in which you can set whether and at what interval an interval measurement should take place (2). c. -
Page 6: Change Views
d. Change views You can switch between three different views by pressing the tile icon. Use the button to the left of the blue on/off switch to toggle between Preclinical & Clinical monitor views. -
Page 7: Aed
To start the AED, tap the "AED" button (1). Another window with information opens. Activate/deactivate AED AED instructions Mode Total runtime since AED activation Number of shocks performed Next analysis CPR Feedback Information... -
Page 8: Manual Mode & Sync
To start manual defibrillation, tap the "MAN" button (1). The window with further information opens. Enable/disable manual mode Display Energy for defibrillation in joules Mode display Total run time since manual defibrillator is activated Number of shocks performed Time since the last shock Synchronized defibrillation on/off CPR Feedback Information... -
Page 9: Pacer / Pacemaker
6. pacer / pacer To activate the pacer, tap the "Pacer" button (1). For the "Frequency" and "Current" displays, corresponding values can be set using the +/- keys. If Pause is pressed, the pacer is paused. Switch pacemaker on/off Setting of the current intensity via +/- Setting the frequency via +/- Pausing the pacer (frequency is divided by four) Pacer runtime... -
Page 10: Metronome
metronome A metronome can be used to support the CPR frequency. This is called up by tapping the "Metronome" button. You can now select different modes. 30 / 2 (recommended ratio for adults) 15 / 2 (recommended ratio for the child) Continuous If you are using our qubeCPR and have selected the CPR feedback pads as the derivation, participants on the qubeZERO will receive feedback on their compression quality using bars...
