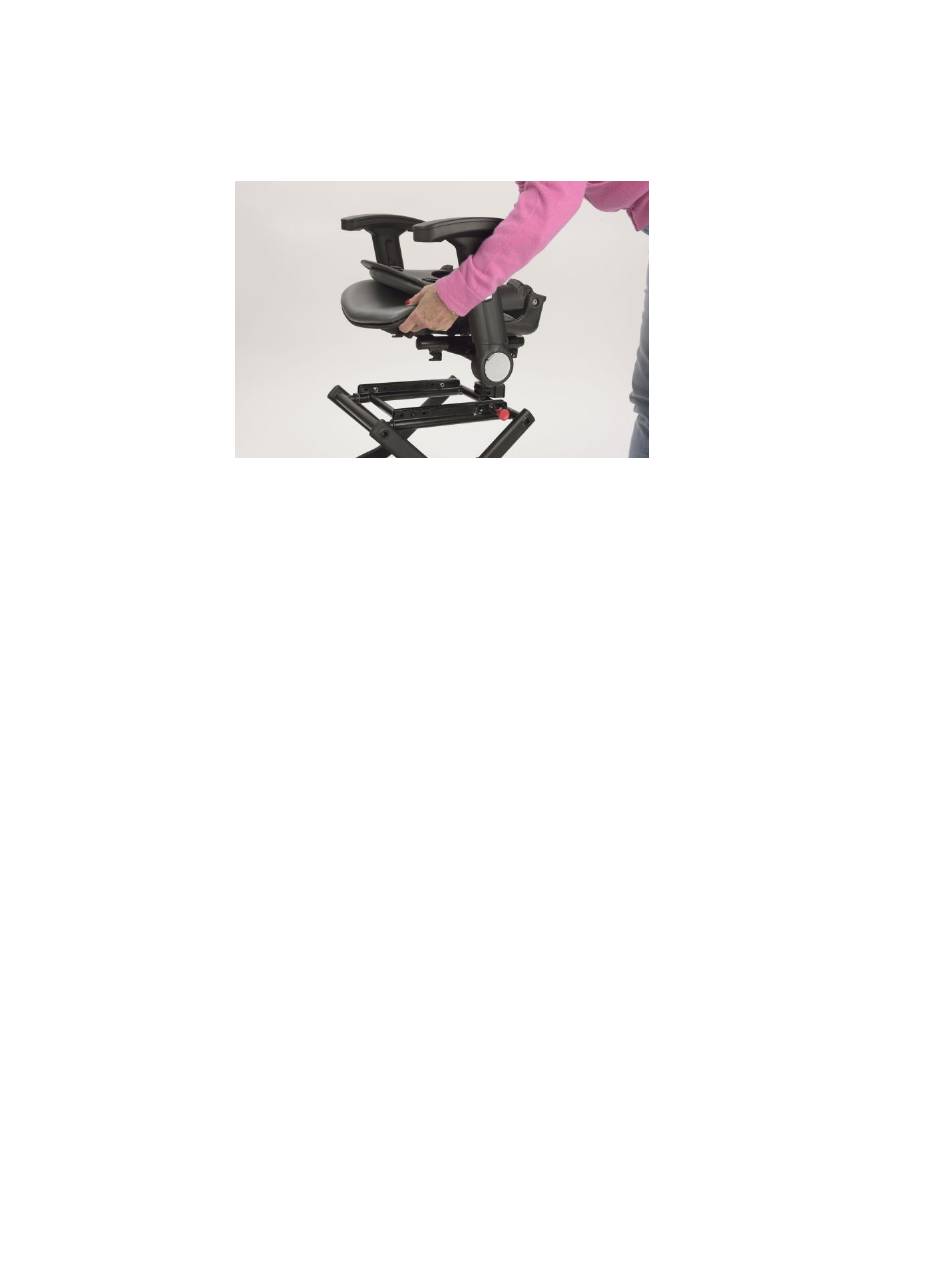

2. Slide the seat backwards slightly and lift away from the base.
To replace the seat simply reverse these steps.

8. Charging Your Minimo Plus

The battery charger supplied is special to your Minimo Plus and so it may not be suitable for
any other powered mobility product. Only use the charger supplied with your Minimo Plus as
other makes of chargers may permanently damage your batteries and will void the warranty.
To charge your Minimo Plus battery follow these simple steps:
1. Switch OFF your Minimo Plus and remove the key
2. Plug the charger lead into a suitable wall outlet and switch on
3. You will see the light on the charger will turn Red to indicate it is ready to charge
4. Plug the charger lead into the socket located on your Minimo Plus battery pack
5. You will see the light on the charger will turn Orange to indicate it is charging
6. After a period of time the light on the charger will turn Green indicating the battery is fully
charged
7. At this time the charger can be disconnected and your Minimo Plus is ready for use. NB At
the point the Green light comes on the charger will automatically stop charging although the
light will still be on. The battery cannot overcharge
8. Depending on the depth of the discharge, the time taken to recharge your Lithium Minimo
Plus battery fully will be between 5-6 hours. Please note that this time may increase as batteries
get older. During periods without use (perhaps during the winter) it is wise to charge the
batteries every 4 to 6 weeks.
9. For the best results your batteries must be cycled for their first 18-20 charges. This means
run them down as much as you safely can in use and then give them a full charge. They will not
work at their best until this process has been carried out.
11
