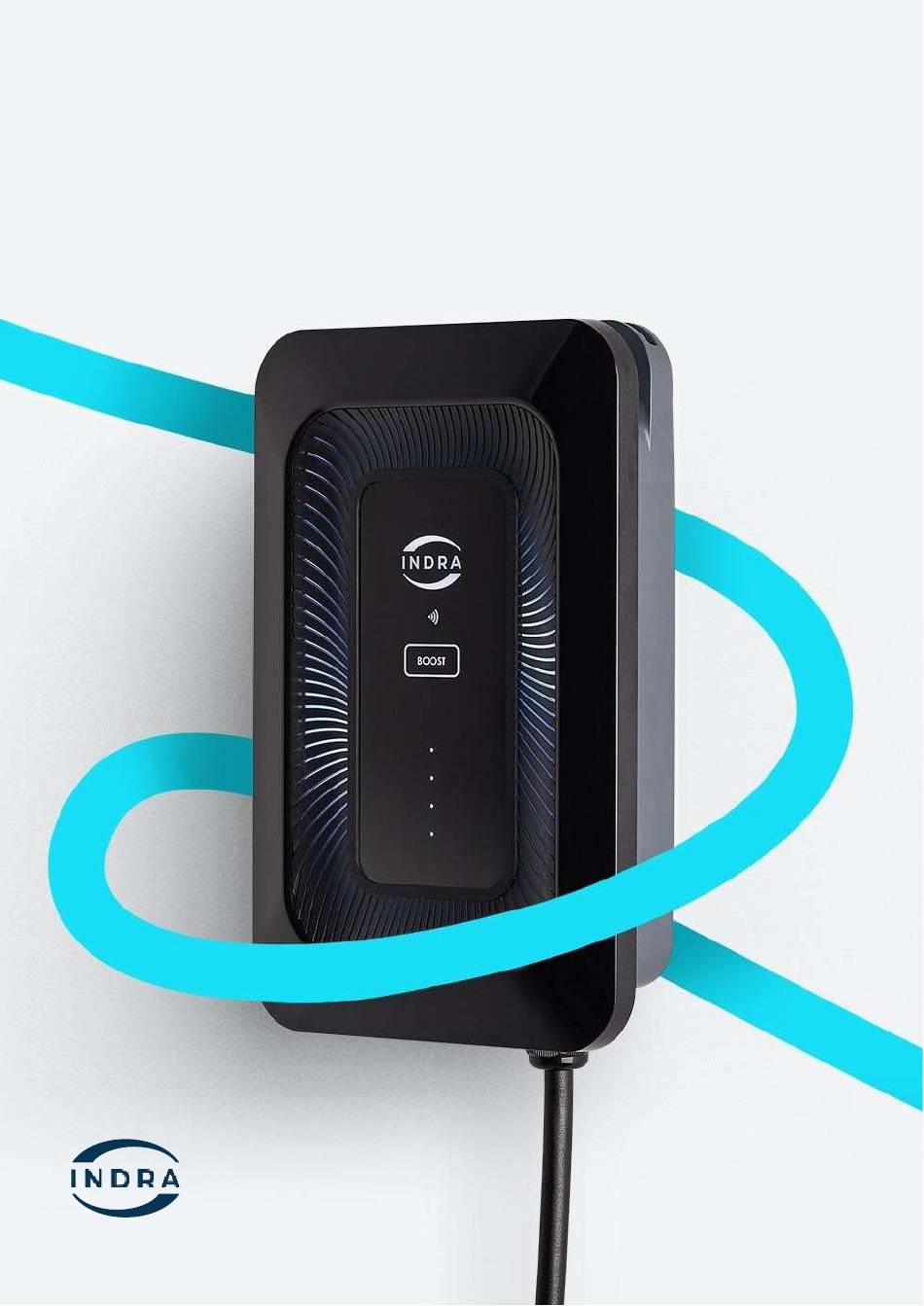

- Page 1 Indra Smart Charger Installation Guide Be at the forefront of EV charging with Indra’s pioneering technology...
-
Page 2: Table Of Contents
Contents Smart PRO Tethered ................. 4 Smart PRO Untethered ................4 Smart PRO Gen 2 Tethered ..............5 Smart PRO Gen 2 Untethered ..............5 Smart LUX™ ....................6 General Description .................. 6 General Warnings and Safety ..............7 Overview and Intended Use Environment ..........8 Indra Smart Features ................ - Page 3 Smart LUX™ Storage Hook ..............20 Cable Entry - Smart LUX™ ..............21 Cable Entry - Smart PRO ................ 22 Connect Mains Cables - Smart LUX™ ........... 23 Connect Mains Cables - Smart PRO ............24 Connect Mains Cables - Smart PRO Gen 2 ........... 25 Installing a Reference Pin ..............
-
Page 4: Smart Pro Tethered
Indra’s Range of Smart Chargers Smart PRO Tethered Smart PRO (SPRFGT2WG402) has an IEC 62196 (Type 2) 6M tethered charging connector to be used with Type 2 socket fitted EVs. Smart PRO Untethered Smart PRO Untethered (SPRFGSKWG404) has an IEC 62196 (Type 2) socket as part of the front... -
Page 5: Smart Pro Gen 2 Tethered
Smart PRO Gen 2 Tethered Smart PRO has an IEC 62196 (Type 2) 6M (SPRFGT2WG403) or 9.4M (SPRFGT2WG404) tethered charging connector to be used with Type 2 socket fitted EVs. Smart PRO Gen 2 Untethered Smart PRO Untethered (SPRFGSKWG403) has an 62196 (Type 2) socket as part of the front body. -
Page 6: Smart Lux
INDRA WHITE, 10M General Description This manual describes the method of installation and hardware operation of the Indra’s Range of Smart Chargers, where the charger is a permanently installed electric vehicle charging solution for resistive domestic and commercial loads of at least 6A and up to 32A at 230V,... -
Page 7: General Warnings And Safety
General Warnings and Safety • The Indra’s Range of Smart Chargers should only be installed and maintained by a suitably competent electrician who has successfully completed Indra product training. Failure to comply will VOID the product warranty. • The Smart Range is designed for permanent installation and should only be used within the parameters set out in the technical specification and on the product label. -
Page 8: Overview And Intended Use Environment
‘Boost’ functionality overrides any smart grid criteria and provides instantaneous charging capability. Charging using Indra Smart chargers can take place at up to 7.4kW, but due to modulation capability (measured by the external CT clamp) this power output level can also be reduced. -
Page 9: Indra Smart Features
O-PEN Fault Detection Indra’s Smart PRO and Smart LUX products have built-in O-PEN protection in the form of Indra’s patented PESTs. This offers multiple options to comply with the PEN fault regulations, including Line to Neutral Voltage monitoring (PEST mode B) and CPC to true earth voltage monitoring (PEST mode A). -
Page 10: Tariff Intelligence
A gile. Solar Mode This mode can be selected in the Indra App and can enable the customer to use any excess solar energy (or any other form of micro-generation) to charge their car. The external CT monitors how much energy is being exported from the installation. If the installation is exporting more than 1.4KW, then the charger will offer the car a charge. -
Page 11: Pen Fault, Earthing, Simultaneous Touch (Pests) Protection
A1:2020+A2:2022; section 722.411.4.1. For the purposes of design/installation we have two modes of operation which Indra call A & B. Mode A can be configured with or without a reference pin. The safest installation configuration is mode A with reference electrode. -
Page 12: Pests Decision Workflow
PESTs Decision Workflow... -
Page 13: General Installation Notes
General Installation Notes WARNING: FAILURE TO COMPLY WITH THESE INSTRUCTIONS COULD PRESENT A HAZARD The Indra Smart Range must be installed by a qualified electrician who has completed Indra Academy Training. Any servicing or tampering by a non-qualified professional electrician WILL void the warranty. -
Page 14: Charger Layout - Smart Lux
Charger Layout - Smart LUX™ CT Connections Wireless Dongle allocated position USB & RJ45 Live Neutral REF CPC PESTs Mode Switch Tamper Sensor... -
Page 15: Charger Layout - Smart Pro
Charger Layout - Smart PRO CT Connections Wireless Dongle allocated position USB & RJ45 Live Neutral REF CPC PESTs Mode Switch Tamper Sensor... -
Page 16: Charger Layout - Smart Pro Gen 2
Charger Layout - Smart PRO Gen 2 CT Connections Wireless Dongle allocated position USB & RJ45 Live Neutral REF CPC PESTs Mode Switch Tamper Sensor... -
Page 17: Pre-Installation Survey
Pre-Installation Survey Before installing an Indra smart charger, we recommend surveying the installation to ensure that an install can go ahead; and that the charger is appropriate for the customers’ requirements. This survey should include: • Identify the earthing arrangement of the property and the required PEST mode. -
Page 18: Installation Procedure
Installation Procedure Indra smart chargers are supplied with the general screws and wall fixings that are required to permanently fix them in position. However, it remains the responsibility of the installer to evaluate the suitability of the installation surface and use the appropriate fixing. -
Page 19: Choosing The Charger Location
Choosing the Charger Location • Select an installation location that ensures future servicing of the Indra Smart charger, where the back plate can be mounted flush to a flat wall and screws can be used to permanently secure the charger in position. -
Page 20: Hanging The Charger
Hanging the charger • Hold the top of the charger just above the wall bracket, tilting the bottom of the charger away from the wall. • Lower the charger onto the two prongs at the top then hinge the charger back flush with the bracket. -
Page 21: Cable Entry - Smart Lux
Cable Entry - Smart LUX™ The Smart LUX™ is designed with two cable entries in the bottom edge and one in the rear (Identified in blue on Figure 4). • All cable entry points are designed for a 25mm hole. •... -
Page 22: Cable Entry - Smart Pro
Cable Entry - Smart PRO The Smart PRO is designed with four cable entry points, two in the bottom edge and two in the rear (Identified in blue on Figure 5). • Cable entry point 1 is designed for a 25mm hole. •... -
Page 23: Connect Mains Cables - Smart Lux
Ensure any tension is removed from the connection by dressing the cable appropriately. Note: Indra recommends the use of bootlace ferrules on class 5 & 6 cables ONLY. Note: Indra recommends using EV Ultra Cable from Doncaster Cables as is contains power and data in the same cable. -
Page 24: Connect Mains Cables - Smart Pro
Connect Mains Cables - Smart PRO Note: Cut the mains wires with reference to the Wire Cut Length table. • Remove the outer insulation of the cable, leaving 10mm protruding from the gland. • Route the wires as per Figure 7. •... -
Page 25: Connect Mains Cables - Smart Pro Gen 2
Connect Mains Cables - Smart PRO Gen 2 Note: Cut the mains wires with reference to the Wire Cut Length table. • Remove the outer insulation of the cable, leaving 10mm protruding from the gland. • Route the wires as per Figure 7. •... -
Page 26: Installing A Reference Pin
Drive the pin straight into the ground, leaving enough length at its tip to secure the clamping terminal. • Attach the lug clamp terminal and run a length of cable (Indra recommend solar PV cable) back to the charger. •... -
Page 27: Connectivity Wi-Fi
Connecting the charger to the Wi-Fi can be carried out after the charger has been sealed and powered up. Note: If installing on Wi-Fi, Indra recommends using the Installer App due to improved user experience and improved range of connectivity. -
Page 28: Wi-Fi Pairing (App)
Routing the USB extension should be executed as per Figures 11 & 12, to ensure the tamper sensor does not become blocked. Wi-Fi Pairing (App) Open the Indra Installer App Follow the on-screen instructions Note: See Pg. 39 for QR Codes to App. -
Page 29: Hardwired
Hardwired Note: Indra recommends the use of hardwired internet back to the customer’s router, as the best option based on reliability. • Route a cable from the customer’s Wi-Fi router back to the charger and use an appropriately sized IP68 gland to enter the bottom of the charger. - Page 30 This can be done by using a signal analyser. A minimum speed of 4Mbps is required. Indra cannot be held responsible for the intermittent nature of cellular network, nor the lack of signal in the chosen area. Note: Internet signal strength can vary based on usage in the area; provider maintenance;...
-
Page 31: External Ct Clamp
This would usually be a junction box near the switchgear of the charger circuit. Note: Indra recommends the use of EV Ultra Cable from Doncaster Cables as it contains power and data combined in one cable. -
Page 32: Testing
Testing All tests should be documented on an Electrical Installation Certificate (EIC). Continuity of protective conductors In accordance with (IAW) Guidance Note 3 to BS7671:2018+A2:2022 Section 2.6.5. This should be carried out between the live and CPC of the mains cable that will connect to the L & CPC lever connectors of the charger. - Page 33 • Power the charger up, once the boot up is complete, connect the EVSE tester to the charger. • Change the mode on the EVSE tester to B, the 4 status lights should begin to flash. • Press the boost button on the charger, the primary LED and status LED’s will go blue. •...
-
Page 34: Sealing The Unit
Sealing the Unit Once all works have been carried out inside the charger, it can be closed and sealed. • Front cover should be secured to a torque rating of between 2-2.5 N/m with 6x 4x8mm Button Head T20 screws. •... -
Page 35: Commissioning
(pg. 36-37) DynaMO Commissioning: Once you have completed the Indra Academy training, you will receive an email containing access to DynaMO. To begin commissioning, scan the QR code on the left side of the charger and it will take you to the DynaMO login page, then follow the installation procedure as instructed in the DynaMO portal. -
Page 36: Offline Charger Firmware Updates
Though the likelihood is that the charger will be being updated to FW.11 because 4G wasn’t suitable in the first place. Equipment: Indra 4G Dongle Process: 1. Power off the charger 2. Insert the 4G dongle to the charger (if required, install a USB extension cable as per the installation manual). - Page 37 4. Power on the charger and wait until the boot cycle is complete. 5. When the Primary Indicating LED is solid white, Call customer support and ask them to send a firmware update to the charger. 6. DO NOT REMOVE THE DATA CABLE CONNECTION UNTIL THE FIRMWARE UPDATE IS COMPLETE.
- Page 38 Firmware version 11 brings several improvements and features to the Indra Smart Range. Most importantly it is the firmware required to use the Indra Installer App for installations. It is recommended that units are installed on v11or greater for improvements to ease of installation when using the installer app.
-
Page 39: Installer App
To get the Installer App go to the App Store ™ or Google Play Store ™ and search for “Indra Installer App”. Please then install the app from the first result that comes up. Or use the below QR code. -
Page 40: Customer Handover
It is also recommended that the installer retains a copy, or evidence of its completion and handover, for their records. A digital version of this form can be found on the Indra website to be emailed to the customer. Also hand the customer the Customer Quick Start Guide. This provides them with support on getting set up on the Indra App. -
Page 41: Wire Cut Lengths
Wire Cut Lengths Smart LUX™ Smart PRO Live 385mm 200mm Neutral 340mm 200mm 310mm 240mm 315mm 200mm 295mm 180mm Troubleshooting Powerline adapters Powerline adapters should not be used on chargers that will service an MG. 4G dongles have an indicating LED on the front, which shows what the dongle is doing. To enable you to see the dongle status LED without exposing live conductive parts, dangle the dongle out of the side of the charger and loosely secure the front of the charger in place. -
Page 42: Meaning Of 4G Dongle Leds
Meaning of 4G Dongle LEDs Stage Colour Time Bootup Random Rainbow Colour Roughly 20s Looking for network Flashing Red Flashing Green (Ready to connect) Solid Green (Connected) Flashing Yellow (Ready to connect) Solid Yellow (Connected) 4G - LTE Flashing Blue (Ready to connect 4G - LTE Solid Blue... -
Page 43: Turbine Lights - Smart Lux
These lights trace around the full circumference of the front panel and are visible through the ‘grill’ of the charger. The Turbine lights can be turned off via the Indra App at any time via the settings. -
Page 44: What Do The Leds On My Charger Mean
What do the LEDs on my charger mean? There are two separate LED indicators on the charger. The Primary LED indicates the charger status, while the four panel LEDs highlight the charger’s current mode. Each of these will illuminate a different colour and will emit a sequence of flashes that indicates the charger’s current state. - Page 45 A serious fault has occurred (This could be an RCD-DD trip event) • Power cycle the charger • If it persists, contact Indra customer support. Primary LED flashing, red There is a temporary fault with the charger (This could be a PESTs trip) •...
- Page 46 Primary LED flashing, orange and purple The charger is in Bluetooth pairing mode. This mode is for connecting the charger to Wi- Fi via the Indra Installer App.
- Page 47 LEDs relating to the four ascending panel LEDs 4 panel LEDs are off The charger is not connected to the car. 4 panel LEDs are steady The charger is offering a charge to the car but is “idle” (The car is not accepting a charge).
-
Page 48: Contact Us
Contact us For more information, please contact us; Online support Email us Call us: (+44) 01684 770 631...
