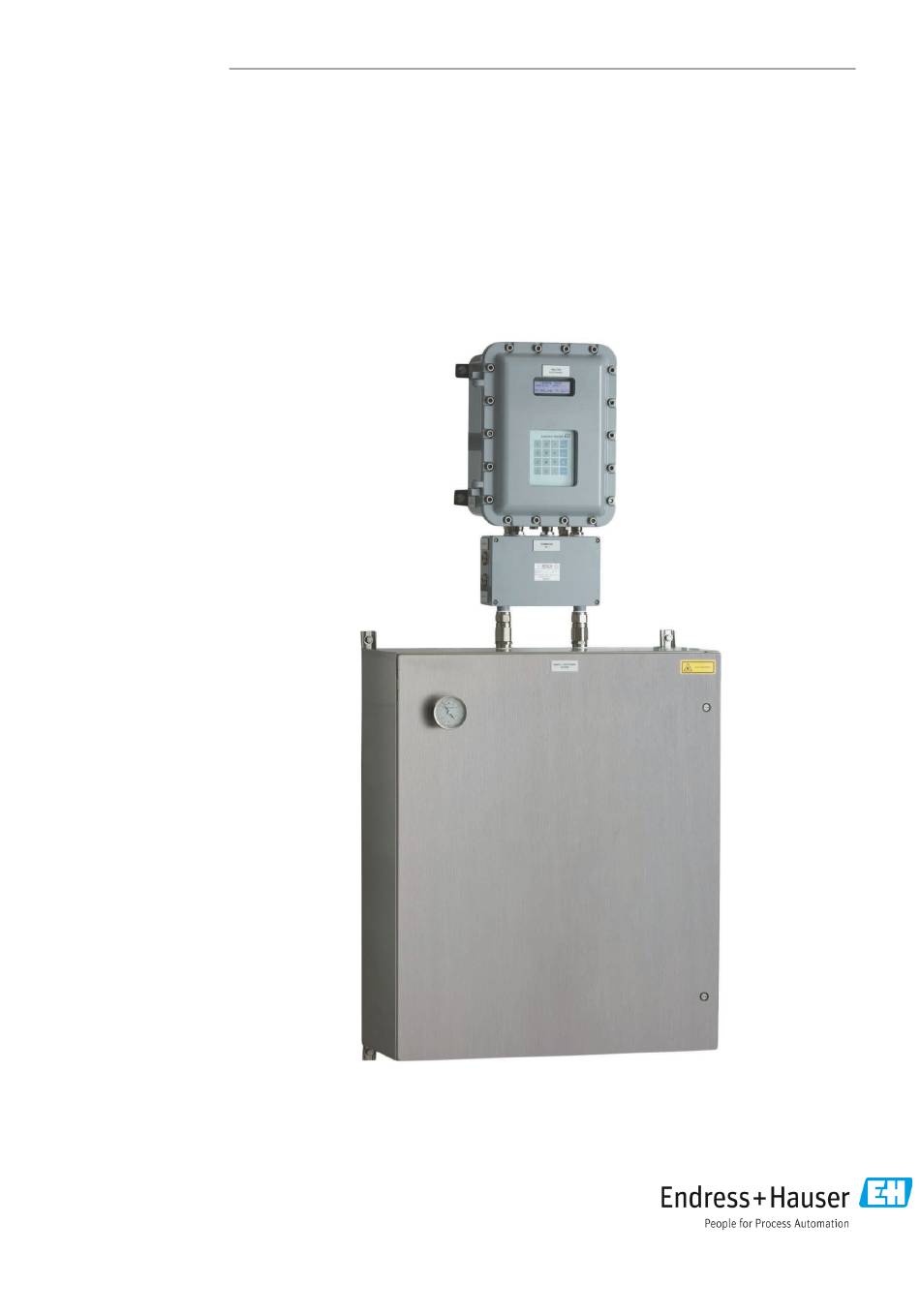

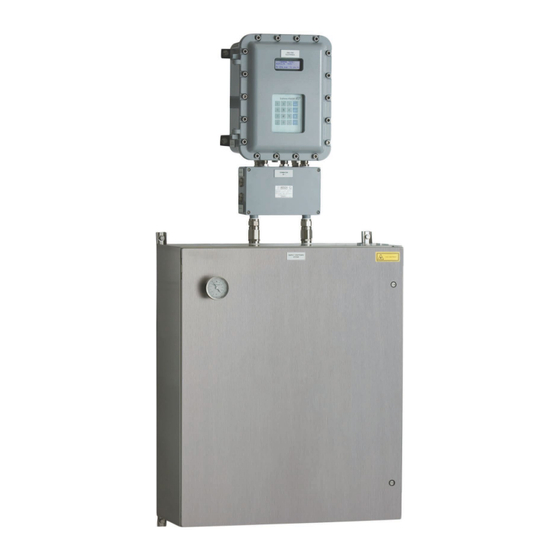

  • Page 1 BA02163C/66/EN/02.24 70220889 Products Solutions Services Operating Instructions SS2100a TDLAS gas analyzer...
  • Page 2 Operating Instructions SS2100a TDLAS gas analyzer Table of Contents Sample Conditioning System ..... 33 6.1 Sample conditioning system overview ....33 About this document ......3 6.2 Checking the SCS Installation ......34 1.1 Document function ..........3 6.3 Starting up the SCS ..........34 1.2 Symbols ..............
  • Page 3 How to Use This Manual There are a number of options and accessories available for the SS2100a. This manual has been written to address the most common options and accessories. Images, tables, and charts have been included to provide a visual understanding of the analyzer and its functions.
  • Page 4 (e.g., heat, arcing, sparking). Toxins. Endress+Hauser analyzers measure a variety of gases, including high-level H S. Follow all safety protocols governing toxic gases and potential leaks.
  • Page 5 Provides the user with an overview of the PP2f (HC12) firmware functionality. Parameters (HC12) U.S. export compliance The policy of Endress+Hauser is in strict compliance with U.S. export control laws as detailed on the website of the Bureau of Industry and Security at the U.S. Department of Commerce.
  • Page 6 About this document SS2100a TDLAS gas analyzer List of abbreviations Term Description alternating current alternate ANSI American National Standards Institute advanced technology extended ATEX atmosphere explosible American wire gauge °C Celsius calibration CDRH Center for Devices and Radiological Health Code of Federal Regulations...
  • Page 7 SS2100a TDLAS gas analyzer Term Description maximum permissible exposure mechanical transfer milliwatt numerical aperture network address translation nanometer NOHD nominal ocular hazard distance Open Platform Communications OPC UA OPC Unified Architecture quality by design process analytical technology power control module...
  • Page 8 Basic safety instructions SS2100a TDLAS gas analyzer 2 Basic safety instructions Each analyzer shipped from the factory includes safety instructions and documentation to the responsible party or operator of the equipment for the purpose of installation and maintenance. This manual can be read and referenced by anyone installing, operating, or having direct contact with the analyzer.
  • Page 9 (to avoid arcing). Intended use Endress+Hauser’s SS2100a products are high-speed, diode laser-based extractive analyzers designed for extremely reliable monitoring of very low (trace) to standard concentrations of specific components in various background gases.
  • Page 10 Due to the gas analyzer’s size and weight (configurations weigh approximately 130 kg [286 lbs]), Endress+Hauser recommends the use of a forkli�, pallet jack to li� and/or move the gas analyzer. If the gas analyzer is to be li�ed by hand, designate multiple individuals and distribute the weight among personnel to avoid injury.
  • Page 11 3 Product description Endress+Hauser gas analyzers are tunable diode laser (TDL) absorption spectrometers operating in the near-to-short wavelength infrared. Each compact sensor consists of a TDL light source, sample cell and detector specifically configured to enable high sensitivity measurement of a particular component within...
  • Page 12 With the SS2100a gas analyzers, sample gas flows continuously through the sample cell ensuring that the sample is always representative of the flow in the main pipe.
  • Page 13 SS2100a TDLAS gas analyzer Product description Description Laser Inlet Far mirror Optical head Detector Window Pressure sensor Temperature sensor Outlet Due to their inherent structure, the molecules in the sample gas each have characteristic natural frequencies (or resonances). When the output of the laser is tuned to one of those natural frequencies, the molecules with that particular resonance will absorb energy from the incident beam.
  • Page 14 3.3.1 Differential TDLAS Similar to TDLAS, this Endress+Hauser technology involves subtracting two spectrums from one another. A “dry” spectrum, a response from the sample when the analyte of interest has been completely removed, is subtracted from the “wet” spectrum, a response from the sample when the analyte is present. The remainder is a spectrum of the pure analyte.
  • Page 15 (ppm) or parts per billion (ppb) detection levels are possible (depending on target and background species) at real-time response rates (on the order of 1 second). All Endress+Hauser TDL gas analyzers employ similar design and hardware platforms. Measuring different trace gases in various mixed hydrocarbon background streams is accomplished by selecting a different optimum diode laser wavelength between 700 to 3000nm, which provides the least amount of...
  • Page 16 Product description SS2100a TDLAS gas analyzer Figure 6: External features of the analyzer. Left side view (left) and front view (right) Description 4X mounting feet LCD display window Keypad window 14X cover screws Signal wiring ports (m25) Power input port (M20)
  • Page 17 SS2100a TDLAS gas analyzer Product description Figure 7: Typical SS2100a configuration # Description 1 Enclosure ground Sample return Frame ground 2 Analyzer power 10 Optional high H2S purge outlet 3 Alarm outputs 11 LCD (display) 4 Analog output 12 Keypad...
  • Page 18 Product description SS2100a TDLAS gas analyzer The electronics panel assembly is shown in the figure below. The sample cell is housed in the SCS enclosure. Figure 8: Components on electronics panel assembly Description Analog input board 0-32 ground stud (protective...
  • Page 19 The SCS enclosure is the bottom module. The figure shows all optional components available in a standard SS2100a SCS. Refer to Sample Conditioning System → for more information and the system drawings, if provided, for your specific gas analyzer configuration. Note: Refer to system drawings in Appendix A: Specifications →...
  • Page 20 Product description SS2100a TDLAS gas analyzer In the top module, the gas analyzer power supply provides power to the gas analyzer control electronics and relays controlling valves. The gas analyzer control electronics drive the laser, collect the signal and analyze the spectra. Powered relays control valves while unpowered relays serve as alarm contacts. An AC line filter is used to condition the input power.
  • Page 21 • Site requirements and installation conditions The SS2100a analyzer can be installed on a wall. Consider the following when choosing an appropriate location for the analyzer: Choose a shaded area or use an optional analyzer hood (or equivalent) to minimize sun exposure to the fully •...
  • Page 22 Mounting hardware • NOTICE  Bolts or screws used for wall-mounting the SS2100a analyzer must be able to support four times the weight of the instrument (approximately 130 kg [286 lbs]). Stainless steel tubing (Using in.O.D. x 0.035 in. wall thickness, seamless stainless steel tubing is •...
  • Page 23 . CAUTION  Endress+Hauser gas analyzers are designed for operation within the specified ambient temperature range. Intense sun exposure in some areas may cause the gas analyzer temperature to exceed the maximum. 2. Locate the mounting holes on your unit. Refer to the system drawings in Appendix A: Specifications →...
  • Page 24 Installation SS2100a TDLAS gas analyzer Figure 10: Wiring assignments for terminal block (TV-TB1) in terminations junction box. Refer to Figure A-8 for more information. 1, 2. Hi Conc alarm 15.18. Spare 34. G2, 4-20 mA input shield 3, 4. General alarm 19, 20.
  • Page 25 SS2100a TDLAS gas analyzer Installation Terminal block (TB1) input/output signal connections (4–20 mA, serial, Ethernet) Terminal Description Service USB Converter Wire Color RS-232/RS-485 GND 4–20 mA CH A/B Shield GND 4–20 mA Input Shield GND Ethernet Shield RS-485 or TD B(+) Orange RS-485 or TD A(–)
  • Page 26 Installation SS2100a TDLAS gas analyzer Terminal block (TB1) input/output signal connections (alarm output, validation request) Terminal Description Spare Validation Request Input Flow SW Input Validation 2 Active Validation 1 Active Validation Fail Alarm General Fault Alarm High Concentration Alarm Endress+Hauser...
  • Page 27 SS2100a TDLAS gas analyzer Installation Output signal connections (two-wire RS-485 configuration) Time- (ms) (KΩ) RS-485 2-Wire Half Duplex 120 Ω Built-in Termination External or no Termination 1200 Baud 8.330 2400 Baud 4.160 4800 Baud 2.080 9600 Baud 1.040 19.2K Baud 0.580...
  • Page 28 Installation SS2100a TDLAS gas analyzer Output signal connections (two-wire RS-485 configuration) Time- (ms) (KΩ) RS-485 2-Wire Half Duplex 120 Ω Built-in Termination External or no Termination 1200 Baud 8.330 2400 Baud 4.160 4800 Baud 2.080 9600 Baud 1.040 19.2K Baud 0.580...
  • Page 29 SS2100a TDLAS gas analyzer Installation Connecting Electrical Power to the Analyzer Depending on your configuration, the analyzer will be configured for AC 120 or 230 V at 50/60 Hz single- phase input. Check the manufacturing data label or the terminal block labels to determine the power input requirements.
  • Page 30  The installer is responsible for complying with all local installation codes.  Certified glands and cables can be used where appropriate in compliance with local regulations. Endress+Hauser analyzers use a non-incendive protection method, and as such all portions of the local installation codes apply.
  • Page 31 SS2100a TDLAS gas analyzer Installation to gain access to the electronics panel. 3. Locate the 4–20 mA current loop board in the upper middle of the electronics panel, as shown in the figure. 4. Unscrew the screws holding the retaining bracket and remove the retaining bracket.
  • Page 32 Installation SS2100a TDLAS gas analyzer WARNING The process sample at the sample tap may be at a high pressure.  Use extreme caution when operating the sample probe isolation valve and field sample reducing pressure regulator.  Consult sample probe manufacturer instructions for proper installation procedures.
  • Page 33 7 micron particulate filter and a membrane separator that removes entrained liquids or particles from the natural gas stream before they enter the analyzer. Because Endress+Hauser’ analyzers are immune to vapor phase contaminants found in natural gas, using the particulate filter and membrane separator prevents contamination of the analyzer.
  • Page 34 Sample Conditioning System SS2100a TDLAS gas analyzer Checking the SCS Installation The integral SCS is factory set with the appropriate pressures, flow rates, and enclosure temperature, as indicated in the system drawings. However, before operating the system for the first time, a careful check of the installation of the entire SCS from the sample probe to the flare/vent is recommended.
  • Page 35 SS2100a TDLAS gas analyzer Sample Conditioning System 4. Confirm that the sample probe isolation valve is closed. 5. Confirm that the pressure regulator at the field pressure reducing station is closed (adjustment knob turned fully counterclockwise). 6. Confirm that all sample system shut-off valves are closed.
  • Page 36 Sample Conditioning System SS2100a TDLAS gas analyzer CAUTION  Make sure that no liquid, solids are flowing through the bypass valve by viewing the flow meter. If substances are present, shut down the system and purge the lines. CAUTION There may be a difference between the pressure readings at the sample tap and inside the SCS due to the pressure drop in the sample transport line under flowing conditions.
  • Page 37 SS2100a TDLAS gas analyzer Sample Conditioning System WARNING The process sample at the sample tap is at a high pressure.  A pressure reducing regulator is located at the sample tap to reduce the sample pressure and enable operation of the SCS at a low pressure.
  • Page 38 Sample Conditioning System SS2100a TDLAS gas analyzer 8. Turn off power to the gas analyzer. If the system will not be out of service for an extended period, it is advised that power remain applied to the sample transport line electric tracer, if applicable, and the sample system enclosure heater.
  • Page 39 SS2100a TDLAS gas analyzer Sample Conditioning System 3. Disconnect the sample tubing at the inlet to the analyzer. 4. Connect clean, dry nitrogen to the sample inlet and set to 30 PSIG. 5. Open the low pressure flare or atmospheric vent header shut-off valve for the effluent from the sample bypass.
  • Page 40 Appendix A: Specifications SS2100a TDLAS gas analyzer 7 Appendix A: Specifications Performance Concentration Refer to Calibration Certificate Repeatability Refer to Calibration Certificate Response Time Display updates vary from 4 to 16 seconds Application Data –20 °C to 50 °C (–4 °F to 122° F) - Standard Environmental Temperature Range –10 °C to 60 °C - Optional...
  • Page 41 SS2100a TDLAS gas analyzer Appendix A: Specifications 120 or 240 VAC, 50/60 Hz - Standard Input Power (Sample Cabinet) 100W or 200W max for heated systems Isolated Analog channels, 1200 ohms at DC 24 V max Outputs: (2) 4–20 mA (measurement value) Analog Communication Inputs: (1) 4–20 mA (pipeline pressure)
  • Page 42 Appendix A: Specifications SS2100a TDLAS gas analyzer 427 (16 765 (30 25(1) 342 (13 724 (28 ) x1 1829 (72) (36) 102(4) 25(1) Figure 13: Outline dimensions and mounting for the SS2100a. Dimensions: mm (in) Endress+Hauser...
  • Page 43 SS2100a TDLAS gas analyzer Appendix A: Specifications Figure 14: Sample system schematic for the SS2100a (fixed mount, non-validation, conventional)
  • Page 44 Appendix A: Specifications SS2100a TDLAS gas analyzer Figure 15: Sample system schematic bill of materials for the SS2100a (fixed mount, non-validation, conventional)
  • Page 45 Appendix A: Specifications SS2100a TDLAS gas analyzer Figure 16: Sample system schematic (solenoid valve differential) for the SS2100a (fixed mount, non-validation, conventional) Endress+Hauser...
  • Page 46 Appendix A: Specifications SS2100a TDLAS gas analyzer Figure 17: Sample system schematic (1-pt solenoid valve validation option/air-actuated valve differential option) for the SS2100a (fixed mount, non-validation, conventional)
  • Page 47 SS2100a TDLAS gas analyzer Appendix A: Specifications Figure 18: Sample system schematic (1-pt air-actuated valve validation option/liquid knock-out option) for the SS2100a (fixed mount, non-validation, conventional)
  • Page 48 Appendix A: Specifications SS2100a TDLAS gas analyzer Figure 19: Sample system schematic (high H S purge option) for the SS2100a (fixed mount, non-validation, conventional) Endress+Hauser...
  • Page 49 SS2100a TDLAS gas analyzer Appendix A: Specifications Figure 20: Power and signal wiring for the SS2100a (fixed mount, non-validation, conventional)
  • Page 50 Appendix A: Specifications SS2100a TDLAS gas analyzer Figure 21: Power and signal wiring (solenoid-actuated valve differential) for the SS2100a (fixed mount, non-validation, conventional) Endress+Hauser...
  • Page 51 Appendix A: Specifications SS2100a TDLAS gas analyzer Figure 22: Power and signal wiring (solenoid, air-actuated options) for the SS2100a (fixed mount, non-validation, conventional)
  • Page 52 Appendix A: Specifications SS2100a TDLAS gas analyzer Figure 23: Electronics schematic, 120/240 VAC (to JB#2) Endress+Hauser...
  • Page 53 SS2100a TDLAS gas analyzer Appendix A: Specifications Figure 24: Electronics schematic, JB#1 (TB1) to PCB daughter board...
  • Page 54 Appendix A: Specifications SS2100a TDLAS gas analyzer Figure 25: Electronics schematic, JB#1 (TB1) to J1, J11 on backplane Endress+Hauser...
  • Page 55 SS2100a TDLAS gas analyzer Appendix A: Specifications Figure 26: Electronics schematic, 4-20 mA and serial connections...
  • Page 56 Appendix A: Specifications SS2100a TDLAS gas analyzer Figure 27: Electronics schematic, keypad, LCD connections Endress+Hauser...
  • Page 57 Appendix A: Specifications SS2100a TDLAS gas analyzer Figure 28: Electronics schematic, temperature controller connections Endress+Hauser...
  • Page 58 Appendix B: Diagnostics and Troubleshooting SS2100a TDLAS gas analyzer 8 Appendix B: Diagnostics and Troubleshooting This section presents recommendations and solutions to common problems, such as gas leaks, contamination, excessive sampling gas temperatures and pressures, and electrical noise. If your gas analyzer is experiencing issues not related to the above mentioned problems, refer to Service →.
  • Page 59 Refer to the Operator’s Instructions for procedures on shutting down the analyzer. CAUTION During a temporary shutdown, Endress+Hauser recommends removing the permeation device to prevent fouling of the measurement cell mirror. Removing the permeation device 1. Open the SCS door and block in the sample flow using the diaphragm valve upstream of the dryer.
  • Page 60 Appendix B: Diagnostics and Troubleshooting SS2100a TDLAS gas analyzer Peak Tracking Reset Procedure The analyzer’s so�ware is equipped with a peak tracking function that keeps the laser scan centered on the absorption peak. Under some circumstances, the peak tracking function can get lost and lock onto the wrong peak.
  • Page 61 SS2100a TDLAS gas analyzer A0054933 Figure 29: Measurement cell types, left to right: 0.1 m cell, 0.8 m cell, 8m or 28 m cell The stainless steel mirrors are used with 0.1 m and 0.8 m measurement cells only. To determine the type of mirror being used for the system cell, feel at the bottom of the cell for the engraved “X”...
  • Page 62 Appendix B: Diagnostics and Troubleshooting SS2100a TDLAS gas analyzer 8.8.2 To clean the mirrors 1. Power down the analyzer following the procedure outlined in Powering Down the Analyzer in the Device Parameters for this analyzer. WARNING The sample cell assembly contains a low-power, 20 mW MAX, CW Class 3B invisible laser with a wavelength between 800 to 3000 nm.
  • Page 63 SS2100a TDLAS gas analyzer Replacing the Stainless Steel Mirror To replace the stainless steel mirror If your system has been configured with a stainless steel mirror in the 0.1 m or 0.8 m measurement cell, use the following instructions for replacing the mirror. The part number for the replacement mirror can be found in Replacement Parts →...
  • Page 64 Appendix B: Diagnostics and Troubleshooting SS2100a TDLAS gas analyzer a. Check if there are any contaminants or discoloring of the white membrane. If yes, the filter can be replaced. b. Remove the O-Ring and replace the membrane filter. c. Replace the O-Ring on top of the membrane filter.
  • Page 65 SS2100a TDLAS gas analyzer 8. Place the filter cap back into position and tighten. 9. Place the filter unit into the analyzer and tighten the base with the four screws. 10. Check upstream of membrane for liquid contamination and clean and dry out before opening the sample supply valve.
  • Page 66 Appendix B: Diagnostics and Troubleshooting SS2100a TDLAS gas analyzer Figure 31: SCS cabinet interior Description Cell inlet Thermistor cable Cell outlet Mounting bracket Optical cable harness Pressure sensor/cable Mounting bracket 6. Remove the optical cable harness using a flat-head screwdriver.
  • Page 67 SS2100a TDLAS gas analyzer 11. Remove the cell from the bracket by removing the four securing screws (two on top, two on the bottom) using a 9/64 in. hex key. Place the measurement cell on a clean, flat surface with the pressure sensor facing up.
  • Page 68 Appendix B: Diagnostics and Troubleshooting SS2100a TDLAS gas analyzer A0054938 Figure 34: Removing excess seal tape from flange CAUTION  Tip the measurement cell forward so that any loose debris falls to the flat surface and not back inside the cell.
  • Page 69 SS2100a TDLAS gas analyzer A0054 Figure 36: Replacing seal tape 18. Holding the cell steady, insert the new pressure sensor into the threaded opening. Refer to Figure B– A0054942 Figure 37: Replacing the pressure sensor 19. Hand tighten the pressure sensor clockwise into the opening until no longer moving freely.
  • Page 70 Appendix B: Diagnostics and Troubleshooting SS2100a TDLAS gas analyzer 22. Connect the new harness/cable to the new pressure sensor. 23. Remount the cell to the mounting brackets using a 9/64 in. hex key with the pressure sensor facing out towards the cabinet door.
  • Page 71 SS2100a TDLAS gas analyzer A0054943 Figure 39: Removed 0.8m measurement cell with pressure sensor face up NOTICE  Orient the measurement cell to avoid any debris from entering the cell. 2. Using a 9/16 in. wrench, secure the flange while using a 7/8 in. wrench to remove the old pressure sensor.
  • Page 72 Appendix B: Diagnostics and Troubleshooting SS2100a TDLAS gas analyzer CAUTION Threads showing signs of galling indicate a possible leak.  Refer to Service →  to arrange for a repair. 4. Remove the new pressure sensor from the packaging. Retain the black connector cap on the sensor - do not remove.
  • Page 73 SS2100a TDLAS gas analyzer A0054947 Figure 44: Newly installed pressure sensor positioning 6. Remove the black connector from the pressure sensor and discard. 7. Connect the new harness/cable to the new pressure sensor. If the new model pressure sensor cable is currently installed in the SCS, reattach the cable to the pressure sensor a�er the cell has been remounted and disregard step 11.
  • Page 74 NOTICE Opening the door may affect the temperature reading until the temperature is stabilized.  Do not leave the SCS door open any longer than absolutely necessary. Endress+Hauser recommends no more than 60 seconds.  For additional information, refer Service → .
  • Page 75 S flows through the scrubber (gas composition) and how o�en (switching frequency). Thus, scrubber lifetime is very application specific. Endress+Hauser SS2100 analyzers predict the remaining scrubber capacity by using the actual H concentration measurements and dry cycle durations to calculate how much cumulative H S has been removed by the scrubber.
  • Page 76 Appendix B: Diagnostics and Troubleshooting SS2100a TDLAS gas analyzer Figure 46: Scrubber and scrubber efficiency indicator NOTICE When specifying gas standards, indicate H2S in methane balance. For a measured range of 0 to 20 ppm, a concentration of 4 to 16 ppm is recommended.
  • Page 77 SS2100a TDLAS gas analyzer 7. Restart the SCS. 8. Check all connections for gas leaks. Using a liquid leak detector is recommended. 9. Re-validate the system with an appropriate gas standard following the instructions under “Validating the Analyzer” in the Device Parameters for your analyzer.
  • Page 78 Appendix B: Diagnostics and Troubleshooting SS2100a TDLAS gas analyzer 8.19 Instrument Troubleshooting If the instrument does not appear to be hampered by issued described earlier in this section, refer to the table before contacting Service → . Symptom Response Non-Operation (at start up)
  • Page 79 SS2100a TDLAS gas analyzer Temp Low Alarm or Temp High Alarm Check that the actual temperature in the fault measurement cell is within specification (the table). For systems with a heated enclosure, check that the temperature in the measurement cell is within ± 5 °C of the specified enclosure temperature.
  • Page 80 Appendix B: Diagnostics and Troubleshooting SS2100a TDLAS gas analyzer Not getting enough flow to the sample cell Check both the micro filter and membrane separator for contamination. Replace if necessary. Refer to "Replacing the Membrane Separator" or Replacing the Filter → .
  • Page 81 Check connections on keypad cable. specified effect Reading seems to always be high by a fixed Capture diagnostic data and send the file to Endress+Hauser (see “To read diagnostic data percentage with HyperTerminal” in the Device Parameters for this analyzer).
  • Page 82 Make sure the connections are good. Verify the correct pin connections with an ohmmeter. Reading seems to always be high by a fixed Capture diagnostic data and send the file to Endress+Hauser (see “To read diagnostic data amount with HyperTerminal” in the Device Parameters for this analyzer).
  • Page 83 Access to the information above will greatly expedite our response to your technical request. 8.21 Packing Endress+Hauser analyzer systems and auxiliary equipment are shipped from the factory in appropriate packaging. Depending on the size and weight, the packaging may consist of a cardboard-skinned container or a wooden crate.
  • Page 84 For a period of 18 months from date of shipment or 12 months in operation, whichever comes first, Endress+Hauser warrants that all products sold by it must be free from defects in material and workmanship under normal use and service when correctly installed and maintained. Endress+Hauser’...
  • Page 85 SS2100a TDLAS gas analyzer 9 Appendix C: Replacement Parts This section provides a list of replacement parts for the SS2100a analyzer electronics. Due to a policy of continuous improvement, parts and part numbers may change without notice. Not all parts listed in this manual are included on every analyzer.
  • Page 86 Appendix C: Replacement Parts SS2100a TDLAS gas analyzer Figure 47: Electronics power supply parts Fig. Ref. Part Number Description 70156988 Relay, w/ Socket, C1D2, 6A, DC 12 V, SPDT 70156936 Varistor, “ZNR” Transient/Surge Absorber 70156937 Circuit Breaker Double Pole, 2 AMP 250 Rated...
  • Page 87 SS2100a TDLAS gas analyzer Figure 48: Electronics assembly parts Fig. Ref. Part Number Description 70162332 Assembly, Temperature Control, Hytek, 28 Meter...
  • Page 88 Appendix C: Replacement Parts SS2100a TDLAS gas analyzer Figure 49: Electronics assembly parts Fig. Ref. Part Number Description 70162331 Assembly, PCBA, 4–20 mA, Dual Adj, Low Noise, RoHS 70162330 Assembly, PCBA, 4–20 mA Isolated Input, RoHS Endress+Hauser...
  • Page 89 SS2100a TDLAS gas analyzer Figure 50: Electronics assembly board replacement parts Fig. Ref. Part Number Description 70162329 PCBA, Daughter, Interface, Hybrid, RoHS 2900000420 PCBA, EAE-TDL, w/ Ethernet, Hybrid, RoHS...
  • Page 90 Appendix C: Replacement Parts SS2100a TDLAS gas analyzer Figure 51: Electronics assembly board replacement parts (continued) Fig. Ref. Part Number Description 70156697 Display, LCD, 20x4, Back-lit, 5 V, Serial 70156940 Keypad, Touch Sensitive, 16 keys Endress+Hauser...
  • Page 91 SS2100a TDLAS gas analyzer Figure 52: Keypad and display replacement parts Part Number Description Pressure Sensor 70162334 Pressure Sensor, 30 PSIA, 5 V, 1/8 in. NPT DIN4365, NACE 70156902 Cable, Pressure/Temperature, EXT, 32 in. Scrubber/Indicator 70156759 Kit, H S Scrubber/Indicator, 3 in. diameter...
  • Page 92 SS2100a Operating Instruction, additional copies GP01180C NS 5.14 Device Parameters, additional copies GP01177C FS 5.16 Device Parameters, additional copies Contact Endress+Hauser’s Service department before attempting replacement. Replacing this component without technical support could cause damage to other components. Refer to Service → . Endress+Hauser...
  • Page 93 SS2100a TDLAS gas analyzer 10 Index Absorption profile, 14 Isopropyl alcohol, 60, 62 Acetone, 58 Laser beam, 12 Acetone-impenetrable gloves, 60, 62, 63, 65, 70 Laser output fluctuations, 14 Alarms Leak detector, 32 General Fault Alarm, 76, 77 Leaks Attenuation, 13...
  • Page 94 Index SS2100a TDLAS gas analyzer Electric tracer, 35 Metering, 35, 36, 38 Tools Relief, 34, 35, 37, 38 Installation tools, 22 Sample probe isolation, 35 Tools and supplies Sample supply hut-off, 38 Mirror Cleaning, 60 Shut-off, 35, 36, 37, 38...
  • Page 95 SS2100a TDLAS gas analyzer www.addresses.endress.com...
