Specifications - GENZLER ACOUSTIC ARRAY MINI Owner's Manual

SPEAKER SYSTEM DESIGN – The heart of the ACOUSTIC
MINI design is the combination of an 8" woofer in a ported
®
ARRAY
chamber and an integrated 4 x 1.5" neodymium soft-dome line array
placed directly in front of the woofer. This allows all of the audio to
project from a single point source for a more even and seamless
projection of all frequencies. The response benefits of this design
are unparalleled clarity, definition and detail, ideal for the complexity
of the chords and tonal variations of acoustic instruments.
Additionally, because of the characteristics of the array column, the
mid and high frequency clarity is even, articulate and smooth –
without excessive hiss or harshness. Other major benefits of this
design are increased horizontal dispersion, more precise vertical
pattern control and deeper projection into the performance space.

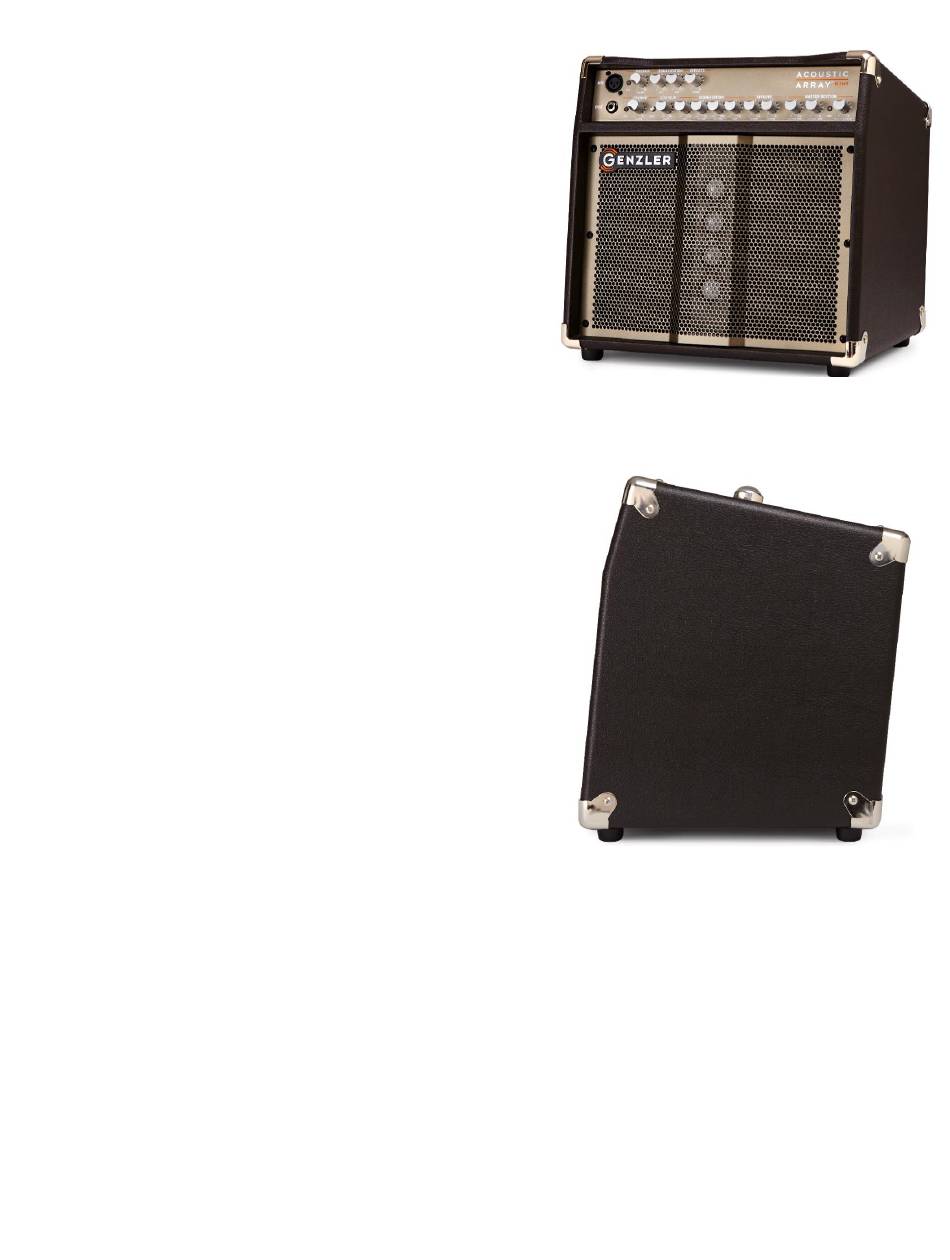

CABINET DESIGN – The ACOUSTIC ARRAY
cabinet shape that uses a 6-degree upward slant of the speaker baffle
for optimum projection and affords easy access to the control panel.
This cabinet shape is ideal for tight stages and provides superior
audience coverage. The cabinet is constructed of multi-layer poplar
plywood covered in an attractive dark brown/black vinyl and comes
with nickel corners and a soft molded strap handle. A metal speaker
grille is used with a center "pleat" to protect the line array speakers,
and soft rubber feet round out the lower portion of the cabinet.

SPECIFICATIONS:

®
ACOUSTIC ARRAY MINI
Rated Power: 100 watts @ 4 ohms
Speaker System Freq. Response: 65 - 20KHz
Dimensions: 14.5" H x 14.5" W x 12" D
Weight: 21 lbs
Product Type:
Product Name:
Model Number:
Operating Power Condition:
Effective Date:
®
MINI offers a unique
Audio Amplifier
®
ACOUSTIC ARRAY MINI
AA-MINI (all versions)
100~240V, 50/60 Hz
12/1/2018
5
