FEATURES:
• Ultra Lightweight 27lb Compact Design
• 10" Woofer w/4 x 2.5" Cone-driver Line Array
• XLR Mic and ¼" Instrument Inputs
• Phantom Power for Condenser Mics
• Signal Phase Reverse Switch
• Bottom Speaker Stand Mount

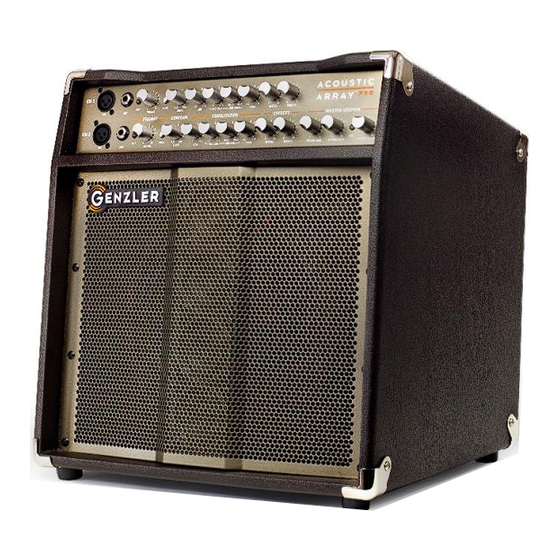

PRODUCT DESCRIPTION – The ACOUSTIC ARRAY™ PRO represents the next generation in professional acoustic
instrument amplification. The innovative speaker system features a 10" woofer and integrated 4 x 2.5" cone-driver line
array element which delivers smoothness, clarity, dynamics and dispersion like no other acoustic amplifier available. This
array system design reproduces the natural tone of the acoustic stringed instrument and greatly increases the horizontal
dispersion and projection, providing even response across the performance area. The electronics feature our dual
channel preamp design, light-weight Class D power section, and a full featured rear panel interface. All together the
ACOUSTIC ARRAY™ PRO offers the most pure and natural reproduction of the acoustic instrument along with ease and
versatility in set up and performance.

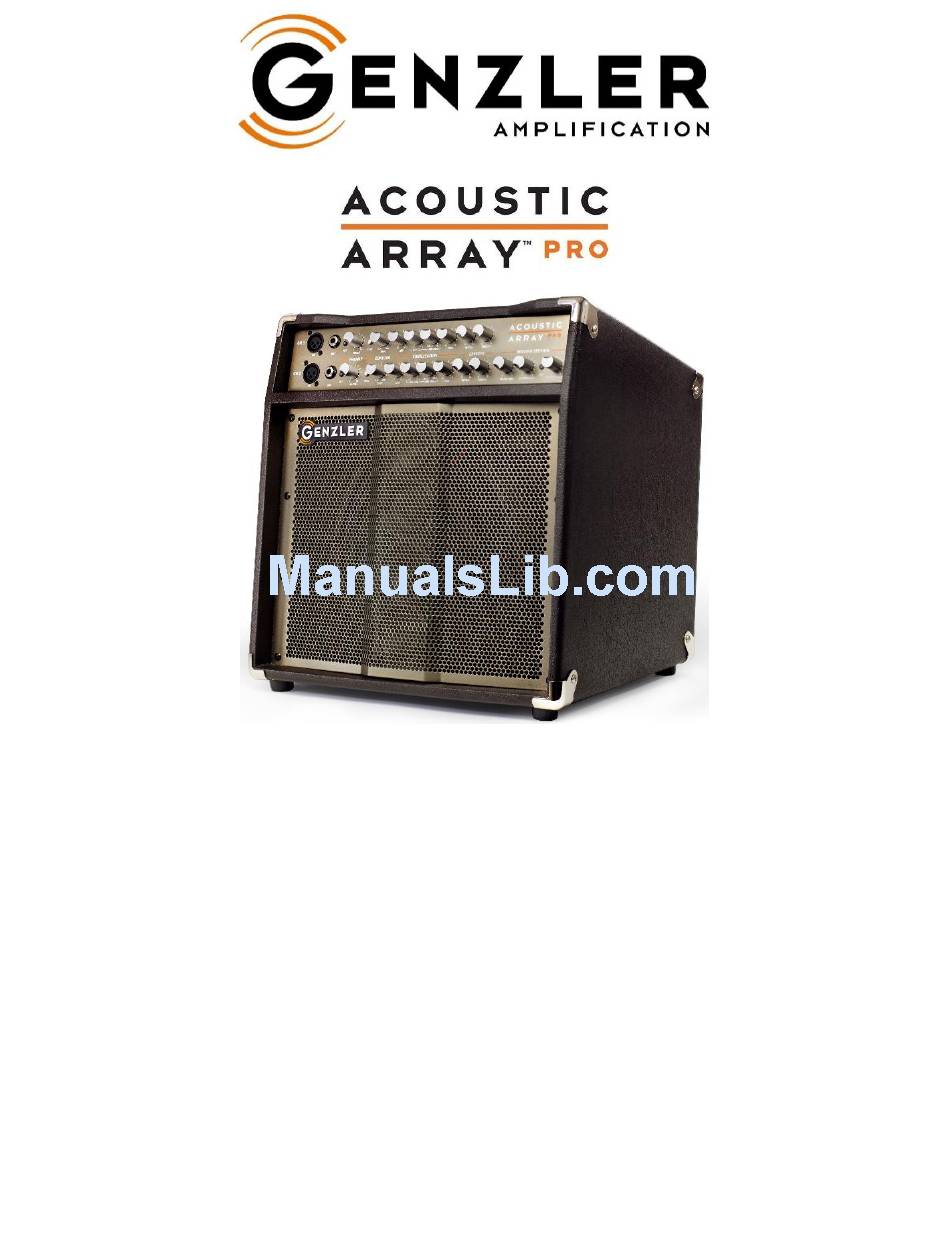

OWNER'S MANUAL
• Innovative Acoustic Array™ Speaker System
• Slanted Cabinet Design for Improved Projection
• Two Identical Preamp Channels w/Active EQ & Sweepable Mids
• Unique Contour Circuit for Quick Tonal Adjustments
• Adjustable Digital Reverb and Chorus on each Channel
1
Advertisement
Summary of Contents for GENZLER ACOUSTIC ARRAY PRO
- Page 1 OWNER’S MANUAL FEATURES: • Ultra Lightweight 27lb Compact Design • Innovative Acoustic Array™ Speaker System • 10” Woofer w/4 x 2.5” Cone-driver Line Array • Slanted Cabinet Design for Improved Projection • XLR Mic and ¼” Instrument Inputs • Two Identical Preamp Channels w/Active EQ & Sweepable Mids •...
-
Page 2: Front Panel
FRONT PANEL he ACOUSTIC ARRAY™ PRO offers a full featured preamp design with 2 identical channels. MIC INPUT – This jack is a balanced XLR microphone level input which contains an “RFI” filter (radio frequency interference) to eliminate unwanted noise. It also provides IEC P12(L) phantom power (12 volt) which works well with most microphones found in the live sound industry. -
Page 3: Master Section
CONTOUR – Our unique CONTOUR circuit offers a continuously variable pre-shaped curve that boosts lows and highs while simultaneously cutting mid frequencies. The slope is fairly gentle which keeps the tone shaping very musical. This curve covers a wide frequency range and can be used by itself or in conjunction with the EQUALIZATION controls. When the SHAPE control is all the way off (CCW) the CONTOUR response curve is completely FLAT. -
Page 4: Rear Panel
REAR PANEL DIRECT OUTPUTS – Three XLR balanced DIRECT OUTPUTS are provided for connection to PA systems, recording interfaces, or external power amplifiers. CHAN 1 and CHAN 2 outputs are post-channel volume/pre-EQ/pre-effects (to take advantage of the dual inputs on each channel) while the CHAN 1+2 output is pre-master volume/post-EQ/post- effects to aid in sending out a “finished”... - Page 5 POWER AMPLIFIER – The ACOUSTIC ARRAY™ PRO uses a state of the art, class D power amplifier design and a high frequency auto-sensing universal switch-mode power supply (SMPS) to achieve unprecedented high performance and lightweight packaging. For international use there are no voltage switches to change or jumpers to move. This SMPS senses the line voltage from 100-240 Volts and automatically configures itself for the correct voltage.
-
Page 6: Specifications
SPEAKER STAND MOUNTABLE – The cabinet design offers a 35mm metal stand-mount socket in the bottom of the cabinet for stable mounting to a speaker stand and extends the usability of the ACOUSTIC ARRAY™ PRO as an acoustic PA. For many performance venues this helps to get the projection of the speaker system above the heads of the audience. - Page 7 ® ® workmanship for a period of 3 years from the date of purchase, when purchased from an authorized GENZLER AMPLIFICATION dealer. • This warranty does not cover normal wear and tear incurred from the normal designed use of the product.
