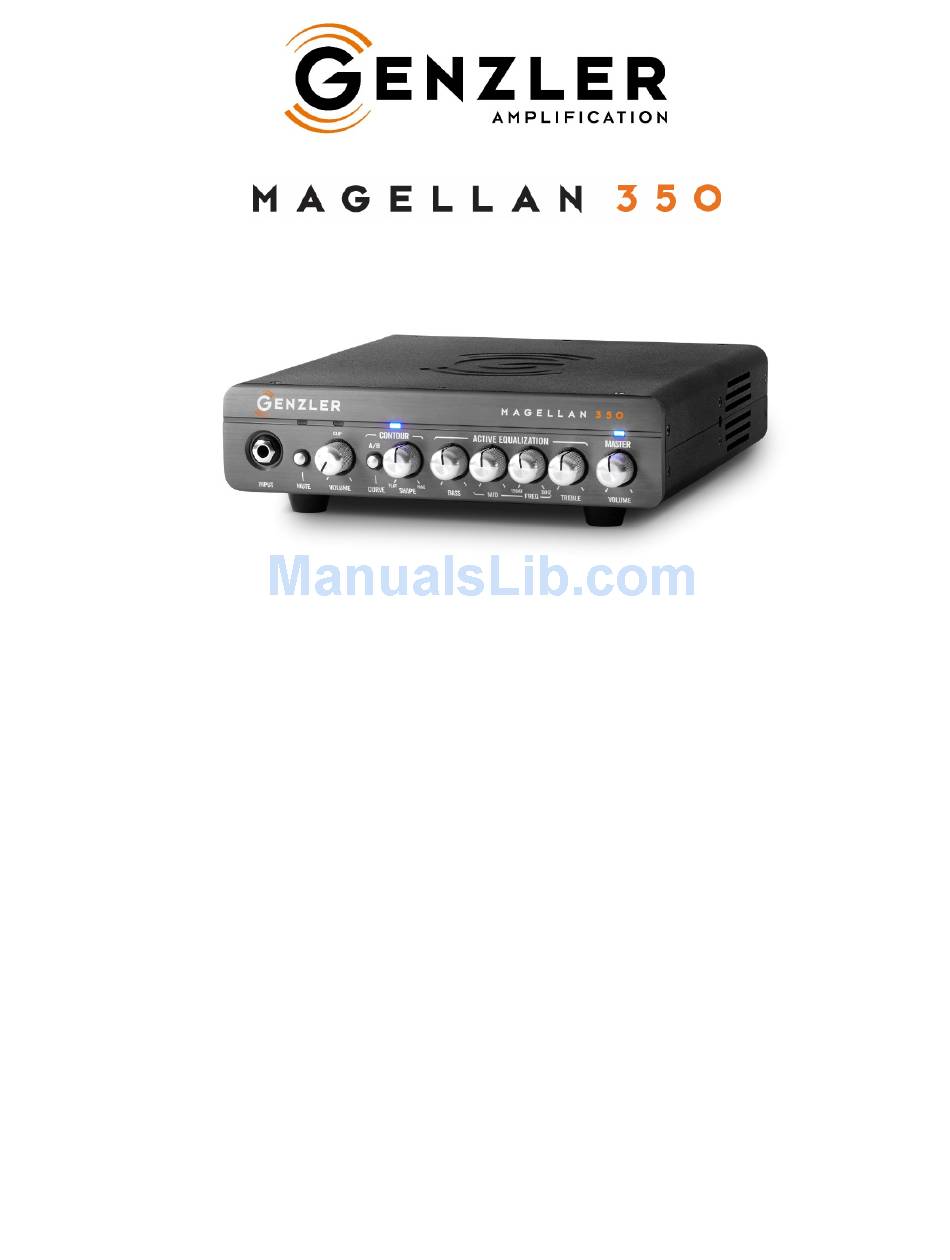

ULTRA LIGHTWEIGHT 350 WATT BASS AMPLIFIER
OWNER'S MANUAL

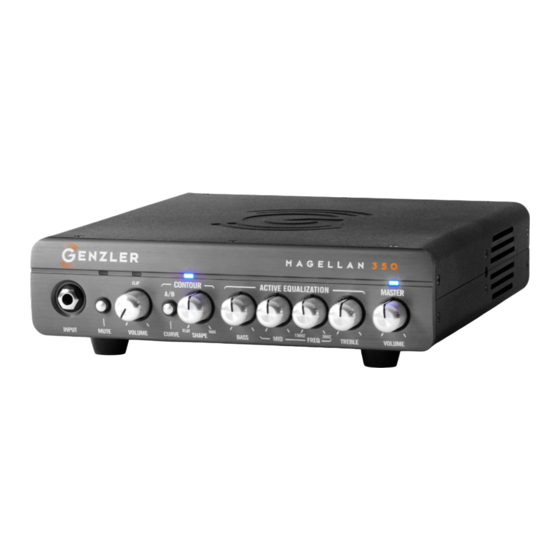

PRODUCT DESCRIPTION – The MAGELLAN
350 represents the latest generation in lightweight, high-output, versatile
®
bass amplification. With our years of research, design and manufacturing expertise, we developed this model utilizing
stringent design parameters for form, function, fit and finish. The result is a 350 watt professional high-powered tour-class
bass guitar amplifier weighing only 3.5 lbs!
Our circuitry and mechanical designs within the MAGELLAN
350 deliver the most powerful, feature-laden, compact bass
®
amplifier available in its class. This is exactly what players have come to expect from the GENZLER
design team --
®
performance, versatility and reliability. From natural, pristine, transparent reproduction of the bass instrument to classic,
vintage harmonic textures, the MG-350 provides the tonal pallet needed to cover all of the bassist's amplifier
requirements. All of which is housed in an aircraft-grade, aluminum chassis with a sleek custom extruded front panel.
The MAGELLAN
350 is equipped with a ¼" unbalanced instrument input, preamp stage clip detector, mute switch,
®
preamp volume, dual curve CONTOUR network, 3 band active equalization with sweepable midrange frequency, master
volume control, soft-clip power management circuitry, aux. input, balanced direct out with ground lift/pre-post/mic-line
switches, head phone output, and 2 Neutrik NL-4 "Speak-On"™ speaker jacks.
The power amp is a robust, lightweight Class D design and is supported by a state-of-the-art high frequency switch-mode
power supply (SMPS), which does away with the weight of a traditional power transformer. The MAGELLAN'S
power
®
supply is an auto-sensing universal power supply usable from 100-240 volts, lending itself very well to international touring
players.
1
Advertisement
Summary of Contents for GENZLER Magellan 350
- Page 1 Our circuitry and mechanical designs within the MAGELLAN 350 deliver the most powerful, feature-laden, compact bass ® amplifier available in its class. This is exactly what players have come to expect from the GENZLER design team -- ® performance, versatility and reliability. From natural, pristine, transparent reproduction of the bass instrument to classic, vintage harmonic textures, the MG-350 provides the tonal pallet needed to cover all of the bassist’s amplifier...
-
Page 2: Front Panel
FRONT PANEL INPUT – The MAGELLAN 350 is equipped with a standard ¼” unbalanced input. The input stage contains an FET input ® amp circuit with an input impedance of 1Meg ohms, a precision high order active high pass filter, and an “RFI” filter (radio frequency interference) to eliminate unwanted noise. -
Page 3: Rear Panel
MASTER SECTION STATUS LED -- BLUE -- Indicates that the low voltage power supplies are active and that the amplifier is ON and ready to operate. RED -- Indicates that the amp is in either “standby” or “protect” mode. The RED light will illuminate during power turn-on and turn-off to indicate “standby”... - Page 4 IMPEDANCE SELECTOR SWITCH -- The design of the MAGELLAN 350 incorporates a robust power section along ® with exceptional thermal management allowing for operation down to 2.67 ohms. This gives greater versatility when connecting different speaker cabinet configurations. Set this switch as follows: IMPEDANCE OPTIONS •...
-
Page 5: Specifications
MG350-CRADLE Attaches to the top of the BA10-2 bass cabinet using the pre-drilled mounting screws installed in every cabinet. This allows for the attachment of the MG-350 amplifier. Each CRADLE comes with two thumb screws and a short Speakon® cable. The MG-350 and CRADLE can also be attached to other cabinets using regular wood screws. -
Page 6: Warranty
350 to be free from defects in materials and ® ® workmanship for a period of 3 years from the date of purchase, when purchased from an authorized GENZLER ® AMPLIFICATION dealer. • This warranty does not cover normal wear and tear incurred from the normal designed use of the product.
