FEATURES:
• Ultra Lightweight 21 lb Compact Design
• Innovative Acoustic Array
• 8" Woofer w/4 x 1.5" soft-dome Line Array
• Slanted Cabinet Design for Improved Projection
• Two Independent Preamp Channels w/Active EQ

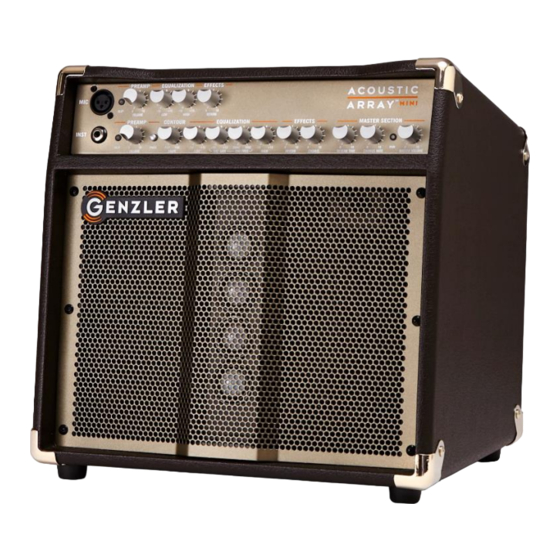

PRODUCT DESCRIPTION – The ACOUSTIC ARRAY
and the next generation in professional acoustic instrument amplification. The innovative speaker system features an 8"
woofer and integrated 4 x 1.5" soft-dome line array element which delivers smoothness, clarity, dynamics and dispersion
like no other acoustic amplifier available. This array system design reproduces the natural tone of the acoustic stringed
instrument and greatly increases the horizontal dispersion and projection, providing even response across the
performance area. The electronics feature our dual channel preamp design, light-weight Class D power section, and a
convenient set of rear panel interfaces. All together the ACOUSTIC ARRAY
reproduction of the acoustic instrument along with ease and versatility in set up and performance.

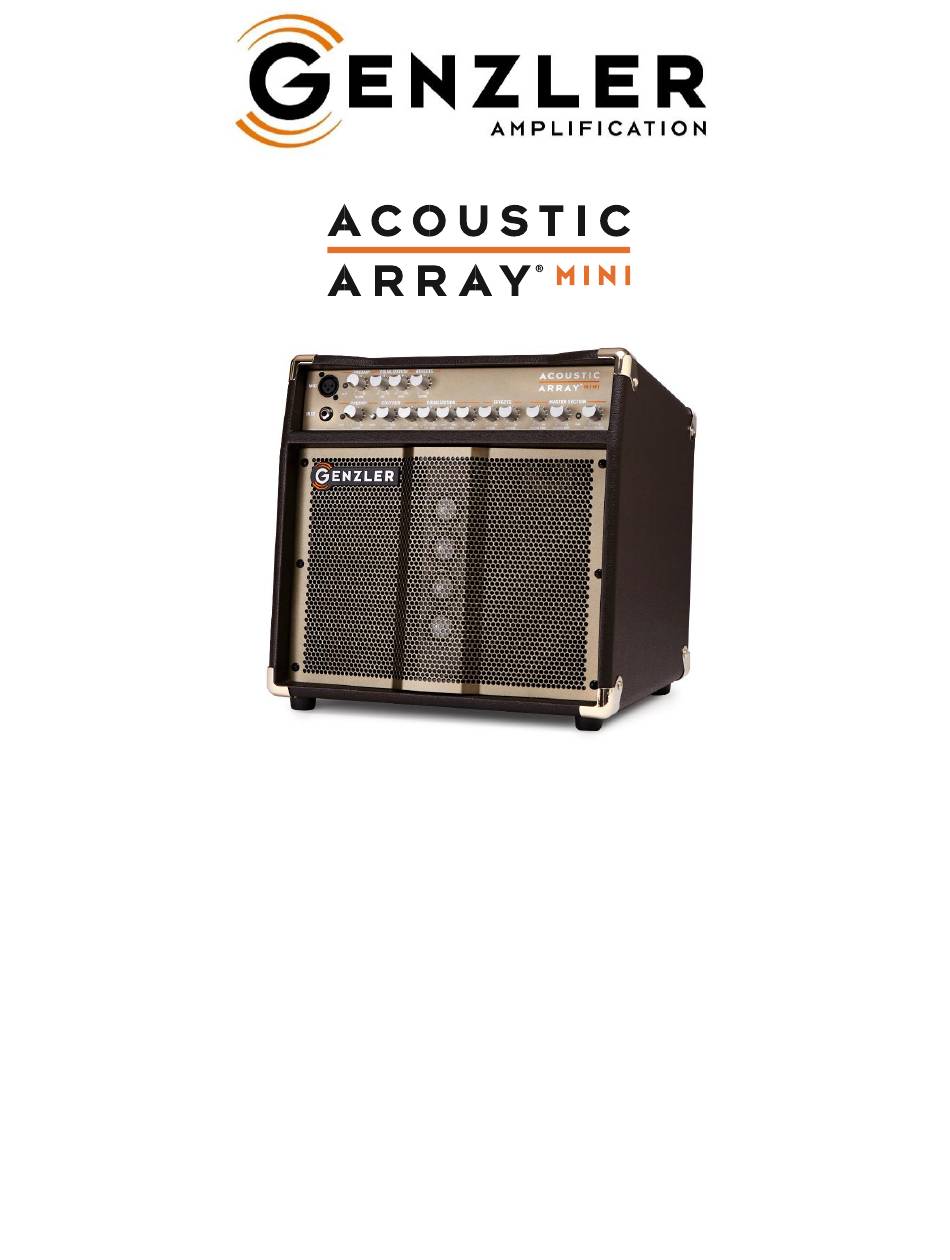

OWNER'S MANUAL
®
Speaker System
• XLR Mic and ¼" Instrument Inputs
• Phantom Power for Condenser Mics
• Signal Phase Reverse Switch
• Unique Contour Circuit for Quick Tonal Adjustments
• Adjustable Digital Reverb and Chorus
®
MINI represents an expansion of our Acoustic Array product line
®
MINI offers the most pure and natural
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GENZLER ACOUSTIC ARRAY MINI
Summary of Contents for GENZLER ACOUSTIC ARRAY MINI
- Page 1 OWNER’S MANUAL FEATURES: • Ultra Lightweight 21 lb Compact Design • XLR Mic and ¼” Instrument Inputs • Innovative Acoustic Array • Phantom Power for Condenser Mics ® Speaker System • 8” Woofer w/4 x 1.5” soft-dome Line Array • Signal Phase Reverse Switch •...
-
Page 2: Front Panel
FRONT PANEL ® The ACOUSTIC ARRAY MINI offers a full featured preamp design with 2 independent channels. MIC CHANNEL MIC INPUT – This jack is a balanced XLR microphone level input which contains an “RFI” filter (radio frequency interference) to eliminate unwanted noise. It also provides IEC P12(L) phantom power (12 volt) which works well with most phantom powered microphones found in the live sound industry. -
Page 3: Master Section
PREAMP VOLUME – This control sets the preamp’s input volume level for the INST input. PHASE SWITCH – This switch reverses the phase of the instrument’s signal. By reversing the phase, feedback can be reduced if caused by sympathetic vibrations between the speaker system and the instrument. Under some conditions, changing the phase can drastically improve the acoustic output from the amplifier and can improve the playability of the instrument. -
Page 4: Rear Panel
REAR PANEL DIRECT OUTPUT – An XLR balanced DIRECT OUTPUT is provided for connection to PA systems, recording interfaces, or external power amplifiers. Its output is the sum of both the MIC and INST channel signals and is pre-master volume/post-EQ’s/post-effects to aid in sending out a “finished” mixed signal. The DIRECT OUTPUT signal ground may be connected or lifted using the PIN 1 GND/LIFT switch. -
Page 5: Specifications
SPEAKER SYSTEM DESIGN – The heart of the ACOUSTIC MINI design is the combination of an 8” woofer in a ported ® ARRAY chamber and an integrated 4 x 1.5” neodymium soft-dome line array placed directly in front of the woofer. This allows all of the audio to project from a single point source for a more even and seamless projection of all frequencies. -
Page 6: Warranty
MINI to be free from defects in materials and ® workmanship for a period of 3 years from the date of purchase, when purchased from an authorized GENZLER AMPLIFICATION dealer. • This warranty does not cover normal wear and tear incurred from the normal designed use of the product.
