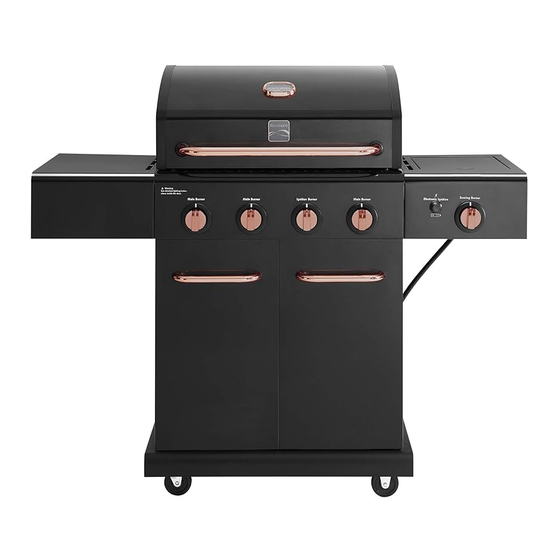

- Page 1 User & Care Guide Manual de Uso y Cuidado English / Español Liquid Propane Gas Grill Parrilla a gas de propano líquido Model/Modelo : PG-40409S0LB P/N 4 0 9 0 0 3 4 2 A...
-
Page 2: For Your Safety
Installation Safety Precautions DANGER • Please read this User’s Manual in its entirety before using the grill. • Failure to follow the provided instruction can result in If you smell gas: seriously bodily injury and / or property damage. 1. Shut off gas to the appliance. •... -
Page 3: Table Of Contents
Kenmore Grill Warranty ........ -
Page 4: Kenmore Grill Warranty
WARRANTY KENMORE LIMITED WARRANTY WITH PROOF OF SALE: the following warranty coverage applies when this appliance is correctly installed, operated and maintained according to all supplied instructions. Note: Consumer is responsible for Shipping & Handling of all warranty replacement parts. -
Page 5: Use And Care
LP Tank USE AND CARE • The LP tank used with your grill must meet the following requirements: DANGER • Use LP tank only with these required measurements: 12" (30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.) Capacity maximum. - Page 6 LP Tank Exchange Connecting Regulator to the LP Tank • Many propane retailers offer the option of replacing The LP tank must be properly secured onto the grill. (Refer to assembly section.) your empty LP tank through an exchange service. Only use reputable exchange companies that inspect, 2.
- Page 7 Leak Testing Valves, Hose and Regulator Turn all grill control knobs to OFF. 2. Be sure regulator is tightly connected to the LP tank. 3. Completely open the LP tank valve by turning the OPD hand wheel counterclockwise. If you hear a rushing sound, turn the gas off immediately.
- Page 8 Safety Tips WARNING ▲ Before opening the LP tank valve, check the coupling nut for tightness. ▲ When the grill is not in use, turn off all control knobs and LP tank valve. For Safe Use of Your Grill and to Avoid Serious ▲...
- Page 9 Burner Flame Check WARNING • Remove the cooking grates and heat diffusers. Light the burners and rotate the knobs from HIGH to LOW. You should see a smaller flame on the LOW setting and a higher flame on the HI Turn your controls, gas source or tank setting.
- Page 10 Storing Your Grill • Painted surfaces: Wash with a mild detergent or nonabrasive cleaner and warm soapy water. Wipe dry • Clean the cooking grates. with a soft nonabrasive cloth. • Store in dry location. • Stainless steel surfaces: To maintain your grill’s high- •...
- Page 11 Food Safety Food safety is a very important part of enjoying the outdoor cooking experience. To keep food safe from harmful bacteria, follow these four basic steps: • Clean: Wash hands, utensils, and surfaces with hot soapy water before and after handling raw meat and poultry. •...
-
Page 12: Parts List
PARTS LIST (1/2) Description Part Number Description Part Number Side Burner Lid 40200044 Regulator 40800115 Rotate Rod, Side Burner 40900221 Control Knob Bezel 40920036 Side Burner Grid 40900222 Control Knob, Main Burner 40900206 Control Knob, Searing Searing Burner 40900142 40900224 Burner (Copper Chrome) Searing Burner Wire 40900220... - Page 13 PARTS LIST (2/2) Description Part Number Description Part Number Cotter Pin 110050 Silicone Rubber Bumper 40700103 Cart Support Angle Bar 40900060 Silicone Rubber Bumper 50300205 Left Side Panel 40900119 Temperature Gauge 40900218 Back Panel 40900056 Logo 40800106 Match Holder 40800128 Rotate Rod, Lid 50300207 Match Holder Bracket...
-
Page 14: Parts Diagram
PARTS DIAGRAM... -
Page 15: Before Assembly
BEFORE ASSEMBLY NOTICE: Once you have unpacked the grill, check all grill parts against the pictures on page 15-17. If any parts are missing or damaged, call 1-888-287-0735. - Page 16 BEFORE ASSEMBLY...
- Page 17 BEFORE ASSEMBLY...
-
Page 18: Assembly
ASSEMBLY CAREFULLY READ AND PERFORM ALL ASSEMBLY INSTUCTIONS ON THE FOLLOWING PAGES. Tools Required: • Adjustable wrench (not provided) • Screwdriver (not provided) • The following hardware is provided in the blister pack for convenient use. M4 x 10 Screw AA Battery Qty: 36 pcs Qty: 1 pc... - Page 19 Bottom Shelf Turn the bottom shelf upside down. Attach the casters to the bottom shelf with (16) M6x13 screws. Note: Install each caster into the correct position as shown in the figure below. The standard caster (non-swiveling) will only install in one direction. ...
- Page 20 Cart To attach the side panels, align the side panel holes with the leg holes on each side of the bottom shelf. Note: Left side panel has the match holder attachment. Attach the left and right side panels to the sides of the bottom shelf with (4) M6x13 screws. (A) ...
- Page 21 Front Door Remove the (4) M5x15 screws pre-assembled from the door handle ends, and use them to attach the handles to the doors. (A) Insert the pin at the bottom of each door into the hole on the bottom panel. Insert the pin at the top of each door through the hole in the door bracket hinge.
- Page 22 Grill Head to Cart IMPORTANT: Remove the tie wraps and packing material from the regulator hose, searing burner valve and igniter wire. Pull the hose and igniter wire out to the right side of the grill head. This step requires two people to lift and to position the grill head onto the cart. ...
- Page 23 Left Side Shelf Attach the fascia to the left side shelf with (2) M5x10 screws and (2)M5 flat washers. (A) Attach the shelf support angle bar to the side shelf and fascia with (4) M4x10 screws. (B) Hang the left side shelf onto the brackets on left side of the firebox. (C) ...
- Page 24 Right Side Shelf Attach the fascia to the right side shelf with (2) M5x10 screws and (2)M5 flat washers. (A) Attach the shelf support angle bar to the side shelf and the fascia with (4) M4x10 screws. (B) ...
- Page 25 Searing Burner Remove the plastic packaging from the searing burner valve. Remove the searing burner grate from the searing burner shelf. Remove the 2 pre-installed screws from the valve control stem and set them aside. (A & B) ...
- Page 27 Heat Diffuser, Cooking Grates and Warming Rack Place the heat diffusers over the burners. Diffusers will fit in the firebox in either direction. Fit the tabs in the firebox's front end through the slots in the diffuser's tips. Fit the diffuser's tips in between the tabs in the firebox's rear end.
- Page 28 Drip Tray, Drip Cup and LP Tank Slide the drip tray into the bottom of the firebox from the back. (A) Hang the drip cup clip from the bottom of the drip tray. Make sure the drip drainage hole is on the right side, as seen from the back of the grill.
-
Page 29: Troubleshooting
EMERGENCIES: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department. Problem Possible Cause Prevention/Solution Gas leaking from • Damaged hose. • Turn off the gas from your LP tank or your natural gas system. cracked/cut/burned a If the hose is cracked or cut but not burned, simply replace the hose. - Page 30 Troubleshooting (continued) Problem Possible Cause Prevention/Solution Burner(s) will not light ELECTRONIC IGNITION: • See Section I of the Electronic Ignition System. using igniter. • No spark, no ignition noise. (Also view the • No spark, some ignition noise. • See Section II of the Electronic Ignition System. Electronic ignition •...
- Page 31 Troubleshooting – Electronic Ignition Problem Possible Cause Check Item Prevention/Solution SECTION I • The battery is not • Check that the battery • Install the battery, making sure that the No sparks appear installed properly. has the positive side positive end is facing outward, and the at any electrodes •...
