- Page 1 KS-02 OFFICE AND HOME AUDIO KIT N Instruction Manual...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Installation And Connection

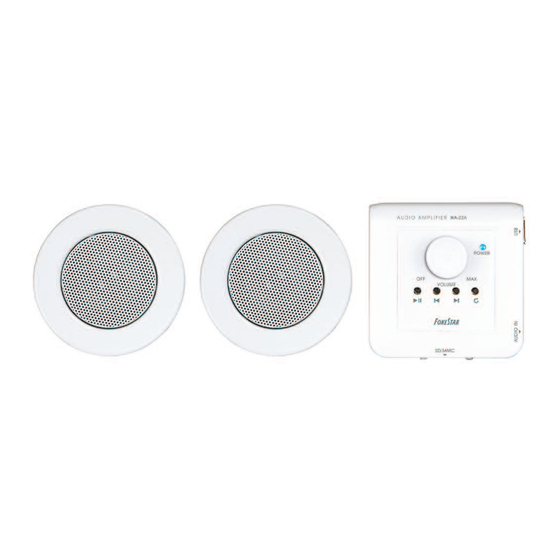

DESCRIPTION Easy to install integrated audio system for small P.A. systems or domestic applications. INSTALLATION AND CONNECTION ACCESSORIES INCLUDED 1.- Make two 55 mm Ø holes in the drop ceiling or plaster to install the speakers. It is recommended that they are positioned with approximately 2.5 or 3 metres between them. - Page 5 4.- Connect the other end of the cables to the amplifier speaker output. Each speaker is connected to a different channel (L left, R right), respecting the polarity. Connect the black cable with the white stripe to the + terminal and the black cable to the - terminal. Connect the aerial to the ANT terminal on the amplifier.
-
Page 6: Specifications
SPECIFICATIONS WA-22A CHARACTERISTICS Compact Hi-Fi stereo amplifier with surface box. USB/SD MP3 file player. Stereo speaker output. POWER 2 x 2 W RMS at 4 Ω 2 x 1 W RMS at 8 Ω INPUT 1 auxiliary, 3.5 mm stereo jack OUTPUT Speakers: 4-8 Ω, screw terminal blocks POWER SUPPLY... -
Page 7: Warranty
If any service is needed during the warranty period because of lack of conformity, please contact the business or distributor where the product was purchased in no more than 2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. - Page 8 - 8 -...
