NOTE: The camera has an open field RF operating range of up to 150m.

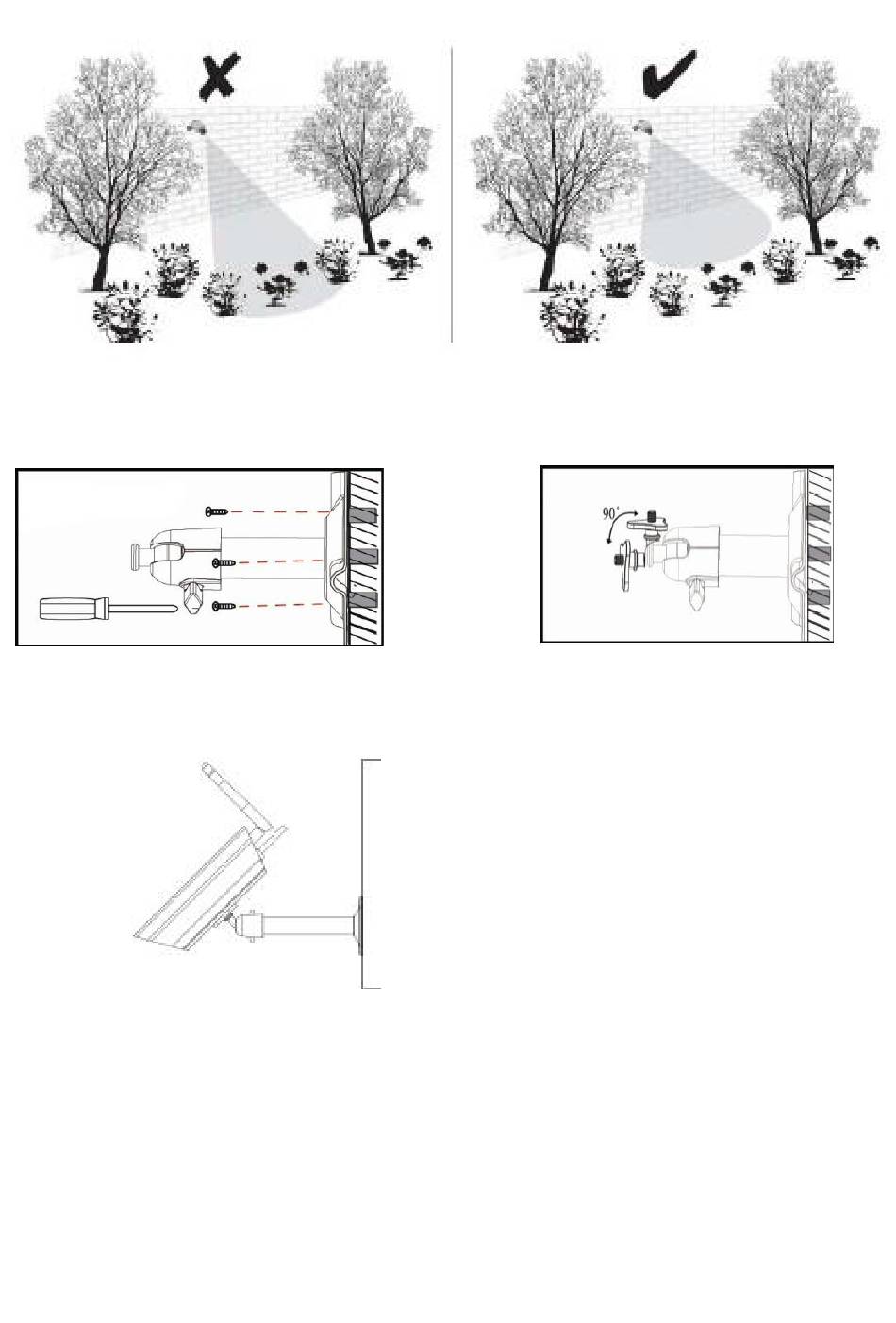

Secure camera stand on the stable surface

Setting the Camera Channel (optional)

The wireless camera is supplied preset to channel 1.
The monitor supports up to 4 cameras. Follow the steps below in Camera Setup section to
setup or change the monitor channel of the camera. If you are adding another camera to
link with the supplied monitor in this kit, then ensure its channel is set to a different
channel to the existing camera(s).
Loosen up the Thumb screw
Adjust proper view angle then secure
the joint with thumb screw.
8
