Walthers PROTO 2000 Series Instructions

PROTO 2000
HO F3A LOCOMOTIVE
with Sound & DCC
PARTS LIST
PART # KEY # DESCRIPTION
922-581800 ......... 1A .......... F3A body shell w/dynamic brakes, w/o steam generator & all
detail parts *
922-581801 ......... 1B .......... F3A body shell w/dynamic brakes, w/steam generator & all
detail parts *
922-581802 ......... 1C .......... F3A body shell w/o dynamic brakes, w/steam generator & all
detail parts *
922-581803 ......... 1D .......... F3A body shell w/o dynamic brakes, w/o steam generator &
all detail parts *
N/A ...................... * ............. All windows & lenses,pilots, handrails, grabirons & ladder
stand-offs, horns, antennas, etched grilles, and other external
and cab interior parts (enough to fully detail the body)
922-581610 ......... 2 ............. F7A frame, A-frame & screws (sound version)
922-581599 ......... 3B .......... F7A/B large & small PCB w/wires & screws (sound version)
without QSI chip
922-581600 ......... 4C .......... F7A LEDs & holder and screws (for w/o mars light) (sound
version)
922-581601 ......... 4D .......... F7A PCB w/LEDs, holder & screws (for w/mars light) (sound
version)
922-581576 ......... 5 ............. F7A/B universal joints & worm cover (1 set — enough for one
loco)
922-581579 ......... 6B .......... F7A/B motor w/single flywheel, motor mounts, screws, &
universal sockets (for version w/sound)
922-581580 ......... 7 ............. F7A/B fuel tank (2 styles), hanger brackets, pipes & screws
922-581581 ......... 8A .......... Proto Max couplers, complete (1 short shank & 1 standard
shank)
922-581583 ......... 9 ............. Blomberg truck w/gears, worm cover, sideframes & all
sideframe details (1 - assembled)
922-581584 ......... 10 ........... Blomberg sideframe set and all sideframe details (enough for
2 trucks)
922-581585 ......... 11 ........... Geared wheel set (40 in. scale wheels, helical gear &
bearings) (4)
922-581602 ......... 12 ........... F7A/B twin speakers w/wires & screws
N/A ...................... 13 ........... Sound chip (Contact Walthers at the phone number below
with the printed information from the label on the chip to obtain
information)
TO ORDER REPLACEMENT PARTS:

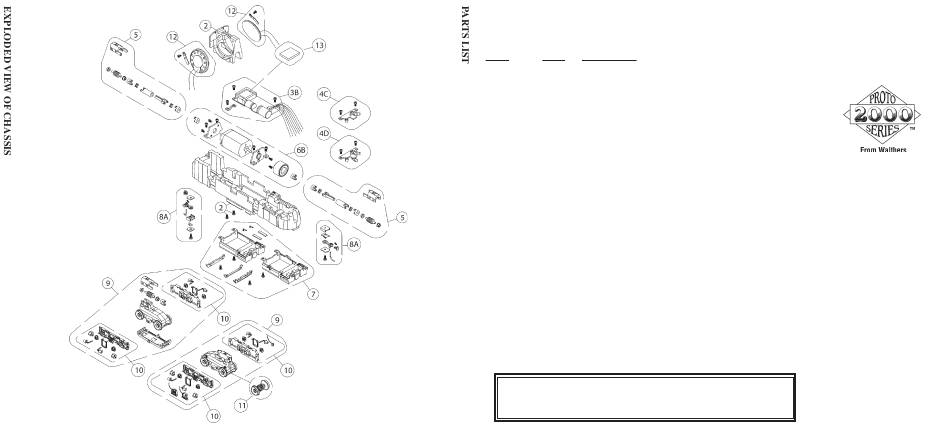

1. Identify parts in drawings on exploded views of chassis and body pages.
2. Locate part number above.
3. Contact Walthers at 1-800-487-2467 to place your order.
F3 A-Unit
Locomotive
(
with Sound & DCC)
!
CONGRATULATIONS
You have just purchased one of a
series of the finest running, most
detailed model locomotives available
today. It is equipped with a diecast
chassis and a totally redesigned
state of the art drive system that is
second to none. Your new PROTO
2000 HO Scale F3A diesel
locomotive has been carefully hand-
assembled and tested before leaving
our modern factory. Additionally, it
has been engineered to provide
virtually trouble-free service and
operation.
REMOVAL INSTRUCTIONS
• Carefully remove the locomotive from
its protective foam packaging.
• Remove the end protectors by
unscrewing the phillips head screws
on the bottom of the chassis at each
end.
• Using the screws you just removed,
align the couplers and coupler boxes
as shown in the exploded view and
tighten the screws to the chassis
• Important: Retain this package and all
packing materials in case you need to
ship locomotive for servicing.
